Triax - White F Type Socket

Item Code: 304254 - NM T W Fs

Brand: Triax

Manufacturer: Triax

Quick Reference links for Triax Euro module System.

Description

This euro module has 1 port of Satellite, and requires one coaxial feed cable. This module has the size name of `Half module` with a size of 25 x 50mm.

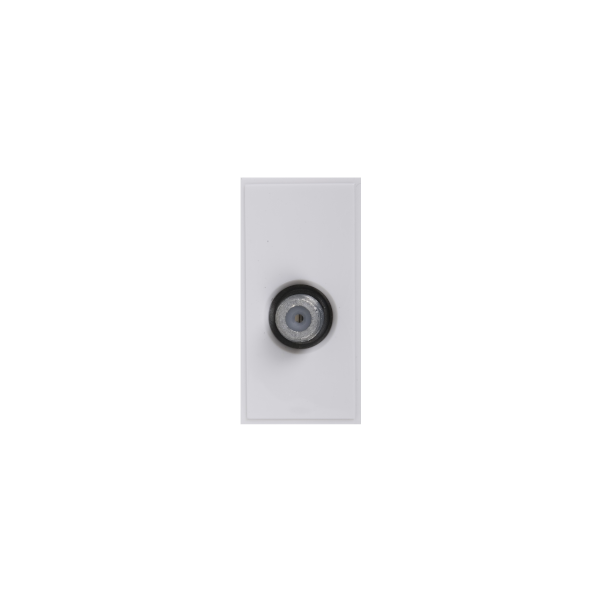

Single F Type Female Socket White Module (25 x 50mm)

Specifications

ORDER INFORMATION
EAN Number	5702663042544
FREQUENCY
Frequency Range SAT	5...2300 MHz
LOSS
Through Loss IN-SAT	0.6 dB
OPERATIONAL
DC Passthrough	Yes
CONNECTOR
Connector TV	F Type - Female
MECHANICAL
Design	UK Grid Style 25x50mm
Product Height	50 mm
Product Width	25 mm
Colour	White
Net Weight	0,047 kg
Tara Weight	0,010 kg
Total Weight	0,057 kg
Remarks	Screened Terminal and clamp cable entry Fits 15mm Patress
