Compact 4 Channel Mixer with Blue Tooth and DSP Effects
Item Code : CSD-4
Special Notice: This Item is only sold when part of an installed Audio System.
Special Notice: This Item is only sold when part of an installed Audio System.
Audio Mixers
Citronic - Compact 4 Channel Mixer with Blue Tooth and DSP Effects
Item Code: CSD-4
Brand: Citronic
Manufacturer: Citronic
Description

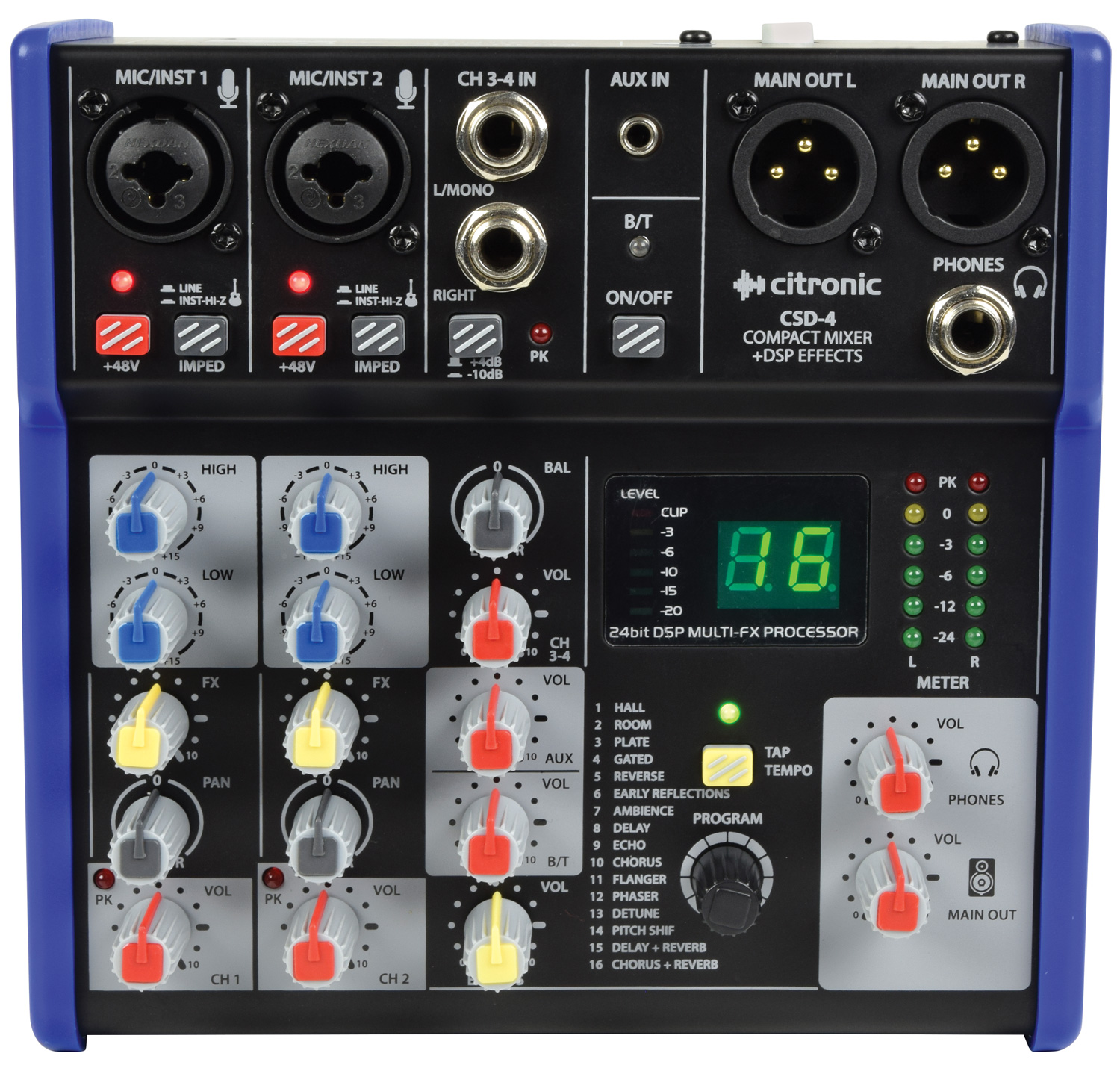

CSD Compact Mixers with BT and DSP Effects
Compact format audio mixer with 2 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR.
Input channels have High/Low EQ and Pan controls.
The B/T pairing button enables wireless connection to a smart phone or tablet for playback.
THe CSD-4 mixer feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments.
Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
Features
- B/T wireless pairing for smartphone or tablet
- 16 program, 24-bit DSP effects engine
- Individually switchable +48V phantom power
- Supplied with DC power adaptor

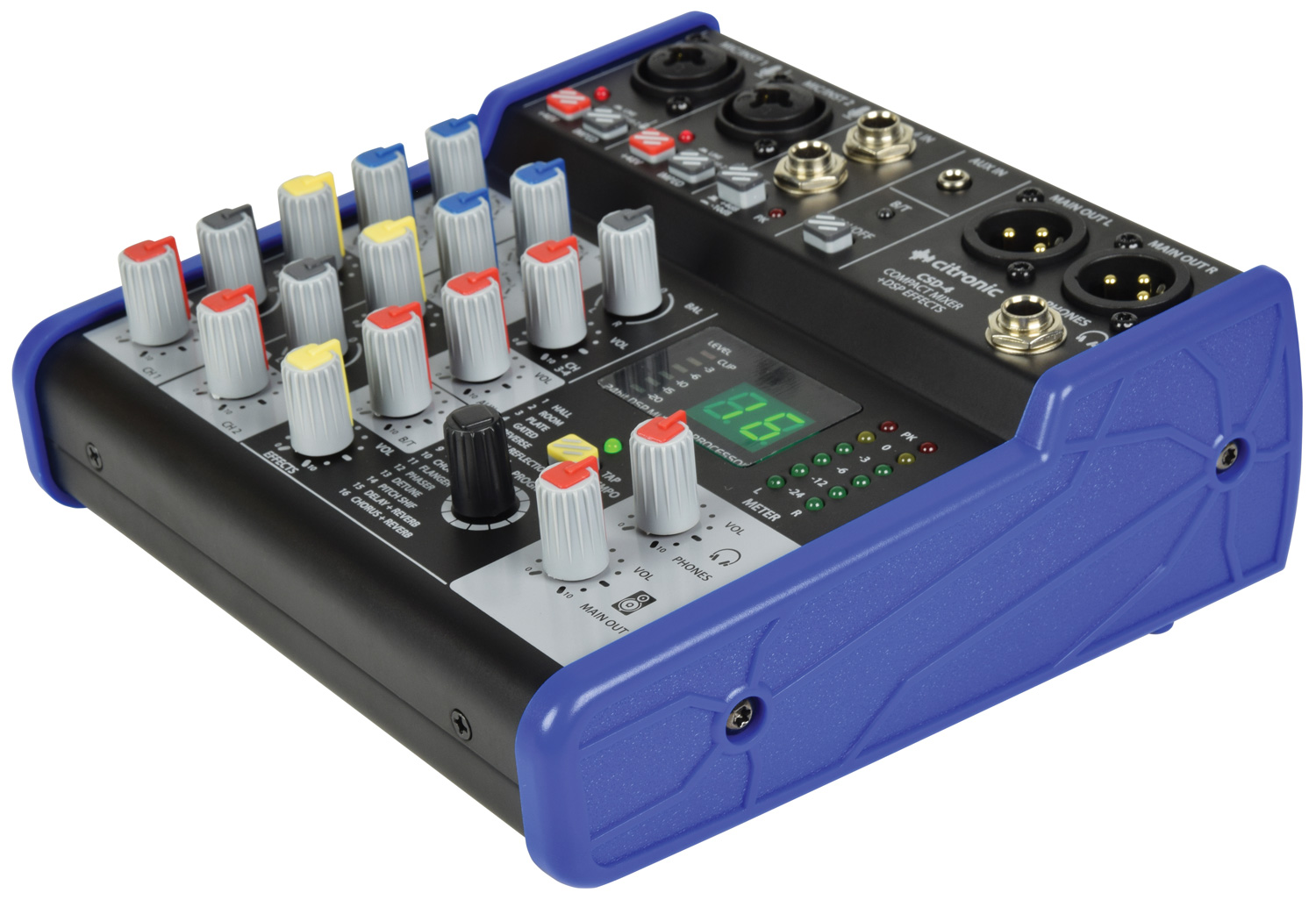

Perspective View CSD-4
|
|
Specification
| Power supply | 5Vdc 1A (adaptor included) | |
| Power consumption | 5W Maximum | |
| Equalisation Low | ±15dB @ 80Hz | |
| Equalisation High | ±15dB @ 12kHz | |
| Phantom power | +48V individually switchable for XLR inputs only | |
| Effects | 16 program DSP (24-bit sigma-delta, 40kHz) | |
| Audio source | Blue Tooth wireless receiver | |
| Blue Tooth version | wireless version 2.1 + EDR | |
| Inputs | 2 x combo XLR/jack 1 x Stereo jack | |
| Input impedance for mic. | 2k Ohms | |
| Input impedance for instrument | 1M Ohms | |
| Input impedance for line | 20k Ohms | |
| Frequency response | 20Hz - 20kHz ±0.5B | |
| THD +N | <0.03% @ 1kHz | |
| Dynamic range | 102dB | |
| Crosstalk | 92dB Stereo | |
| Output Left + Right | balanced XLR | |
| Output impedance | 120 Ohms | |
| Output level | 3V RMS Maximum | |
| Dimensions | 171 x 166 x 66mm | |
| Weight | 0.92Kg |
