ProMHD11L
Item Code : preAmp 9db Line Powered
Special Notice: None
Special Notice: None
Product Details
Pre-Amplifers
Proception - ProMHD11L
Item Code: preAmp 9db Line Powered
Brand: Proception
Manufacturer: Blake UK
preAmp 9db Line Powered
Description
High-performance low-noise pre-amplifier of upto 9db of Gain with a Low Noise Figure of 1.8dB, power can be in the range of 5 to 12 volts at 50 milli Amps, this power range will alow delivery of power direct from certain digital terrestrial set-top boxes or IDTVs which can provide 5 V output at the aerial socket.
Features
- Fully-screened amplifier module.

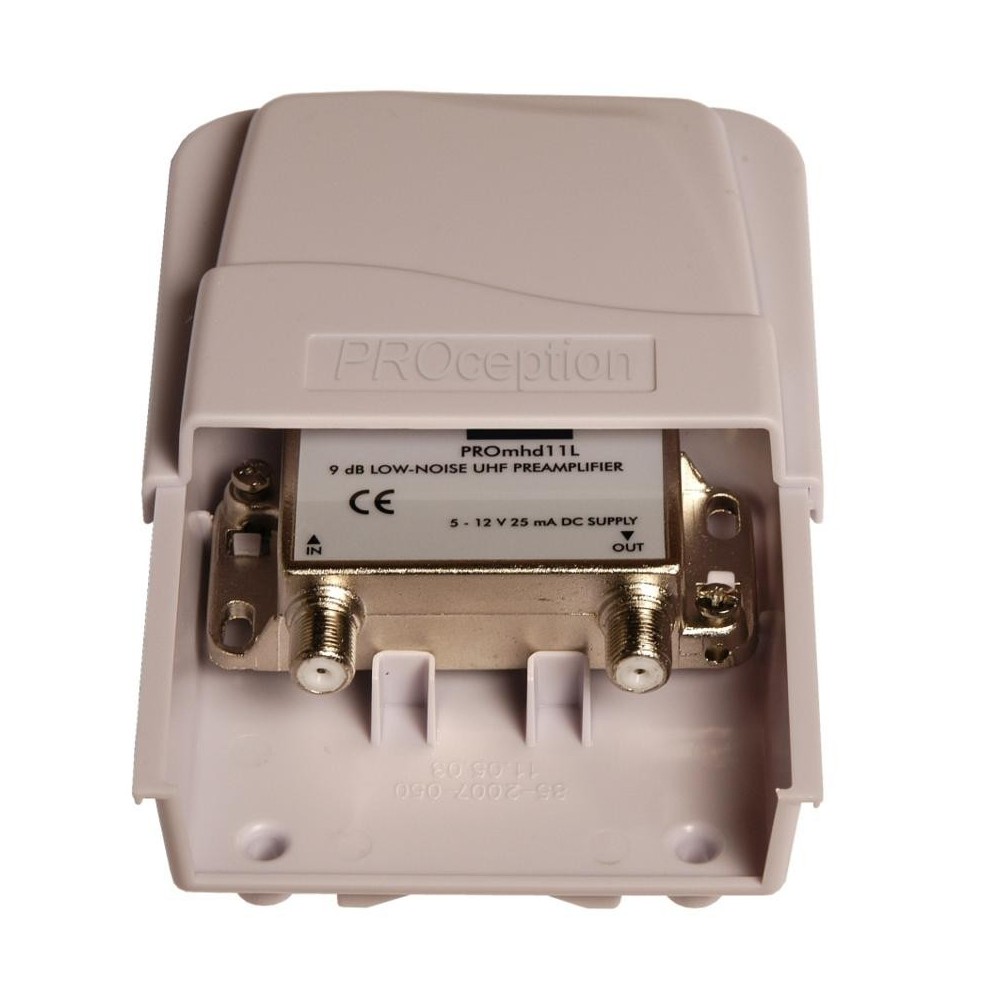

- Strong diecast enclosure with integral cast-in 'F' connectors.
- Equipotential bonding point intergrated into the diecast enclosure.
- Free-draining moulded outer enclosure give easy access and cannot trap water.
- Amplifier has Low noise figures of 1.8dB
- Filtered inputs.
- Filter of sharp cut off below 400 MHz, helps avoid interference problems from nearby transmitters: CB, PMR, TETRA, HF & VHF amateur radio, etc.
- Assesory power supply (proPSU11F) may be required for this item to fully function, please seek technical advise form JW Hardy or Blake UK to see if this assessory is required!
Specification
| Product Code | ProMHD11M | |
| Inputs | one | |
| Outputs | one | |
| Gain | 9dB | |
| Noise Figure | 1.8dB | |
| Output Capacity | 90dBuV | |
| Maximum Recomended Input | 80dBuV | |
| Power Requirement | 2-12Volts at 25 mA | |
| Signal Frequency Range | 470-862MHz | |
| Input Filter | Rejection: >26dB | |
| Frequency Range: <400MHz | ||
| Applications | pre Amplifier to a Launch Amplifier. | |
| Mast Head outdoor amplifier. | ||
| Amplifier to compensate for long cable runs. |
