8 TVI + 2 IP Camera, 2..4MP DVR, TM-108H
Item Code : TM-108H
Special Notice: Note: Price does not include Hard Disk Drive (HDD)
Special Notice: Note: Price does not include Hard Disk Drive (HDD)
Product Details
Digital Video Recorders (DVR) 4 Mege Pixel

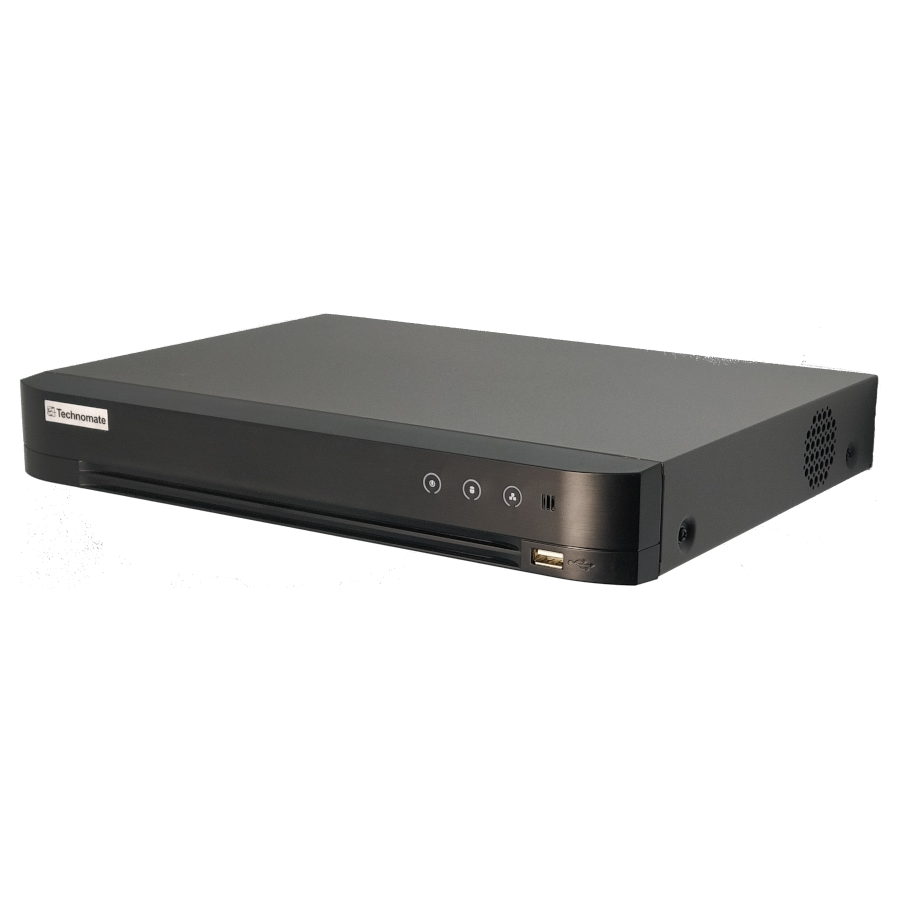

Technomate - 8 TVI + 2 IP Camera, 2..4MP DVR, TM-108H
Item Code: TM-108H
Brand: Technomate
Manufacturer: Hikvision
Description
Tecnomate 4 Channel Digital Video Recorder type 4MP.
• Cautionary Note:
Price does not include Hard Disk Drive (HDD)
We Stock HDD of Seagate Manufacturer, Type SkyHawk in sizes of:-
1 Terabyte, 2 Terabyte, 3 Terabyte, 4 Terabyte, 6 Terabyte, 8 Terabyte.
Please see Hard Disk Drives (HDDs)
Features
- Connectable to HD-TVI, AHD, IP, CVI & analogue cameras
- Up to 1ch 4MP ONVIF conformant IP cameras input
- Long distance transmission over twisted pair cable & coax cable
- H.265+ compression improves encoding efficiency by up to 50% & reduces data storage costs
- HDMI output at up to 1920 × 1080
- Smart search for efficient playback

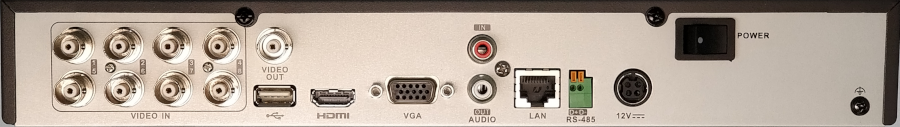

Detailed Veiw for connections to TM-108H
|
Specification
| Recording | ||
|---|---|---|
| Encoding resolution | Main stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) | |
| Video bit rate | 32 Kbps to 6 Mbps | |
| Dual stream | Support | |
| Stream type | Video, Video & Audio | |
| Audio compression | G.711u | |
| Audio bit rate | 64 Kbps | |
| Video and Audio | ||
|---|---|---|
| IP video input | 2-ch (up to 10-ch) IP enhanced mode on: 4-ch (up to 12-ch), each up to 4 Mbps | |
| AHD input | 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps | |
| HDCVI input | 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps | |
| CVBS input | PAL/NTSC | |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output | |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Synchronous play back | 8-ch | |
| HDTVI input | 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480, | |
| Network | ||
|---|---|---|
| Remote connections | 128 | |
| Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface | |
| Auxiliary interface | ||
|---|---|---|
| SATA | 2 SATA interfaces | |
| Capacity | Up to 10 TB capacity for each disk | |
| Alarm in/out | N/A | |
| USB interface | 2 × USB 2.0 | |
| General | ||
|---|---|---|
| Power supply | 12 VDC | |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) | |
| Working humidity | 10% to 90% | |
| Weights (without HDD) | ≤ 1.78 kg (3.9 lb) | |
| Consumption(without HDD) | ≤ 7.5 W | |
| Dimensions(W × D × H) | 315× 242× 45mm (12.4 ×9.5 ×1.8 inch) | |
