1U 5-Zone Stereo Mixer 4 x 10 Channel all Balanced inputs/outputs

Item Code : Z5M



Special Notice: This Item is only sold when part of an installed Audio System.

Special Notice: This Item is only sold when part of an installed Audio System.

Product Details

adastra™   Audio Mixers

adastra - 1U 5-Zone Stereo Mixer 4 x 10 Channel all Balanced inputs/outputs

Item Code: Z5M

Brand: adastra

Manufacturer: adastra


Description

Zoning Mixer

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone.

All inputs and outputs are stereo via balanced XLR connectors.

Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

Features

  • 2 inputs to 5 zones
  • Mono selectable for each zone
  • Fully balanced XLR connections

Images of Z5M

Front Panel of Z5M
Rear Panel of Z5M

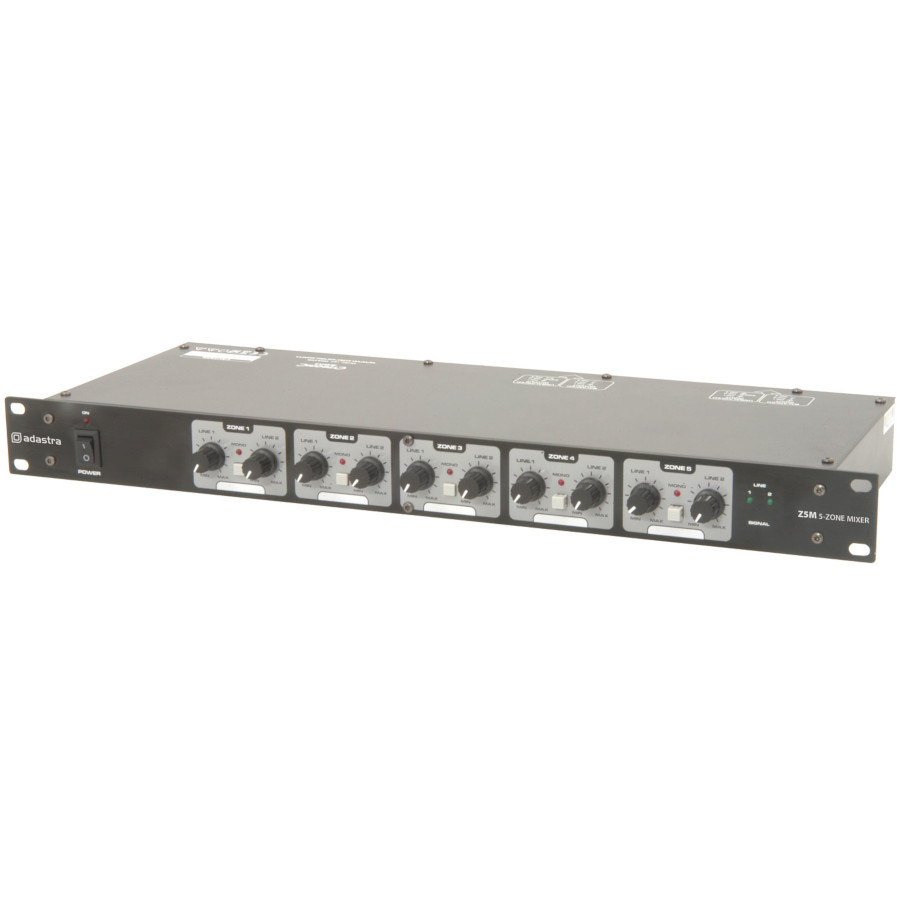

Perspective View of Z5M

Specification

Power supply 115/230Vac 50/60Hz (IEC)
Inputs Line Line 1 L+R balanced XLRF.
Line 2 L+R balanced XLRF
Outputs Zone 1 to 5 L+R balanced XLRM
Input impedance 40k Ohms
Output impedance 220 Ohms
Frequency response 20Hz - 25kHz, +0/-1dB
Signal to noise ratio >100dB
THD <0.005%
Dimensions 483 x 175 x 44mm
Weight 2.2kg
