Citronic - Compact 14 Channel Mixer with DSP Effects
Item Code: CSL-14
Brand: Citronic
Manufacturer: Citronic
Description
CSL Series Compact Mixing Consoles with DSP
Compact mixing consoles with 10 balanced mic/line inputs + 2 stereo inputs.
Each input is with 3-band EQ and aux send.
A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control.
Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.
Features
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- IEC mains powered
- Balanced main outputs
- 19" rack-mounting ears available: 170.846-7-8UK

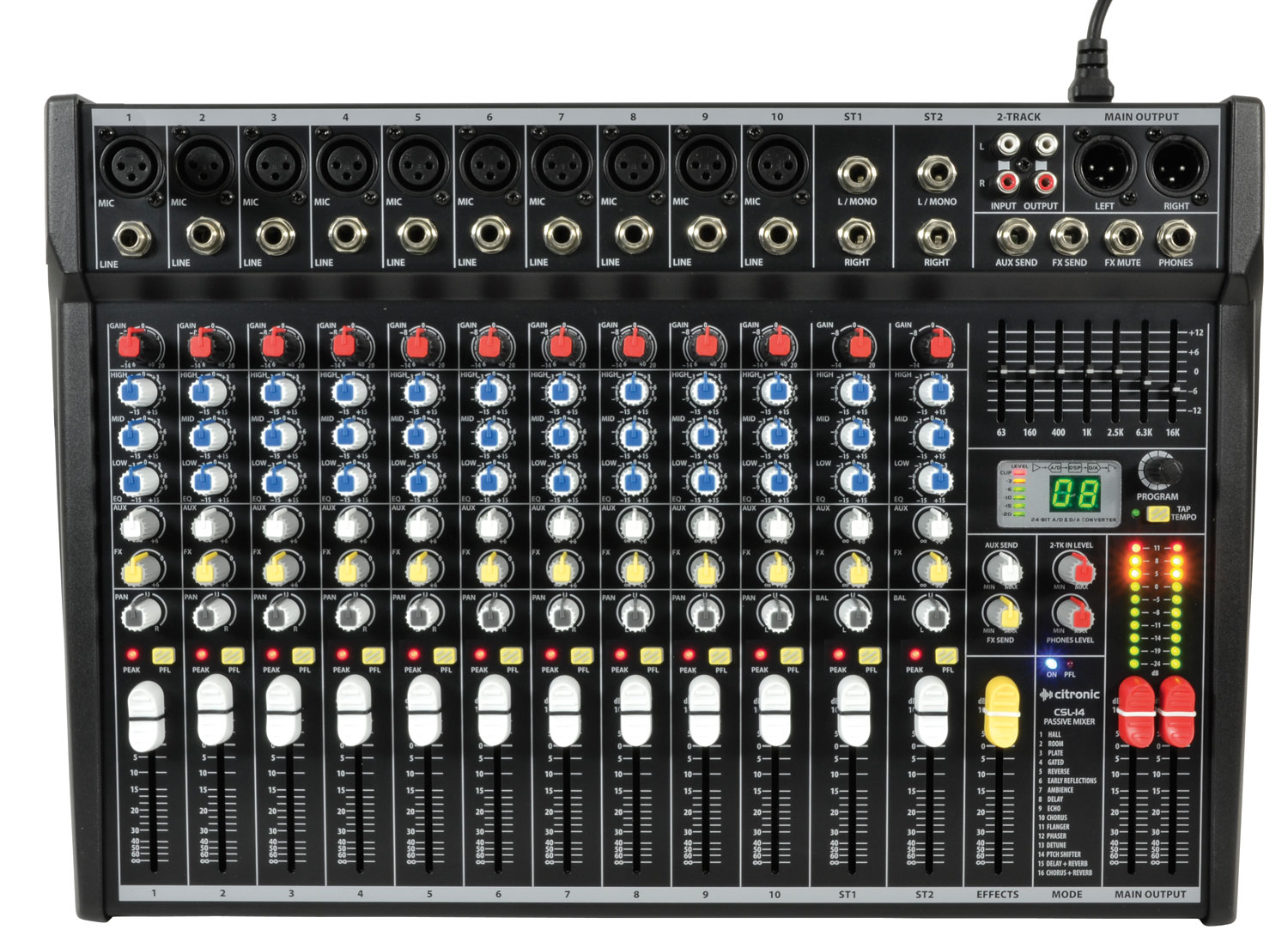

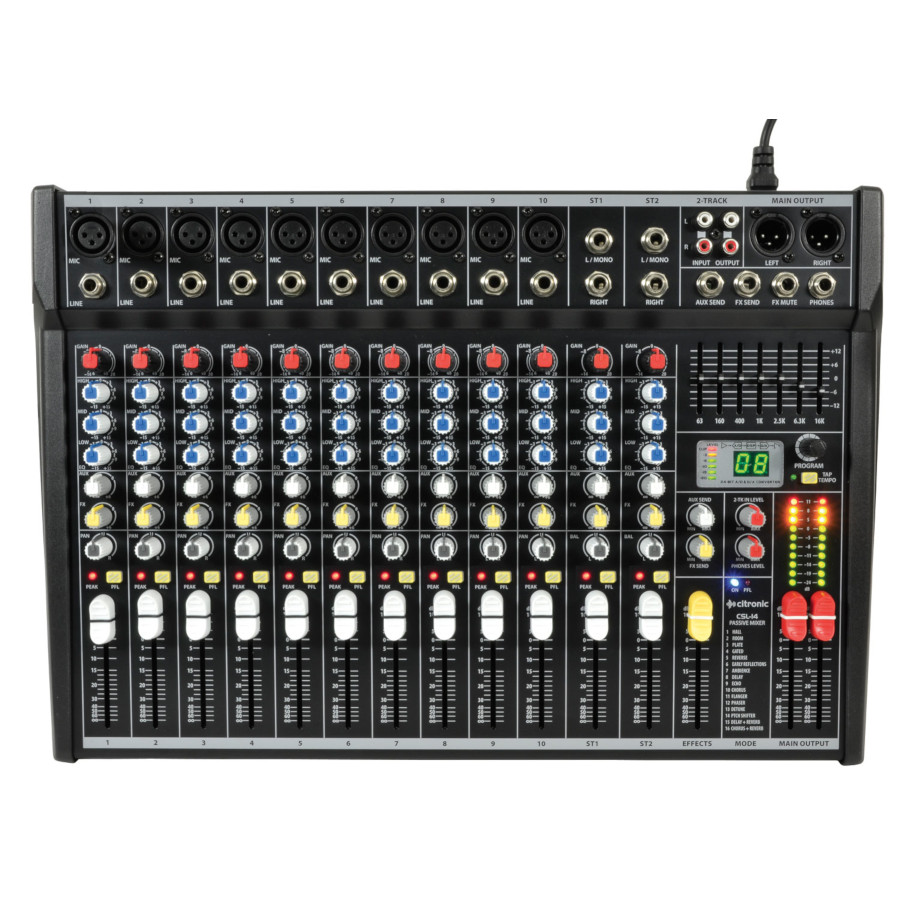

Plan View CSL-14
|
Specification
| Power supply | 230Vac, 50Hz (IEC) | |
| Phantom power | +48V (XLR inputs) | |
| Power consumption | 25W | |
| Fuse | T1AL | |
| Input level | +24dBu | |
| Output level line | +26dBu | |
| Frequency response | 20Hz-30kHz (0.5dB) | |
| CMRR | >74dB (mic 1kHz) | |
| THD +N | <0.01% (channel to main out) | |
| Crosstalk | >85dB (fader mute), >82dB (channel) | |
| Noise rms | 22Hz-22kHz -122dBu (EIN), -82dBu (mix) | |
| Equaliser | high 12kHz ±15dB shelving mid 2.5kHz ±15dB band pass low 80Hz ±15dB shelving | |
| Inputs | mic 10 x balanced XLRF or 10 x TRS jack | |
| Input impedance | mic (balanced) 2k Ohms line (balanced) 10k Ohms | |
| Input Sensitivity | mic -60 to +14dBu line -40 to +14dBu | |
| 2-track | 2 x RCA in & out (-2dBu) | |
| Effects | 16 program DSP (24-bit sigma-delta, 40kHz) | |
| Output impedance | <75 Ohms | |
| Headphone | output 6.3mm jack, 30-600 Ohms | |
| Dimensions | 475 x 320 x 107mm | |
| Weight | 4.5kg |
