1U Tuneable UHF Microphone System with Handheld Microphone: citronic RU105-H

Item Code : RU105-H



Special Notice: This Item is only sold when part of an installed Audio System.

Special Notice: This Item is only sold when part of an installed Audio System.

Product Details

Citronic™   UHF Microphone

Citronic - 1U Tuneable UHF Microphone System with Handheld Microphone: citronic RU105-H

Item Code: RU105-H

Brand: Citronic

Manufacturer: Citronic


RU105 Receiver

Single channel PLL tuneable UHF wireless system with beltpack transmitter with a neckband microphones & a lavalier microphone.

The receiver unit RU105 is compatible with standard 19" rack when using the included rack ears.

The RF carrier frequency is selected on the receiver and can be synchronized to the transmitter via infra-red signal at the touch of a button on the RU105.

Up to 4 RU105 systems can be operated together on the EU licence-free band.

Handheld Microphone combined with UHF Transmitter

UHF handheld transmitter compatible with Citronic wireless systems.

The carrier frequency can be programmed via I.R. sync signal from the Citronic wireless receiver unit.

Features

  • PLL tunable with 81 UHF frequencies
  • Licence free operation in UK & EU
  • Pilot tone & mute circuit for stable signal
  • Rack-mounting accessories included
  • Supplied with mains adaptor and 2 x AA batteries

  • List of Supplied Items with the System RU105-H.

  • 1 x UHF Receiver model No. RU105
  • 1 x Handheld microphone combined with UHF Transmitter model No. RUHH-PLL
  • 2 x AA batteries for Microphone combined UHF Transmitter model RUHH-PLL
  • 1 x UHF antenna for UHF Receiver model RU105
  • 1 x Antenna lead for UHF Receiver model RU105
  • 1 pair of Rack-mounting ears for UHF Receiver model RU105
  • 1 x Mains power adaptor for UHF Receiver model RU105

Images of RU105-H

Front of Receiver RU105-H
Rear of Receiver RU105-H
Front of Recever with 19 inch Rack Mount Ears RU105-H

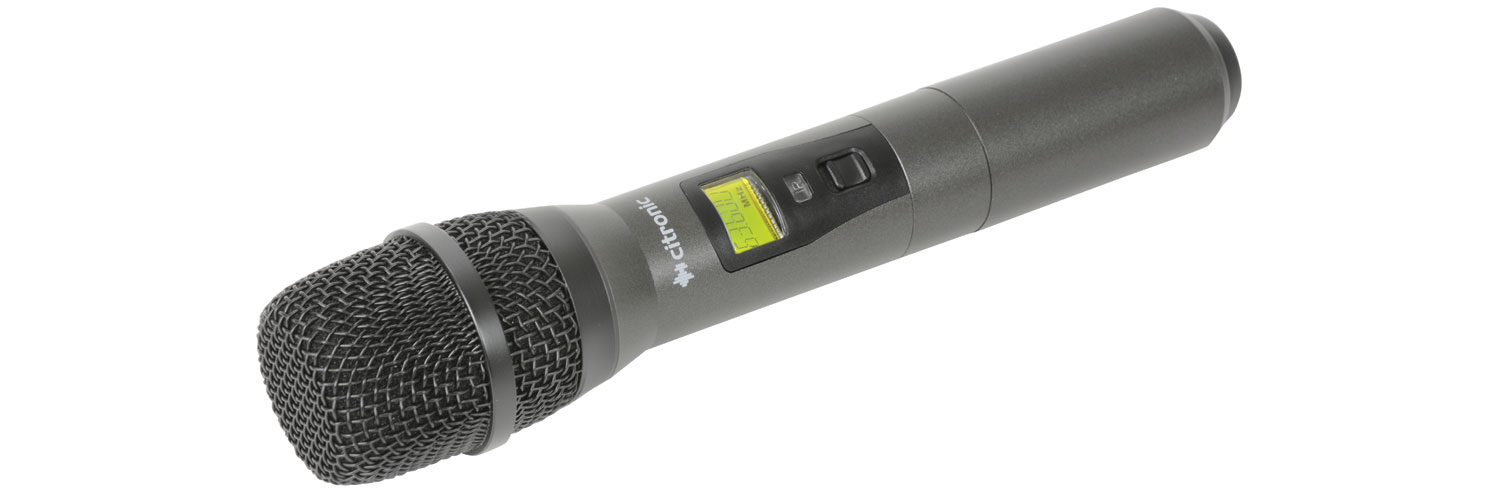

Hand Held Microphone RU105-H

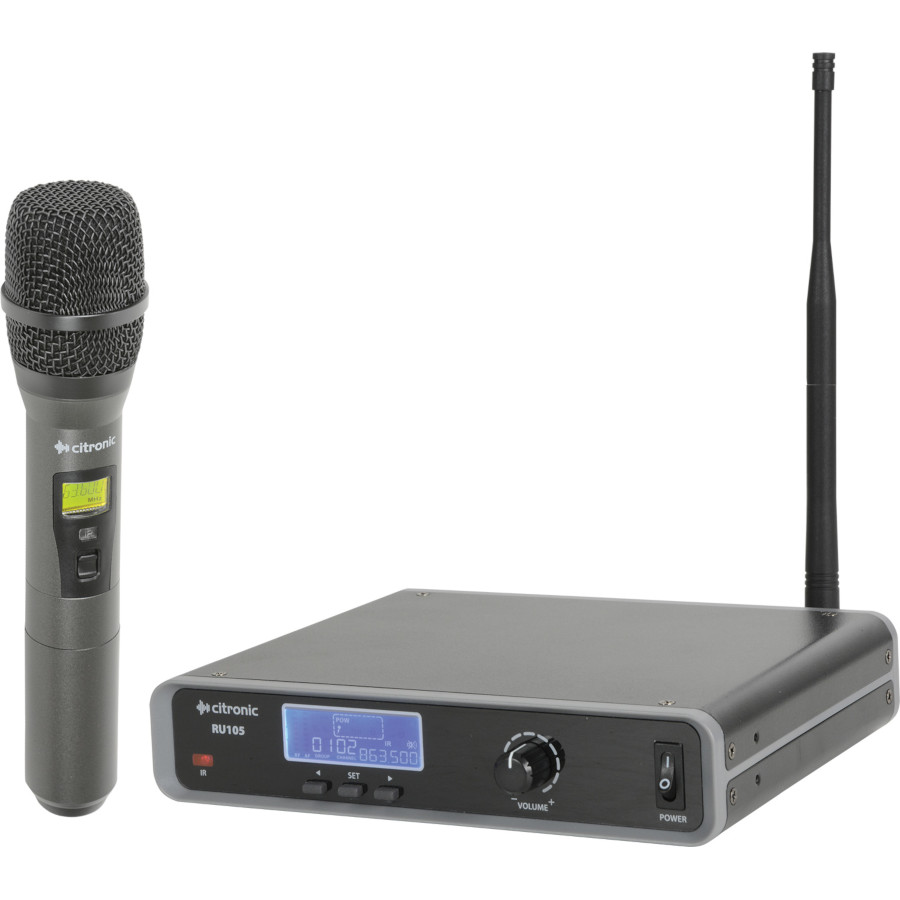

System RU105-H

Specification

Microphone UHF Receiver RU105
Power supply 12-18Vdc, 350mA (mains adaptor included)
Batteries 2 x AA (for transmitter - included)
Carrier frequency 863 - 865MHz (81 selectable frequencies)
Range 60m
Signal to noise ratio >105dB
THD <0.5% @ 1KHz
Frequency response 50Hz-18KHz ±1 dB
Image rejection >85dB
Output impedance 2.2k Ohms
Output level 400mV (balanced), 200mV (unbalanced)
Dimensions receiver 44 x 198 x 190mm
Weight receiver 710g
Handheld Microphone combined with UHF Transmitter
Power supply 3Vdc (2 x AA batteries)
Operating frequencies 863.1 to 864.9MHz
Maximum range 60m
Dimensions 265 x 49mmØ
Weight 330g
