1U Tuneable Dual Channel UHF Beltpack Microphone System : citronic RU210-N
Item Code : RU210-N
Special Notice: This Item is only sold when part of an installed Audio System.
Special Notice: This Item is only sold when part of an installed Audio System.
UHF Microphone
Citronic - 1U Tuneable Dual Channel UHF Beltpack Microphone System : citronic RU210-N
Item Code: RU210-N
Brand: Citronic
Manufacturer: Citronic
Description
Dual channel PLL tuneable UHF wireless system with 2 x beltpack transmitters with two neckband microphones & two lavalier microphone.

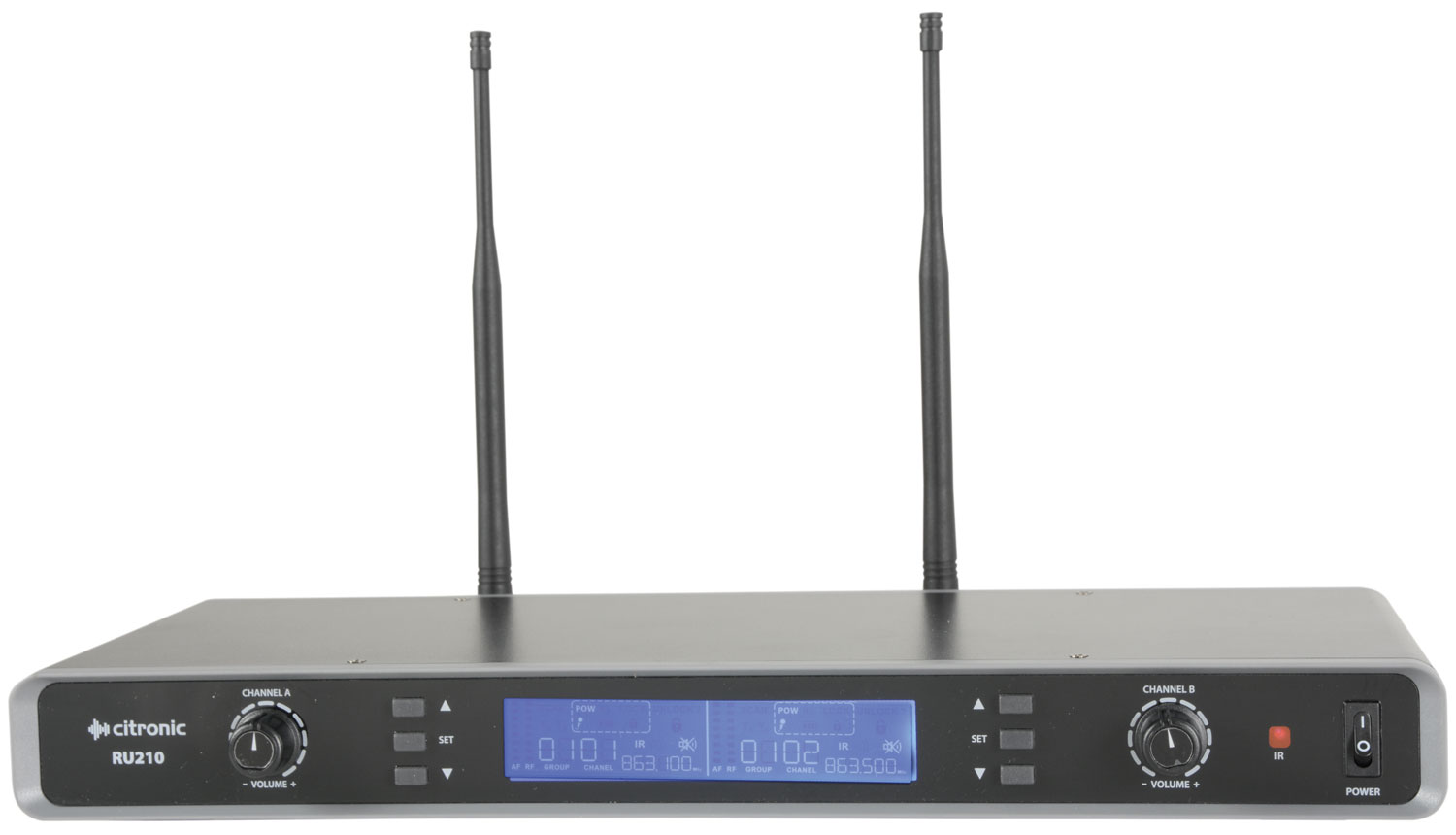

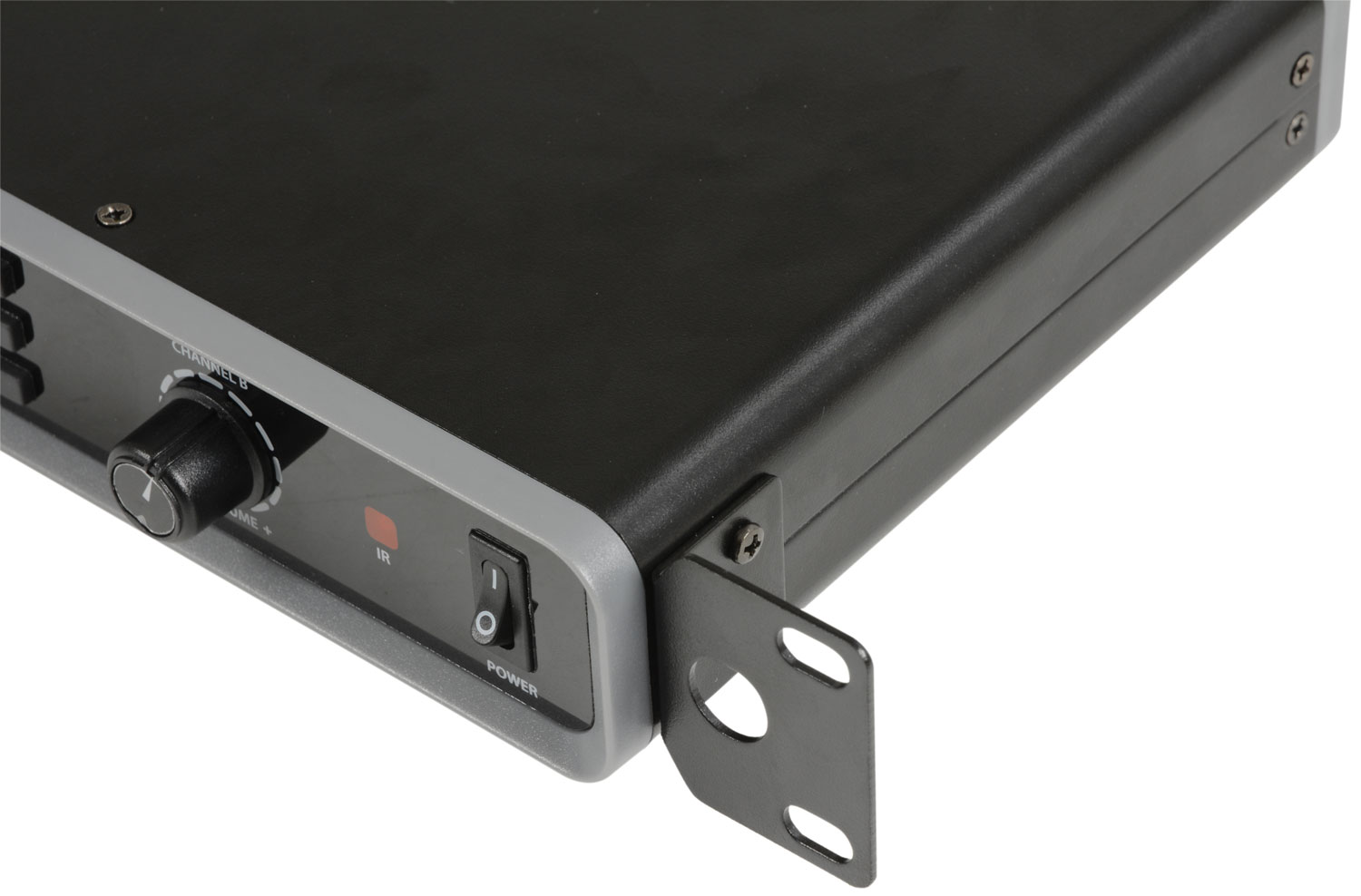

The receiver unit is compatible with standard 19" racks when using the included rack ears.
The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button.
Up to 2 RU210H systems can be operated together on the EU licence-free band.
Caution: this dual channel receiver can only be used with two microphone at a time, the kit of parts however comes with two neckband microphones and two lavalier microphone it is the users choice/preference to which two microphone is used at any one time.
Features
- PLL tunable with 81 UHF frequencies
- Licence free operation in UK & EU
- Pilot tone & mute circuit for stable signal
- Rack-mounting accessories included
- Supplied with mains adaptor and 2 x AA batteries
-

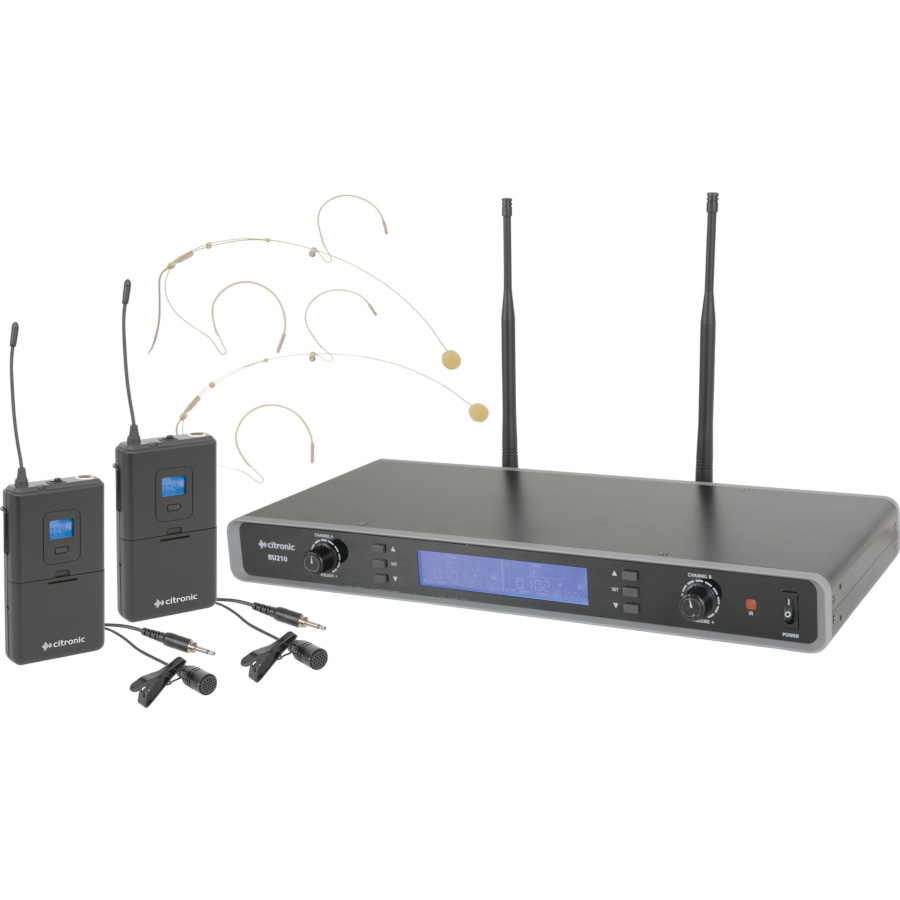

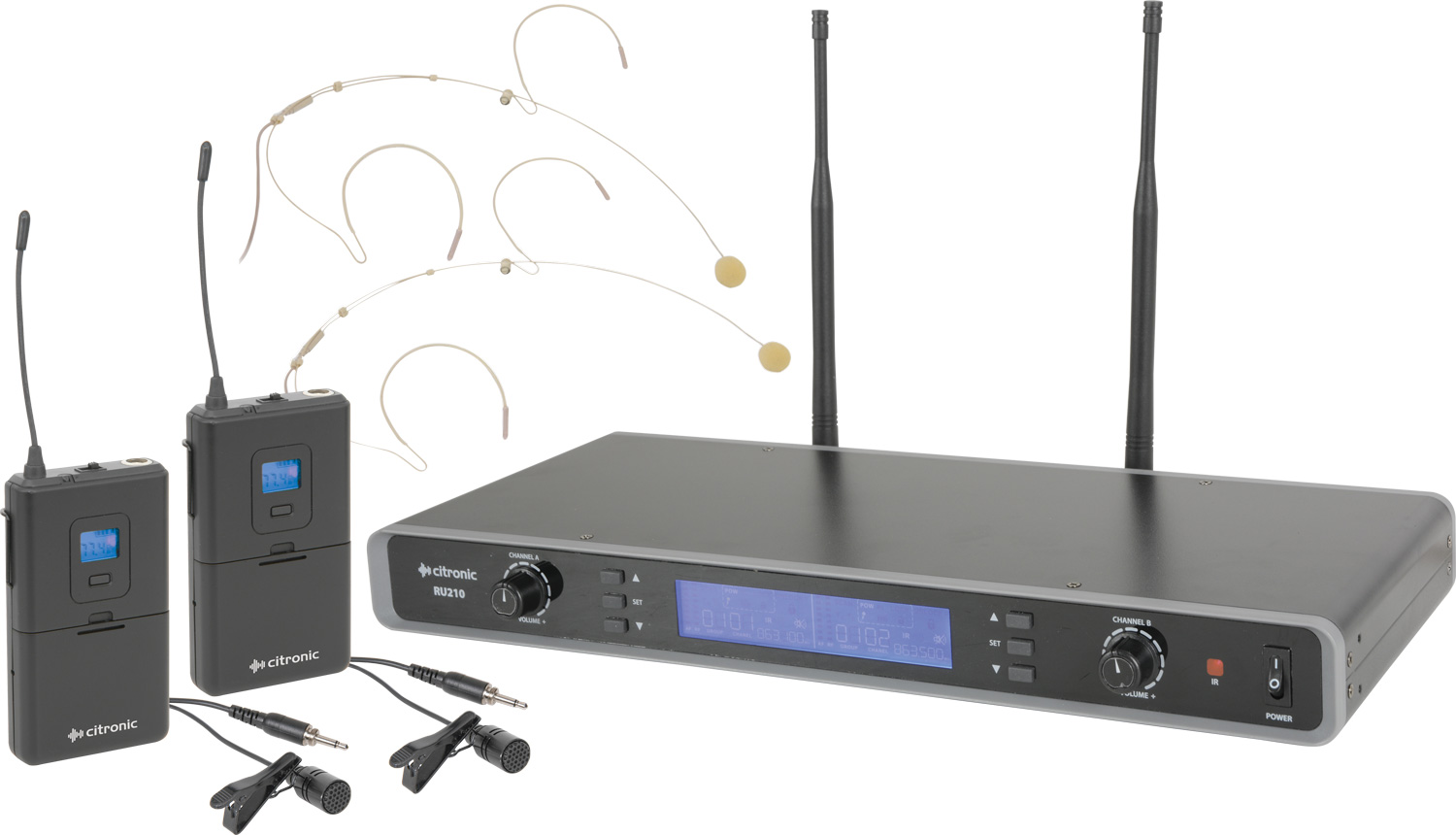

List of Supplied Items with this Kit RU210-N
- 1 x Dual channel UHF receiver

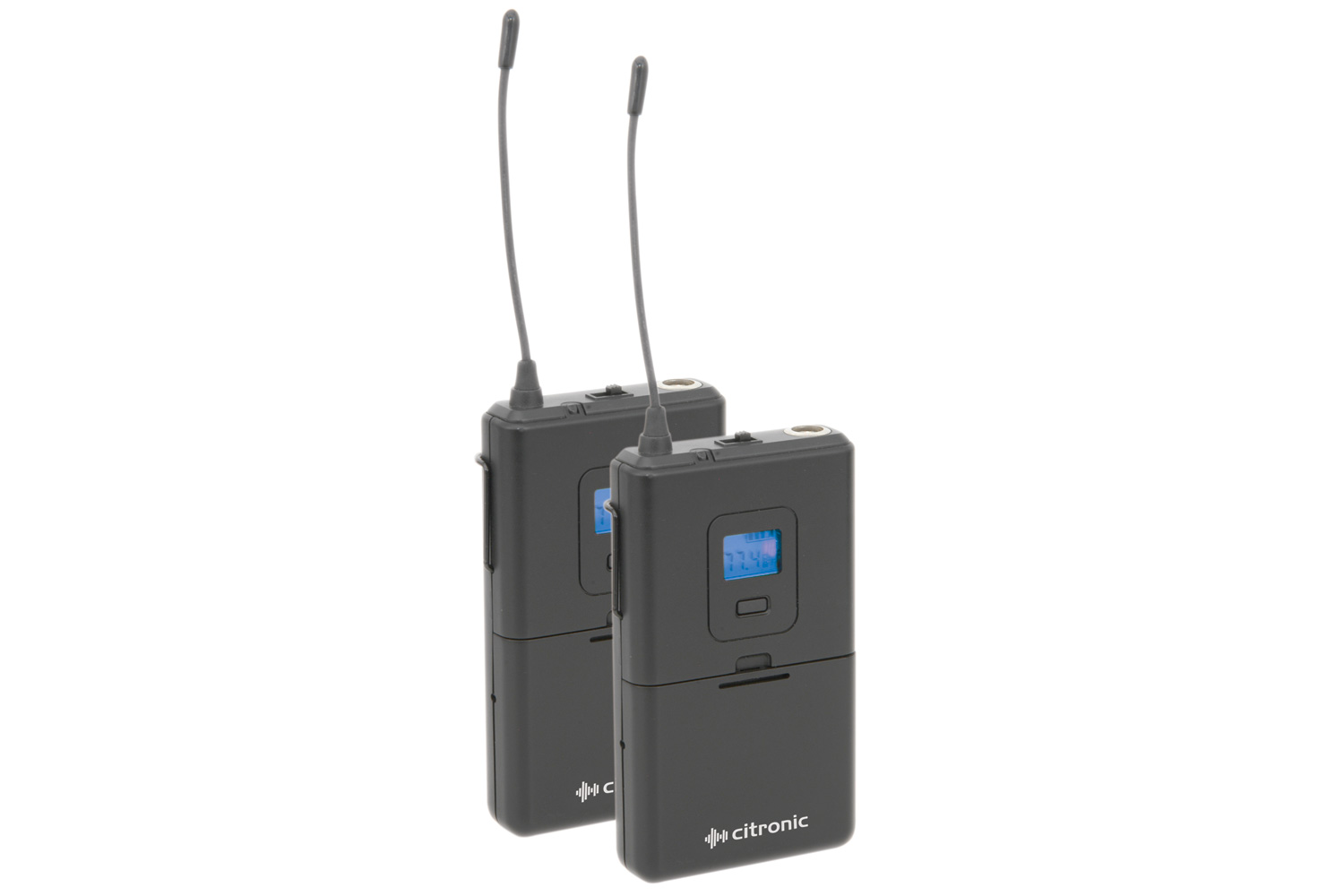

- 2 x Beltpack transmitter

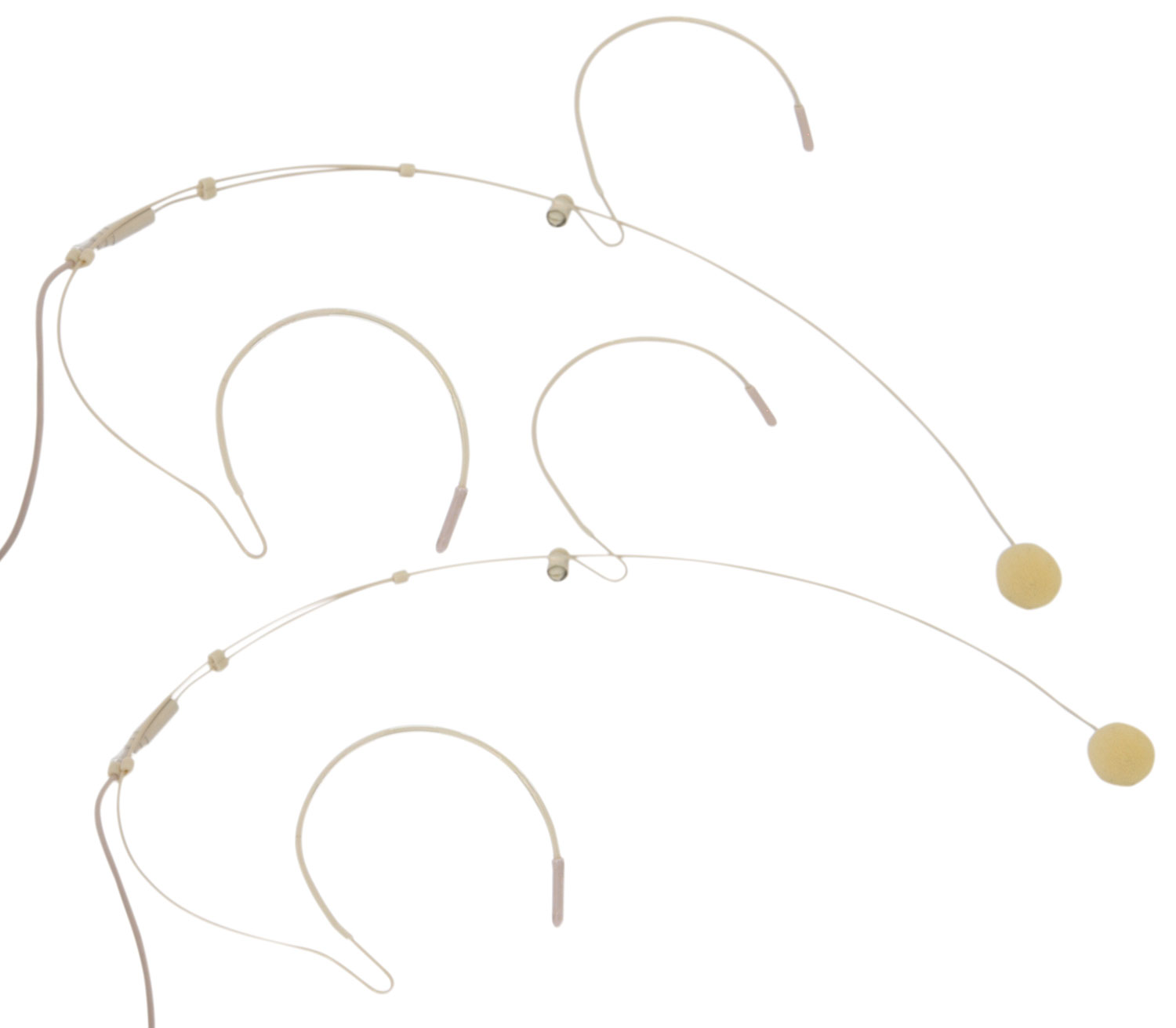

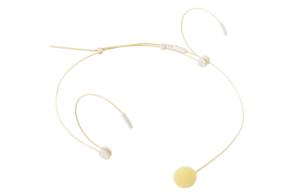

- 2 x Neckband microphone

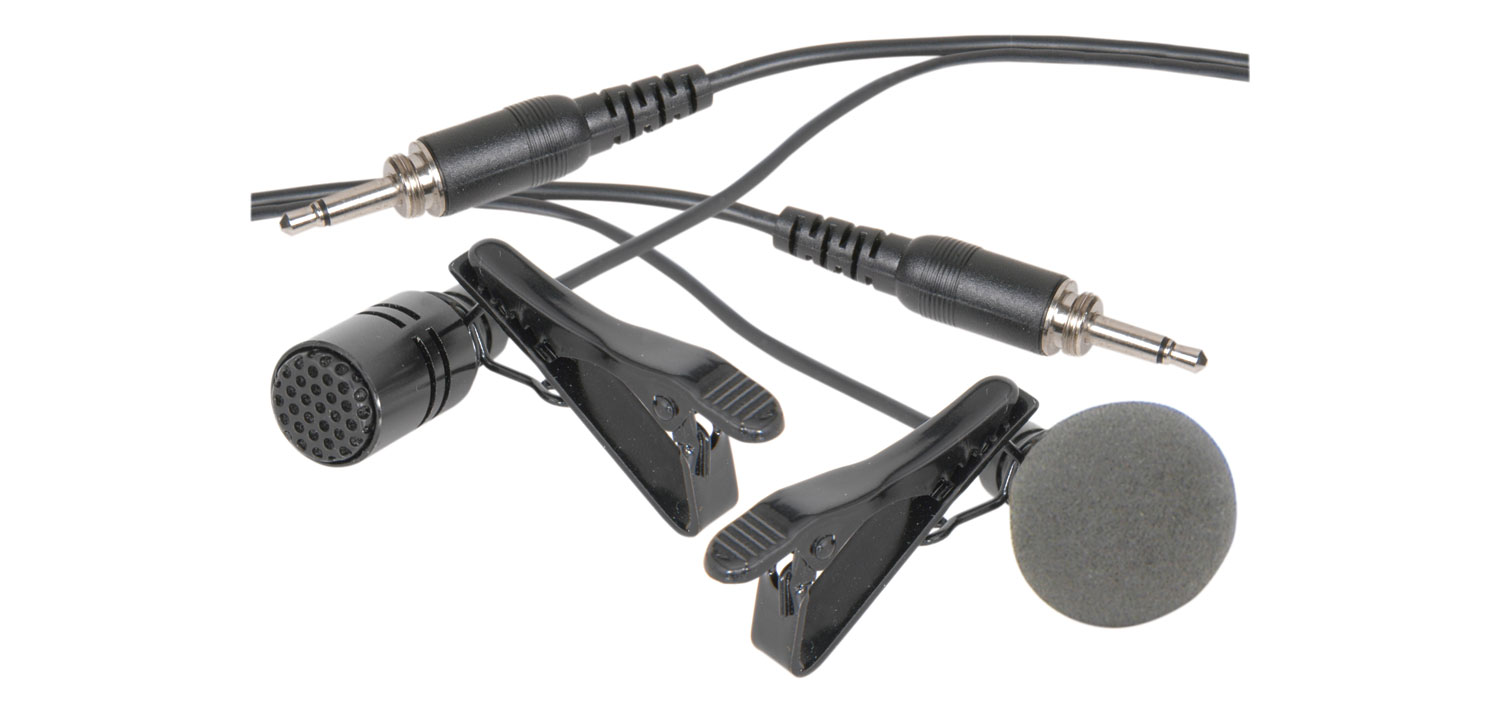

- 2 x Lavalier microphone
- 4 x AA batteries
- 2 x UHF antenna
- 2 x Antenna lead
- 1 pair of Rack-mounting ears
- 1 x Mains power adaptor

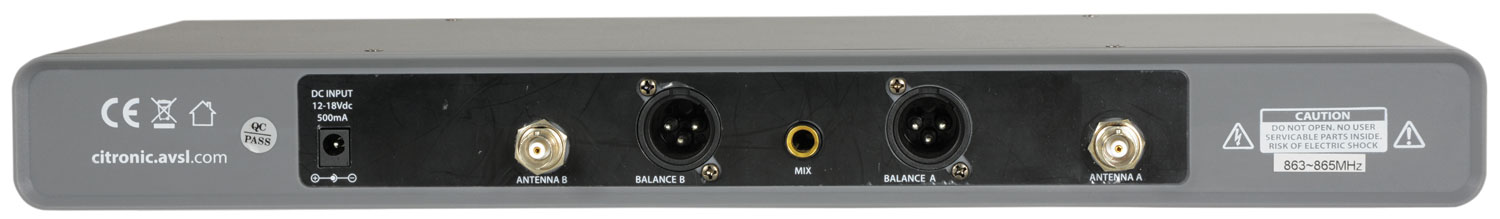

Images of RU210-N
|
|
|
|
|
|
|
Related Items
| Service Replacment Items | ||
|---|---|---|
| Service Replacment |
NeckBand Cordioid Microphone : cord DCN-35
Item code: DCN-35 | |
| Service Replacment |

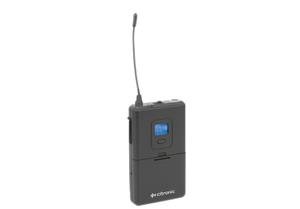

Belt Pack UHF Transmitter for system RU105 & RU210 : citronic RUHH-PLL
Item code: RUBP-PLL | |
| Addition to the RU2100-N |

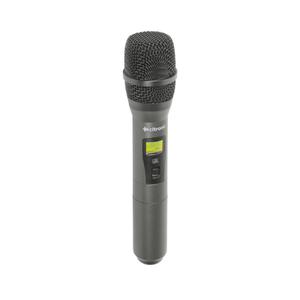

Handheld Microphone with combined UHF Transmitter for system RU105 & RU210 : citronic RUHH-PLL
Item code: RUHH-PLL | |
Specification
| Power supply | 12-18Vdc, 500mA (mains adaptor included) | |
| Batteries | 4 x AA (for transmitter - included) | |
| Carrier frequency | 863 - 865MHz (81 selectable frequencies) | |
| Range | 60m | |
| Signal to noise ratio | >105dB | |
| THD | <0.5% @ 1KHz | |
| Frequency response | 50Hz-18KHz ±1 dB | |
| Image rejection | >85dB | |
| Output impedance | 2.2k Ohms | |
| Output level | 400mV (balanced), 200mV (unbalanced) | |
| Dimensions receiver | 44 x 409x 190mm | |
| Weight receiver | 1.37Kg | |
| Dimensions transmitter | 110 x 67 x 24mm (excluding antenna) | |
| Weight transmitter | transmitter 75g (with no battery) |
