KAD-2BT Audio Amplifier

Item Code : 103.122UK



Product Details

qtx™   Audio Amplifier

qtx - KAD-2BT Audio Amplifier

Item Code: 103.122UK

Brand: qtx

Manufacturer: qtx

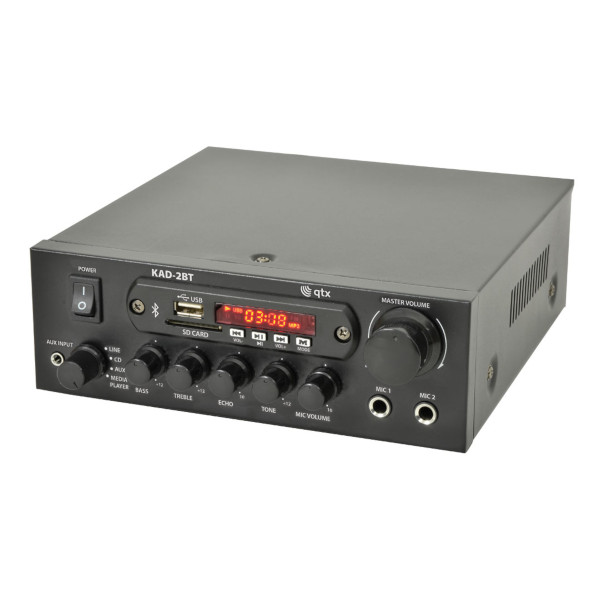

qtx - Digital Stereo Amplifier with Bluetooth

This KAD-2BT compact digital amplifier has three selectable stereo inputs, two microphone inputs and is capable of delivering up to 35 Watts RMS per channel (Left, Right). Mic volume, tone and echo effects are adjustable through rotary controls. Master Volume, Treble and Bass rotaries control tone and overall output. This amplifier  also features built-in media player, Bluetooth connectivity and FM receiver. The KAD-2BT is a multi-functional amplifier suitable for both domestic and commercial use.

Product description:

KAD-2BT Digital stereo amplifier of 2 x 35 Watts RMS with Bluetooth®

  • Efficient Class D digital amplifier.
  • Bluetooth connectivity.
  • Built-in media player with USB and SD card inputs and FM receiver.
  • A high output power of 35Watts RMS per channel (Left, Right). A total output power of 70Watts RMS.
  • 3.5mm stereo line input on the front panel.
  • 2 stereo line inputs on RCA.
  • 2 x 6.3mm microphone inputs.
  • Spring clip speaker output terminals.

Specifications

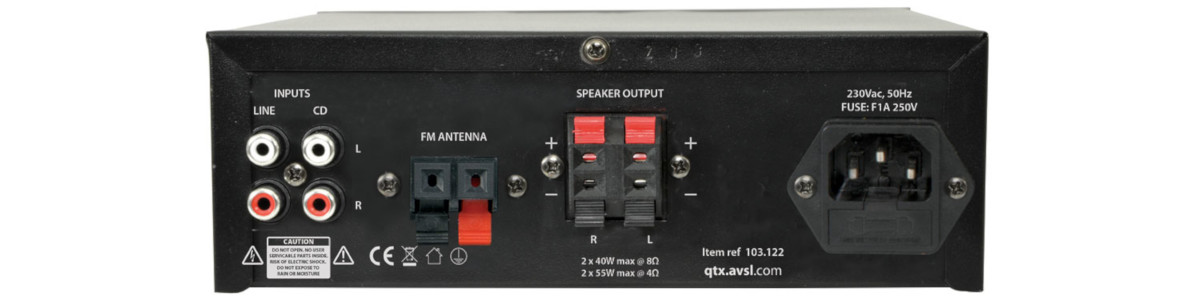

Rear View of KAD-2BT Audio Amplifier
ORDER INFORMATION
EAN Number
5015972172230
MECHANICAL
Power supply
230Vac, 50Hz (IEC)
Output impedance
4-8 ohm
Input sensitivity: Line
380mVolt
Input sensitivity: mic (unbalanced)
15mVolt
Output power: 8 Ohms
25 Watts RMS (EIAJ Standard @ 1kHz 10% THD)
Output power: 4 Ohms
35 Watts RMS (EIAJ Standard @ 1kHz 10% THD)
Finish
Black
Dimensions
200 x 200 x 65mm
Weight
1.6 Kg
Dowload Instruction manual
