CC6V 6.5inch Ceiling Speaker

Item Code : 952.153UK



Product Details

adastra™   Combined, Low impedance(Z) - 100 Volt Line, Ceiling Loud Speakers

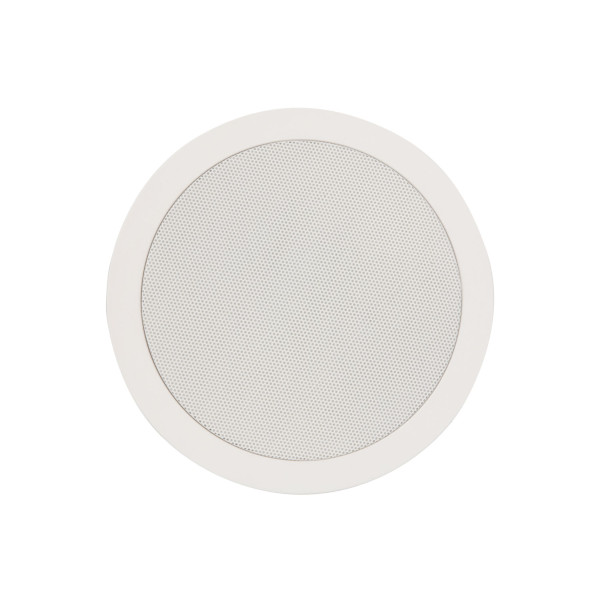

adastra - CC6V 6.5inch Ceiling Speaker

Item Code: 952.153UK

Brand: adastra

Manufacturer: Triax

2-way quick fit ceiling speakers with PP mica bass driver and directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille.

Product description:

CC6V 100V Ceiling Speaker with Control 6.5 Inch

  • Rotary selector switch for 100V line tappings or 8 Ohms
  • Fitted with "dog-ear" mounts for fixing to ceiling tiles 1-20mm in thickness
  • Spring loaded terminals for easy connection

Specifications

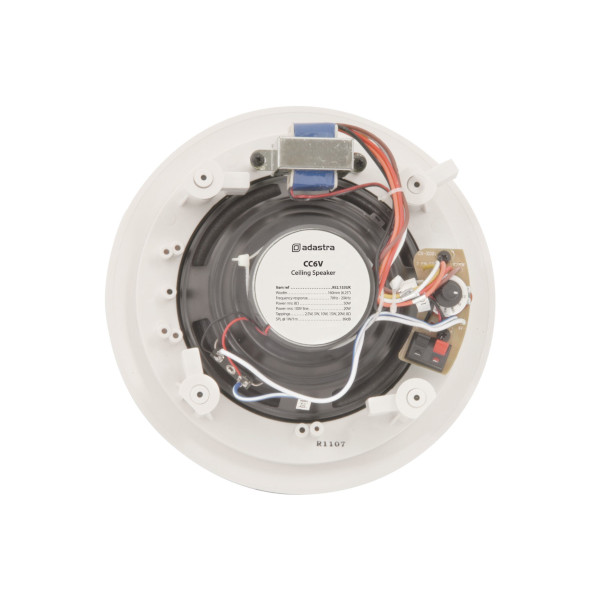

Rear View of CC6V 6.5inch Ceiling Speaker
ORDER INFORMATION
EAN Number 5015972053614
MECHANICAL
Woofer 165mm in diameter (6.5inch)
Tweeter
38mm  in diameter (1.5inch)
Frequency response
70Hz - 20KHz
Power RMS
50Watt at 8ohm or 20Watt at 100Volt
Fixing hole cut out
193mm in diameter
Mounting depth
90mm
SPL @ 1W/1m
87dB (+-2dB)
Tappings 2.5, 5, 10, 15 or 20 Watt or 8 ohm 50 Watt
Dimensions 88mm in depth by 202mm in diameter
Weight 1.15Kg
Diagram Dimensions

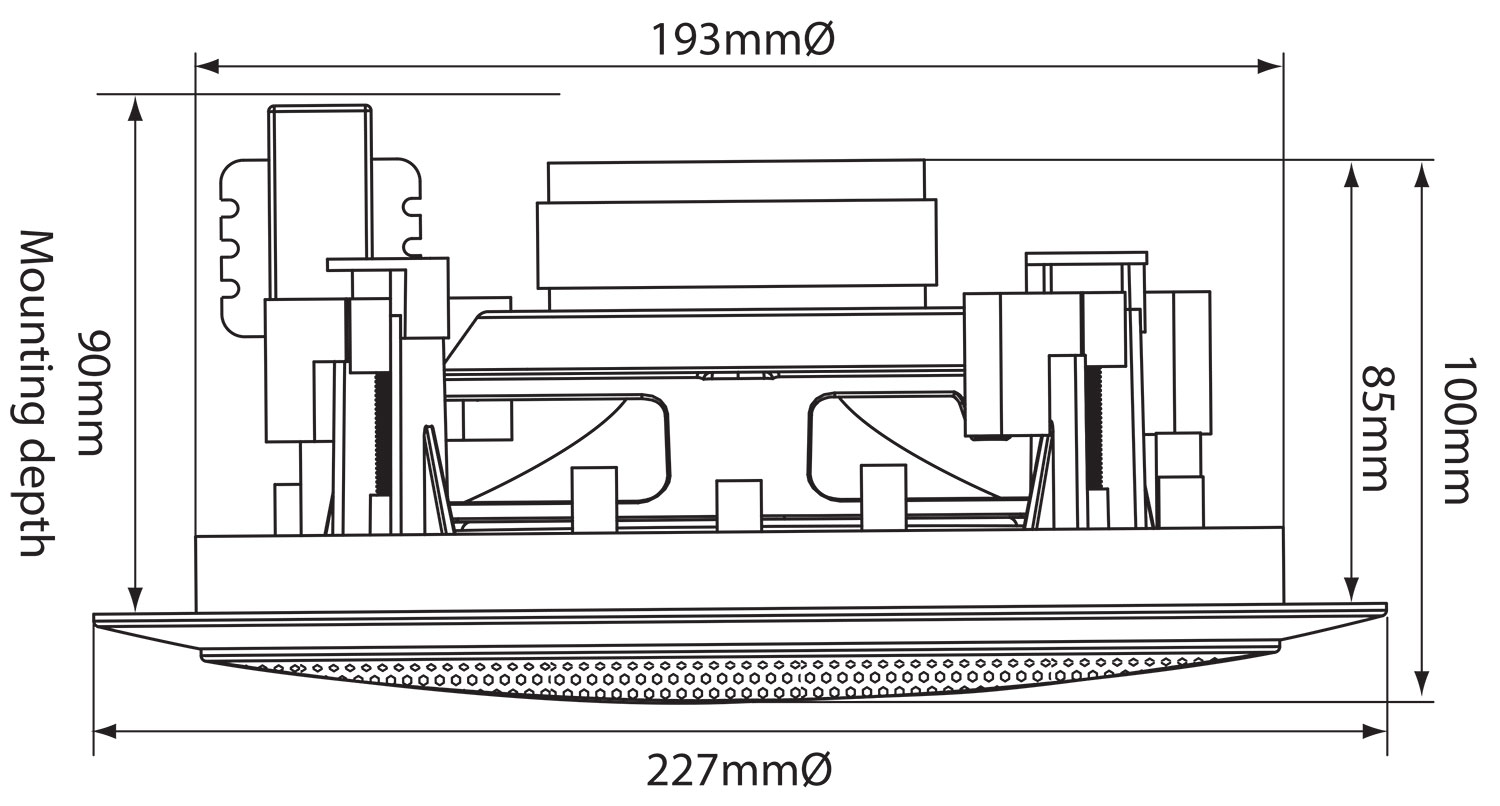

Technical Drawing of CC6V 6.5inch Ceiling Speaker
