AV:LINK - 3 x 1 HDMI Switch - Model HDM31
Item Code : 128.822uk
HDMI Switch
av:link - AV:LINK - 3 x 1 HDMI Switch - Model HDM31
Item Code: 128.822uk
Brand: av:link
Manufacturer: av:link
128.822uk
Description

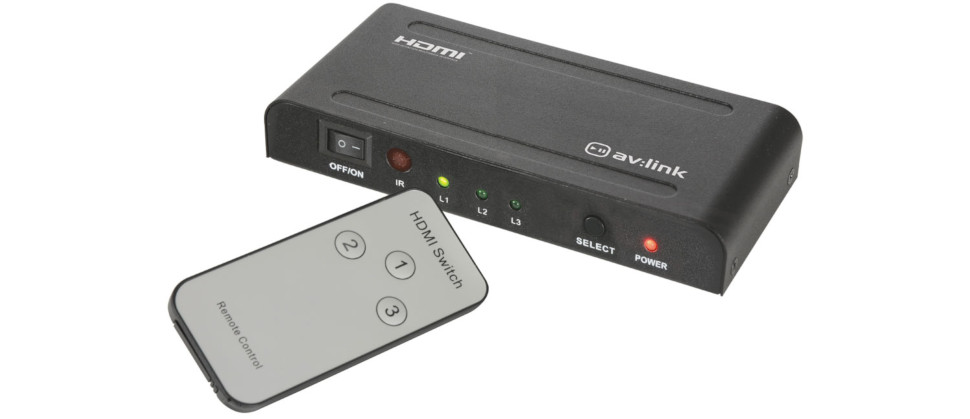

3 Way HDMI Switch with IR Remote Control
This slimline HDMI switch Model HDM31, will allow a single HDMI display to be connected to 3 (three ) HDMI sources and be capable of selecting these soures using the IR remote control or selection button on the units front.
The HDMI connections are Gold plated to ensure optimum signal transfer.

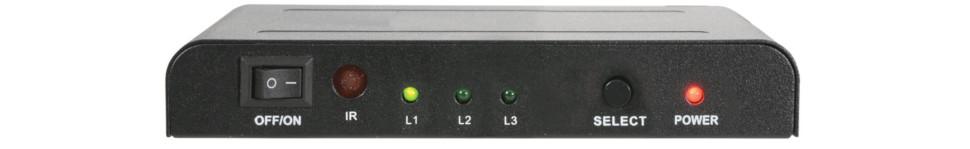

The LEDs on the front of the switch will keep you informed as to which of the HDMI inputs are live at any one time.
Features
- Sleek design with tough metal chassis
- Gold plated HDMI connections for optimum signal transfer
- Smart switching function, automatically switches to last live input
- Power and Live Input LEDs
- Supports up to full HD 1080p, 3D and 36bit deep colour image formats
- Supports DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD audio formats
- Supplied with IR remote control and mains adaptor
av:link 2x1 HDMI Switch 128.822uk
|
|
|
Specification
| HDMI version | 1.4a | |
| Video format | Up to 1080p @ 60Hz, 3D, 24/30/36 bit deep colour | |
| Audio format | DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD | |
| Max. bandwidth | 225MHz | |
| Max. baud rate | 2.25Gbps | |
| Operating temperature range | -15 to +55°C | |
| Battery : remote | CR2025 (supplied) | |
| Power adaptor | Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A | |
| Number of inputs | 3 | |
| Max. working current | 250mA | |
| Dimensions | 128x53x20 (mm) | |
| Weight | 140g |
