KEF - In ceiling Wall 8 ohm 234.6x88.8mm - Ci160.2CR

Item Code : Ci160.2CR



Special Notice: This Item is only sold when part of an installed Audio System.

Special Notice: This Item is only sold when part of an installed Audio System.

Product Details

KEF™   Architectural Speaker

KEF - KEF - In ceiling Wall 8 ohm 234.6x88.8mm - Ci160.2CR

Item Code: Ci160.2CR

Brand: KEF

Manufacturer: KEF


Important Notice.

This item is a trade only supplied & Installed Item.

This selected KEF Loudspeaker is only available for sale when part of an installed Audio Visual System, if it is required for you to purchase this as an individual item then please follow this link DealerLocator , to establish your nearest KEF recommended Retailers.

Description

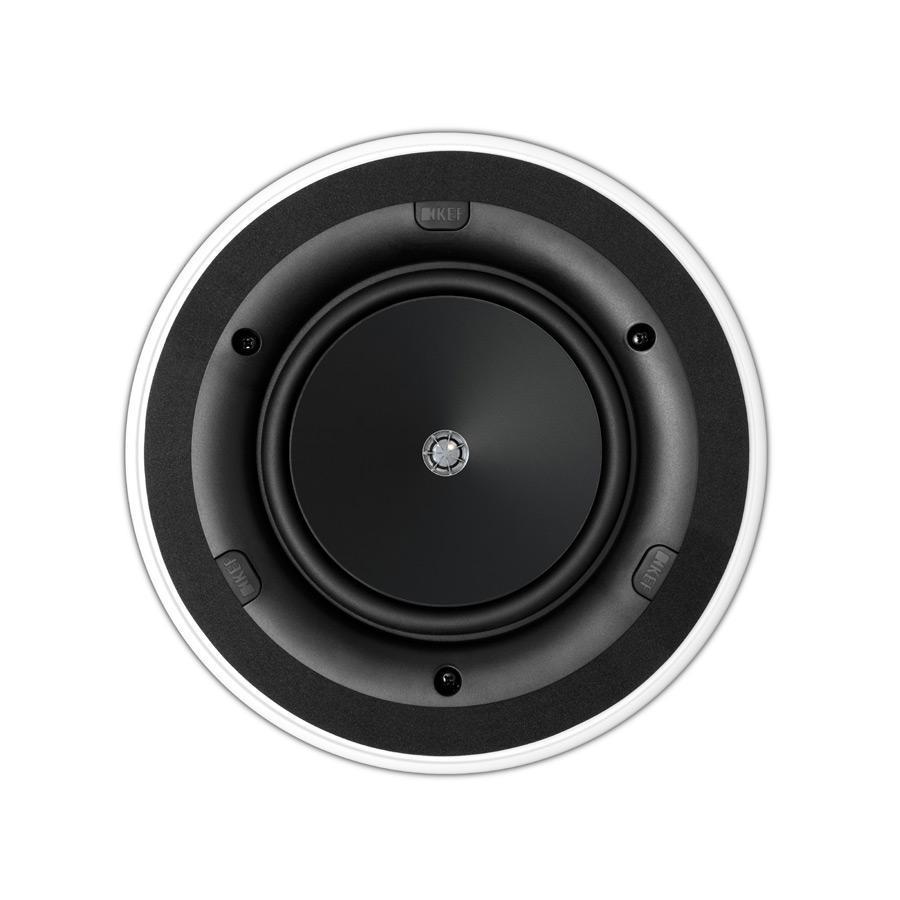

The Ci160.2CR in-ceiling speaker features allows sound to disperse more evenly throughout the room. The extremely shallow mounting depth allows you to install the Ci160.2CR where other speakers in its class won’t fit.

Ci-C Series offers an ideal introduction to the world of custom installation speakers. Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room.

Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the C Series fits unobtrusively into your home.

Features

  • UTB™ Ultra-Thin Bezel
  • 130mm (5.25in.) Uni-Q driver
  • 16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
  • Magnetic grille
  • Paintable grille and bezel
  • Weather Resistant
  • IP64 certified

Technical Drawing Ci160.2CR

Technical drawing with dimensions Ci160.2CR

Specification

Colour White
Nominal Impedance 8 Ω
Sensitivity 89dB
Crossover frequency 2.5kHz
Frequency Response 52Hz - 20kHz (±6dB) open backed
Drive Units LF: 160mm (6.5in.) Uni-Q
HF: 16mm (0.6in.)
Recommended Amplifier Power 10-100W
Product external dimensions H x W x D : 234.6mm x 88.7mm (9.24in x 3.49 in.)
Cut-out dimensions H x W : 476 x 114mm (18.74 x 4.49 in.)
Mounting depth from surface 196mm (7.71 in)
Net Weight 1.4kg (3.1 lbs)
Mounting depth from surface with back can 97.2mm (3.83 in)
