16-Port 100Mbps Switch - S16
Item Code : S16
100 Megabit Ethernet Switch

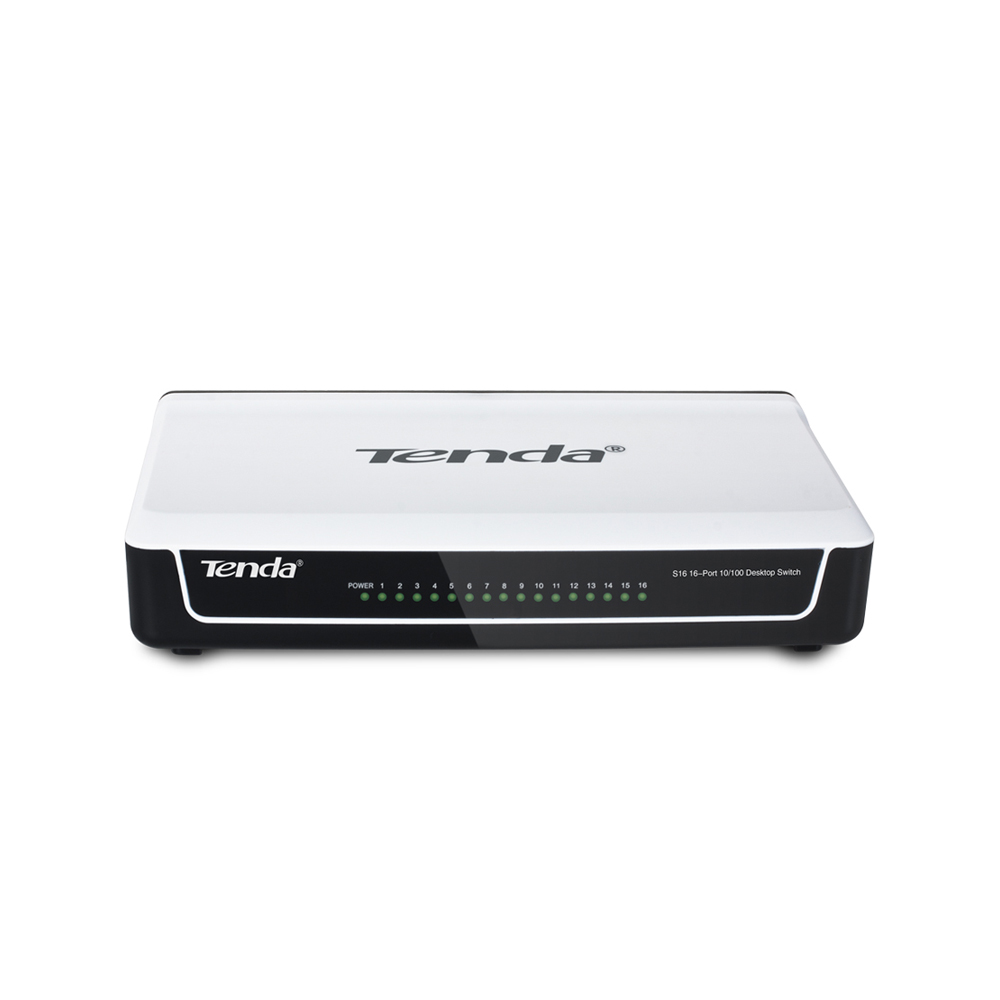

Tenda - 16-Port 100Mbps Switch - S16
Item Code: S16
Brand: Tenda
Manufacturer: Tenda
S16
Description
The Tenda 16-port Ethernet Switch S16 is a desktop switch specially designed for families and office use with 16 x 10/100 Mbps auto-negotiation ports with full duplex rate up to 200Mbps bring blazing fast Internet access.
Plug-and-play design makes installation easily in no time. No matter if you are a tech-savvy enthusiast or a first-time user the S16 is very easy and intuitive to setup without time-consuming operations, in fact the S16 is fully automated with no user intervention required.
With ultra-compact design the Tenda S16 also supports desktop and wall-mounting so you can put the S16 anywhere as you want and move flexibly.
Compatible with computer, printer, smart TVs, NAS, smart game console, IP-cameras, Tenda S16 makes your home network fun & easy.
Features
- 16 Autosensing 10/100Mbps switched ports with auto MDI/MDI-X crossover detection
- Compliant with IEEE802.3，IEEE802.3u，IEEE802.3X standard
- 16 x LED indicators display the connection status
- Store-and-forward mode
- Supports to connect with IP-camera
- Plug-and-play without configuration
- Up to 200Mbps full duplex bandwidth on each port
- Compact size fits into any environment
- Address Learning and Aging, and Data Flow Control for enhanced transmission

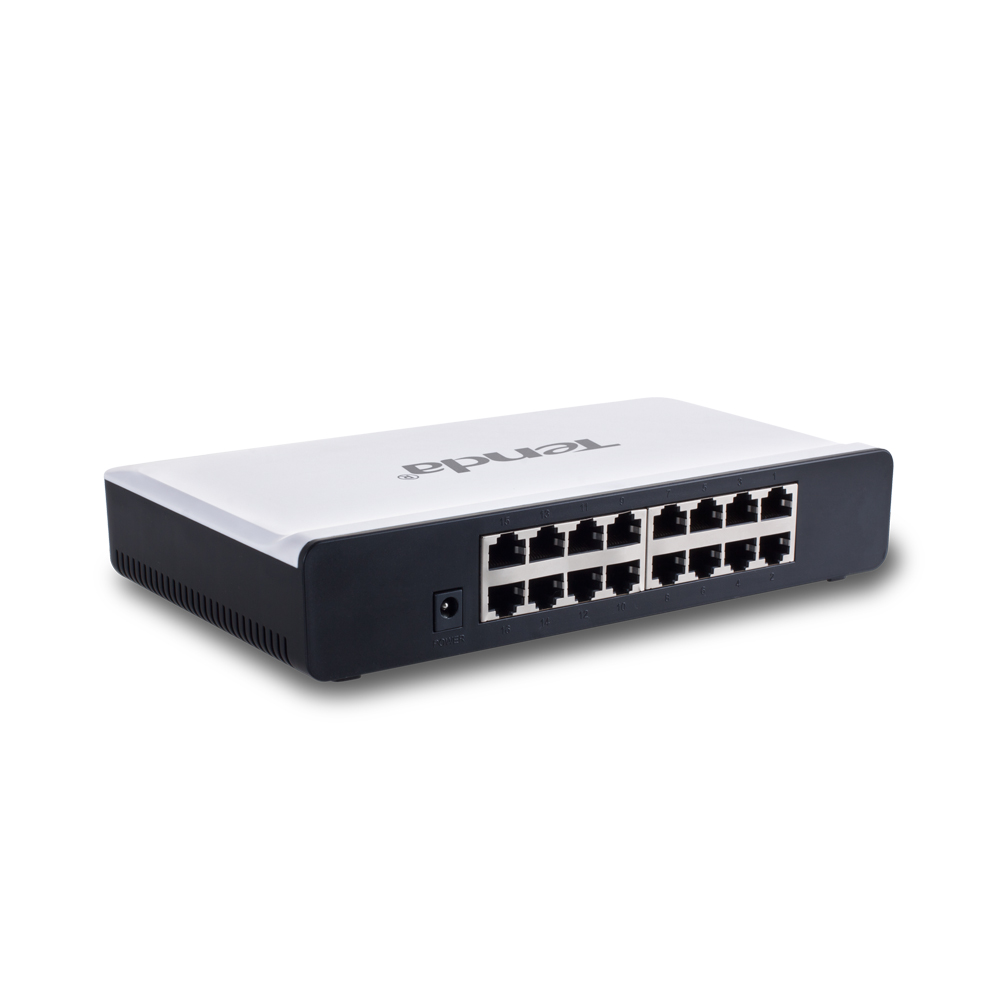

RJ45 Port View of S16
|
Specification
| Specification | ||
|---|---|---|
| Standard&Protocol | IEEE 802.3 IEEE 802.3u IEEE 802.3x | |
| Port | 16 x 10/100M auto-negotiation RJ 45 ports (Auto MDI/MDIX) | |
| Transmission Media | 10Base-T: UTP Cat 3( or better) 100Base-TX: UTP Cat5 1000Base-T: Cat.5e UTP | |
| Packet Forwarding Rate | 10Mbps：14880pps 100Mbps：148800pps | |
| Power | Output power: 9.0V 0.6A (external power adapter) Input Power :AC:100～240V；50/60Hz | |
| Dimension | 218mm x 135mm x 41.6mm（L x W x H） | |
| Indicator | 1 x power indicator 16 x status indicator | |
| Backbound Bandwidth | 3.2 Gbps | |
| MAC Address Table | 4K | |
| Power Consumption | Standby: 0.8W Maximum：2.15W | |
| Forwarding Mode | Store-and-Forward | |
| Access Control | CDMA/CD | |
| Temperature | Storage Temperature: -40℃~70℃ Operating Temperature: 0℃~40℃ | |
| Humidity | Storage Humidity: 5%~90% non-condensing Operating Humidity: 10%~90% non-condensing | |
| Certification | CE FCC RoHS | |
| Package Content | 1 x Installation Guide 1 x 16-port Ethernt Switch 1 x Power Adapter (9V 1A) | |
