5-Port 100Mbps Switch - S105V10.0
Item Code : S105V10.0
100 Megabit Ethernet Switch
Tenda - 5-Port 100Mbps Switch - S105V10.0
Item Code: S105V10.0
Brand: Tenda
Manufacturer: Tenda
S105V10.0
Description

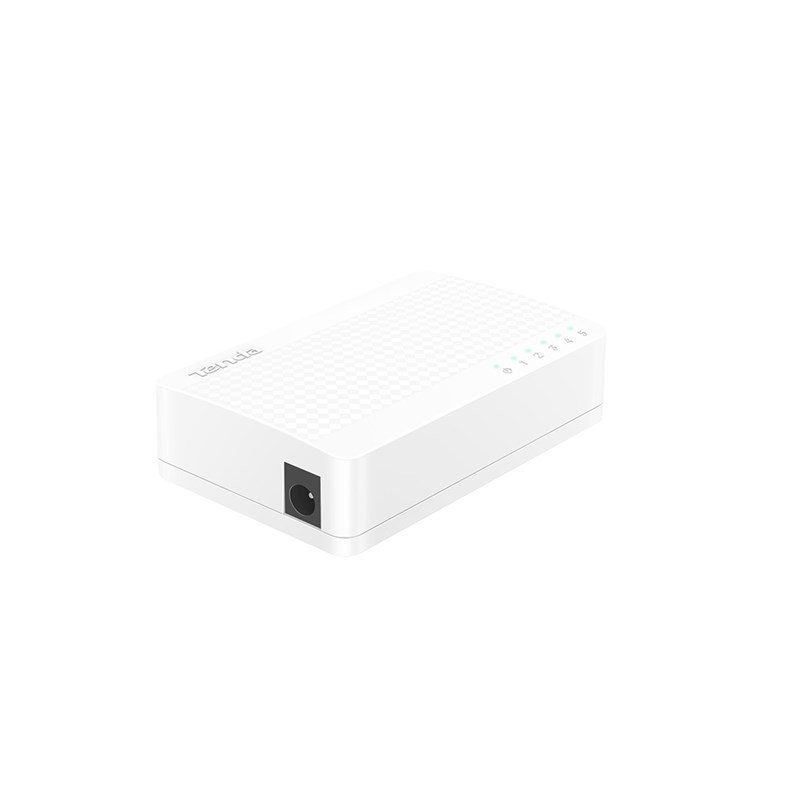

The Tenda 5-port Ethernet Switch S105 is a desktop switch specially designed for families and office use with 5 x 10/100 Mbps auto-negotiation ports with full duplex rate up to 200Mbps bring blazing fast Internet access.
Plug-and-play design makes installation easily in no time. No matter if you are a tech-savvy enthusiast or a first-time user the S105 is very easy and intuitive to setup without time-consuming operations, in fact the S105 is fully automated with no user intervention required.
With ultra-compact design the Tenda S105 also supports desktop and wall-mounting so you can put the S105 anywhere as you want and move flexibly.
Compatible with computer, printer, smart TVs, NAS, smart game console, IP-cameras, Tenda S105 makes your home network fun & easy.
Features
- 5 x 10/100 Mbps auto-negotiation RJ45 ports obtains the fastest possible connection
- Compliant with IEEE802.3，IEEE802.3u，IEEE802.3X standard
- 5 x LED indicators display the connection status
- Supports10/100M full duplex and half duplex
- Store-and-forward mode
- Supports MAC address auto learning and auto aging
- Supports to connect with IP-camera
- Plug-and-play without configuration
- Supports wall-mounting and desktop installation
RJ45 Port View of S105V10.0
|
|
Specification
| Specification | ||
|---|---|---|
| Standard&Protocol | IEEE 802.3 IEEE 802.3u IEEE 802.3x | |
| Port | 5 x 10/100M auto-negotiation RJ 45 ports (Auto MDI/MDIX) | |
| Transmission Media | 10Base-T: UTP Cat 3( or better) 100Base-TX: UTP Cat5 | |
| Packet Forwarding Rate | 10Mbps：14880pps 100Mbps：148800pps | |
| Power | Output power: 5.0V 0.6A (external power adapter) Input Power :AC:100～240V；50/60Hz | |
| Dimension | 82.00mm*52.00mm*22.30mm( L*W*H） | |
| Indicator | 1*power indicator 5*status indicator | |
| Backbound Bandwidth | 1.0Gbps | |
| MAC Address Table | 1K | |
| Power Consumption | Standby: 0.8W Maximum：1.59W | |
| Forwarding Mode | Store-and-Forward | |
| Access Control | CDMA/CD | |
| Temperature | Storage Temperature: -40℃~70℃ Operating Temperature: 0℃~40℃ | |
| Humidity | Storage Humidity: 5%~90% non-condensing Operating Humidity: 10%~90% non-condensing | |
| Certification | CE FCC RoHS | |
| Package Content | 1* Installation Guide 1 * 5-port Ethernt Switch 1* Power Adapter (5V0.6A) | |
