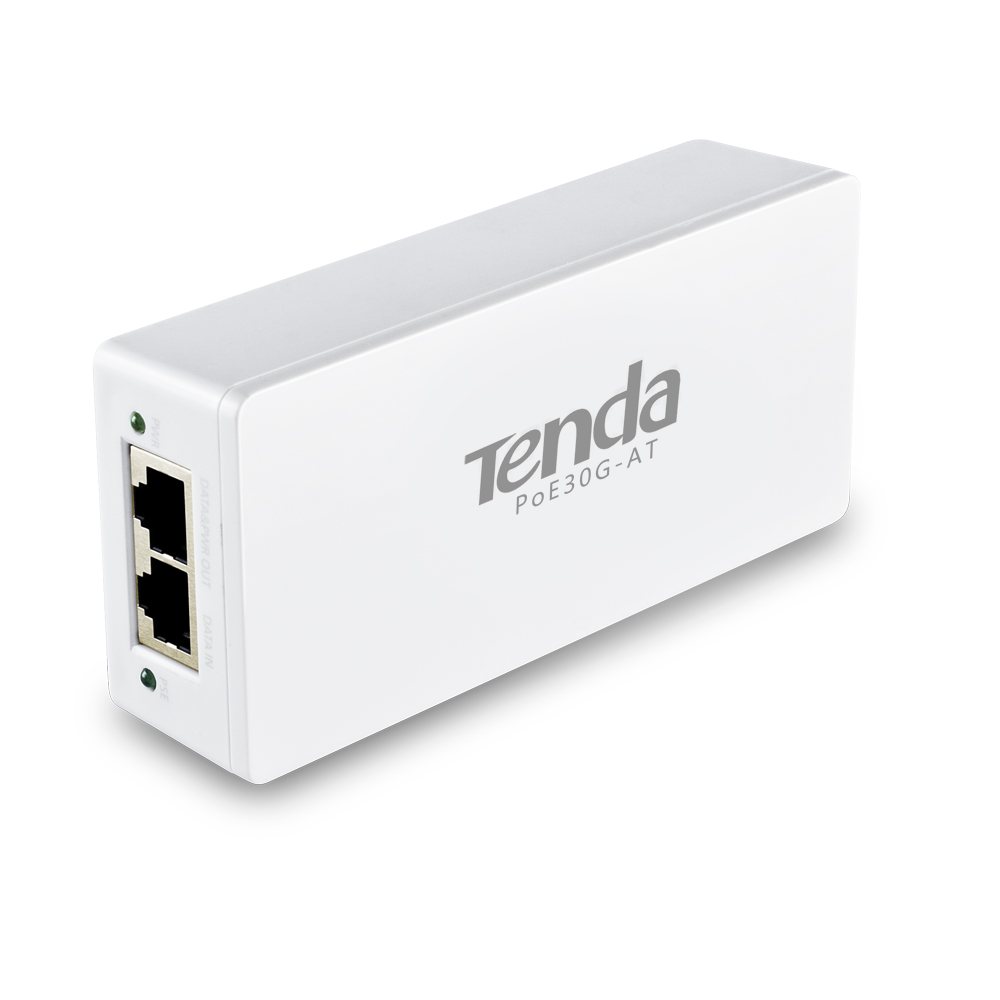

PoE30G-AT - PoE Injector 30Watt
Item Code : PoE30G-AT
POE Gigabit Ethernet Switch
Tenda - PoE30G-AT - PoE Injector 30Watt
Item Code: PoE30G-AT
Brand: Tenda
Manufacturer: Tenda
Description
PoE30G-AT / Switch / PoE Injector delivers up to 30W output power per port
The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully conforms to the standard of wtih 802.3, transmitting power through Ethernet cable, the maximum transmission distance can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power. In addition, the device can be used for Ethernet device IEEE802.3af/ compatible PoE power applications such as wireless AP, VoIP phone and web CAM. The power supply of Ethernet cable not only provides system reliability, traditional power grid expansion, but also simplifies the deployment of power lines.
Specification
| Description | PoE Injector | |
| Standard & Protocol | Compatible with:- IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3atStandard CSMA/CD, TCP/IP | |
| Features | Support the powered devices compatible with:- IEEE802.3af、 IEEE802.3at Standard | |
| Transmission range up to 100M Plug and play | ||
| Port | 1 GE port - 1 data&power output port supporting PoE | |
| Indicator | Power On (PWR) Power over Ethernet (PoE) | |
| Dimension | 131mm*60mm*33mm | |
| Power Output | 30W | |
| Operation Temperature | 0℃~40℃ | |
| Storage Temperature | -40℃~70℃ | |
| Operating Humidity | 10%~90% (noncondensing) | |
| Storage Humidity | 5%~90% (noncondensing) | |
| Certification | CE\FCC\ROHS |
