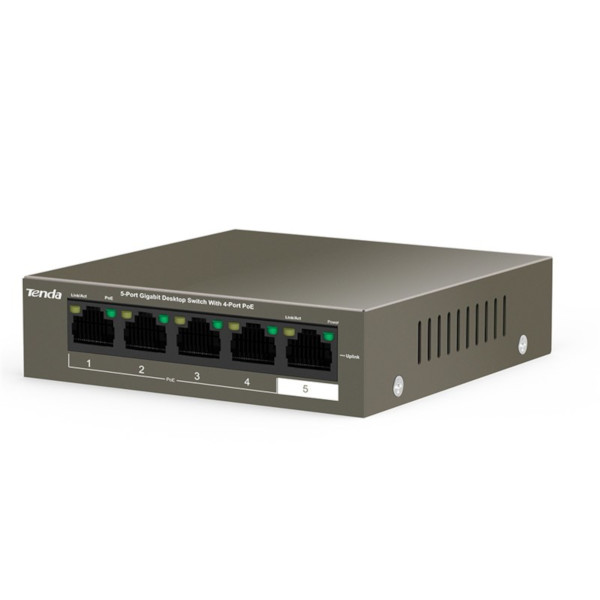

Switch 5-Port Gigabit Desktop Switch with 4-Port PoE
Item Code : TEG1105P-4-63W
Product Details
POE Gigabit Ethernet Switch
Tenda - Switch 5-Port Gigabit Desktop Switch with 4-Port PoE
Item Code: TEG1105P-4-63W
Bar Code: 6932849431308
Brand: Tenda
Manufacturer: Tenda
The TEG1105P-4-63W Ethernet Switch offers Power distribution Over Ethernet (PoE) with data rates of 5 x 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3 at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to APs, IP cameras, and IP phones and exchange data with them through CAT5e cables. It also provides simple management modes such as VLAN to help reduce cabling costs of IP terminals like APs and IP cameras.
Specification
Standard&Protocol
|
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
|
Indicator
|
5 x Link/Act per device
4 x PoE per device 1 x Power per device |
Interface
|
4 x 10/100/1000Base-T ports (Data and Power)
1 x 10/100/1000Base-T port (Data only)
|
Lightning Protection
|
6KV
|
Store & Forward
|
Yes
|
exchange capacity
|
10 Gbps
|
Packet Forwarding Rate
|
7.44Mpps |
RAM Data Buffer
|
1Mb
|
MAC Address Table
|
2K
|
PoE supply management
|
Port 1 to Port 4 support IEEE802.3at/af PoE standard
|
PoE through pin
|
1 2 4 5 +
3 6 7 8 -
|
Input Voltage
|
AC：100-240V～ 50/60Hz
|
Dimension
|
100 x 100 x 26mm ( W x D x H )
|
Power Consumption
|
in full configuration：<63W
PoE Max Power Supply：58W |
Port Features
|
Standard:
The switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN:
In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the number 5 port.
Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
