Tenda i12 - Wireless 2.4GHz 300Mbps Ceiling Wall Access Point
Item Code : i12
WiFi Access Points Indoor
Tenda - Tenda i12 - Wireless 2.4GHz 300Mbps Ceiling Wall Access Point
Item Code: i12
Brand: Tenda

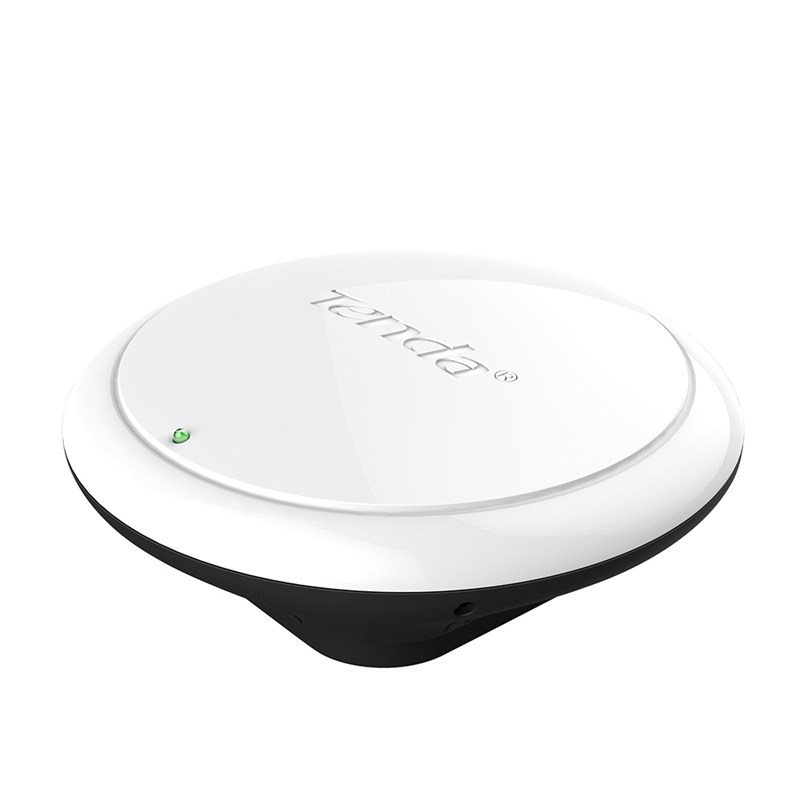

Tenda i12 - Wireless 2.4GHz 300Mbps Ceiling Wall Access Point
This ceiling or wall mounted Wireless Access Point (WiFi Transmitter/Receiver) model Tenda i12 is a stable and easy-to-use wireless access point designed for wireless coverage for small businesses or large homes. It is suitable for WIFI coverage in hotels, small and medium in size, bars, cafes. The Tenda i12 operates in the 2.4GHz band with wireless speeds of up to 300Mbps. The i12 has two high-gain omni-directional MIMO antenna inside, that give a strong Wi-Fi signal penetration of coverage. With the Simple design and elegant appearance, it can be directly installed on the walls and ceilings, which will not affect the original building structure and can be treated as the decoration.
Related Items
| WiFi Controller |

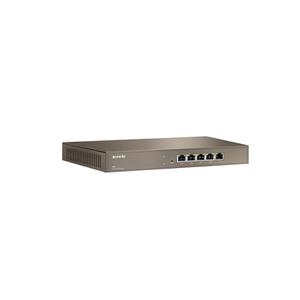

Tenda M3 - Access Controller with 5 - Gigabit Ports
Item code: Tenda - M3 |
Specification
| Dimension | 144.2*144.2*40.12mm | |
| Frequency Range | 2.4GHz | |
| Maximum wireless speed | 300Mbps | |
| Maximum Concurrent Clients | 40 | |
| Interface | 1*GE port | |
| Antenna | Internal 2* 2dBi Omni | |
| Maximum Power Consumption | 11W | |
| LED | SYS | |
| Power Supply | 802.3at PoE/DC 12V=1A | |
| Operating Mode | AP/Client+AP/Repeater | |
| Standard&Protocol | IEEE 802.11n/g/b | |
| Features | Enable/Disable Wireless Radio | |
| SSID Hidden | Wireless Client isolation | |
| Sensitivity Threshold | WMM Capable | |
| Wireless Multicast Forwarding | APSD Capable | |
| Wireless Access Control | SSID-To-VLAN tagging | |
| Security | 64/128 WEP WPA-PSK WPA2-PSK WPA&WPA2-PSK WPA WPA2 | |
| Transmit Power | Adjustable power by 1dBm | |
| DHCP Server | DHCP Server Clients list | |
| Schedule Reboot | Support | |
| Page Timeout | Support | |
| Network Diagnoses | Ping Channel Scan | |
| Management Tool | Time&Date Setting System Log Firmware update Backup/Restore Configuration Username Managerment | |

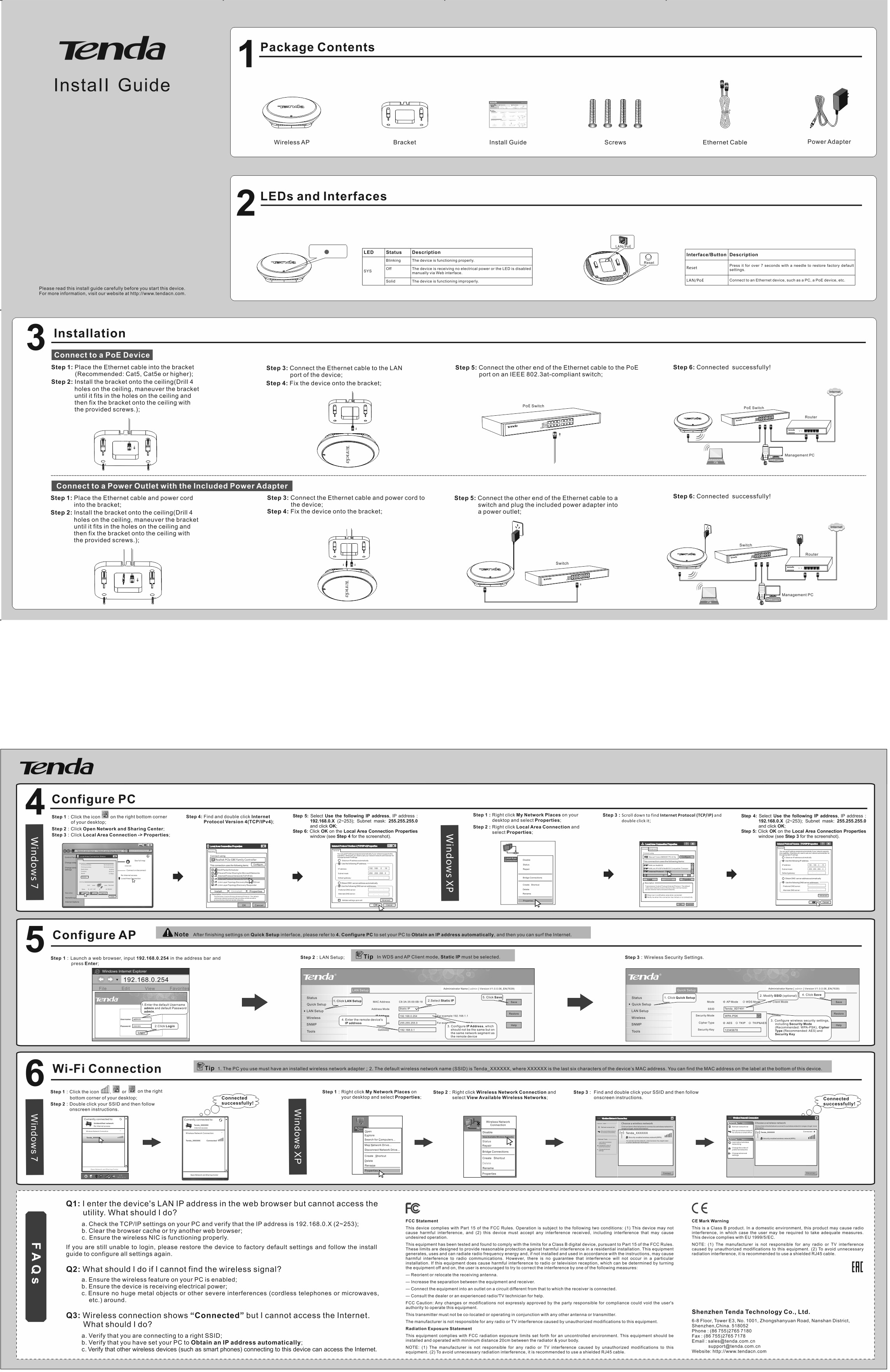

| Package Content | Wireless N300 Access Point i12 1*Mounting Bracket 1*Quick Installation Guide 1*Ethernet cable 1*Power Adapter 4*Screws 4*Plastic Bolt | |
| Temperature | -20℃ ~ 45℃ -30℃ ~ 70℃ | |
| Humidity | 10%~90% non-condensing 10%~90% non-condensing | |
| Default Settings | IP Address > 192.168.0.254 Login Username > admin Login Password > admin |
