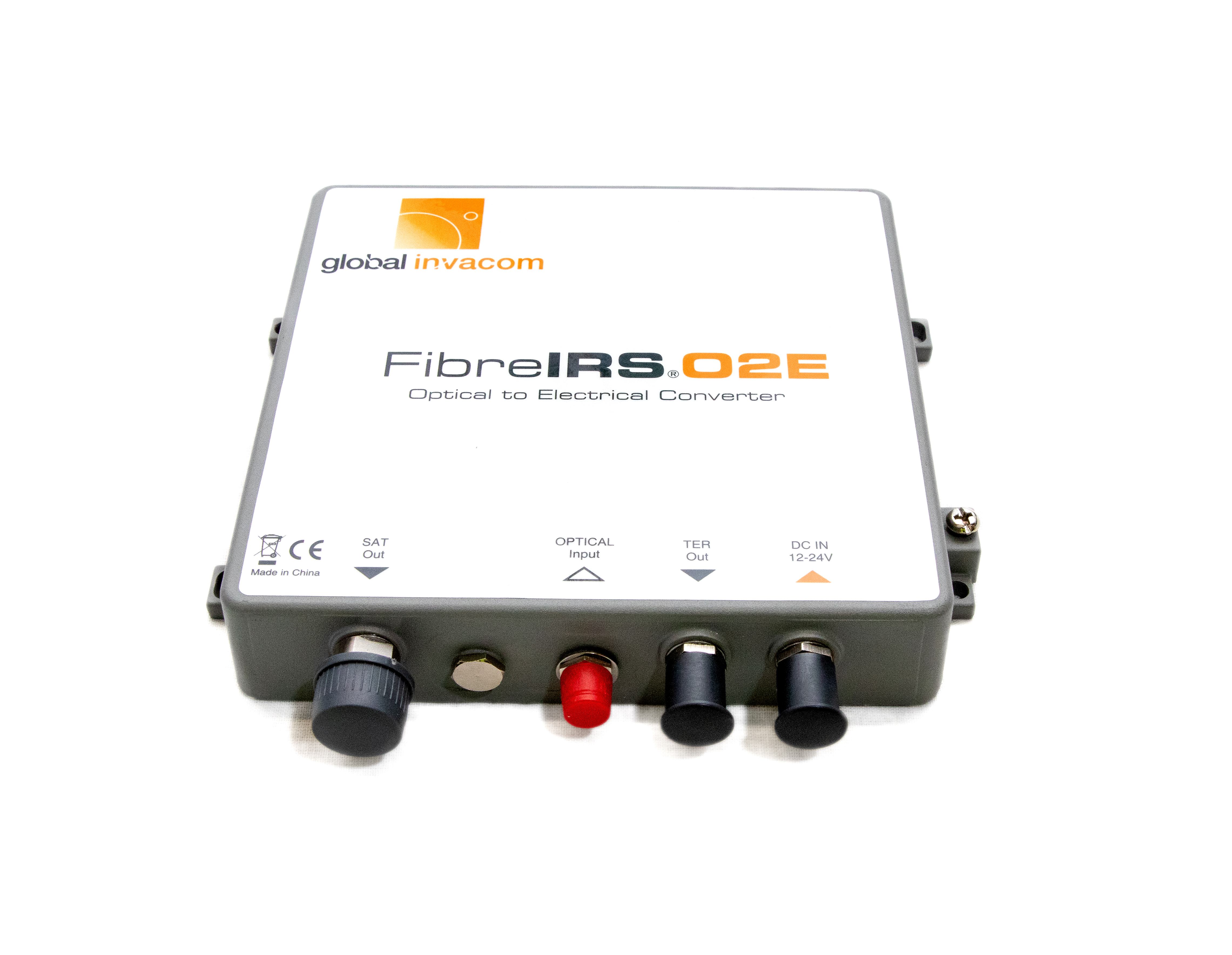

Optical Fibre TV - Optical to Coax Converter
Global Invacom - O2E
Item Code: F813006
Brand: Global Invacom
Manufacturer: Global Invacom
O2E
Description
The O2E has been designed to be used in conjunction with either the ODU32 or the fibre optic LNB to increase the number of subscribers that can be connected to a single dish. If used in conjunction with the fibre optic LNB it can increase the distance from the dish to a large FIRS system.
Features
- Expands fibre systems to over 2000 GTU’s
- For use with GI optical LNB or ODU32
- Fully weatherproof (IP65)
- Wholeband cable supplied with unit
- Powered externally or by connected ODU32
Specification
| Product Part No. | O2E | F813006 | ||
| Optical input | Optical Wavelength | 1100-1650nm | ||
| Return loss | 20dB | |||
| Input optical power Subject to system performance specifications | -15 to -3dBm | |||
| Satellite (Electrical) | Frequency | 950-5450MHz | ||
| Nominal impedance | 50 ohm | |||
| Output power | 80dB&micr;V | |||
| Gain variation across band | 4dB Max. | |||
| DTT,DAB and FM (Electrical) | RF frequency range DTT | 470-862MHz | ||
| RF frequency range DAB | 174-240MHz | |||
| RF frequency range FM | 88-108MHz | |||
| Nominal impedance | 75 ohm | |||
| Return loss | 9dB | |||
| DTT output power (dBµV) DAB power levels need to be -14dB with respect to DTT | 87dB&mico;V | |||
| Gain variation across band | 4dB | |||
| 950-2150MHz rejection | 20dB | |||
| DC specification | Input voltage range (external) | 10V to 24V | ||
| Current consumption | 65mA when using a 20V power source. | |||
| Connectors | Input Fibre Optic | FC/PC | ||
| Satellite output | N | |||
| DTT/DAB/FM output | F | |||
| Power supply | F | |||
| Enviromental Specification | Operating temperature | - 30 to 60°C | ||
| Storage temperature | -30 to 60°C | |||
| Optical cabling | Fibre type | Single mode | ||
| Standard | GI-approved G657a | |||
| Dimensions | Size inc. connectors | 160x167x30 mm | ||
| Weight | 450g |
