PRODMSD11

Item Code : PRODMSD11



Product Details

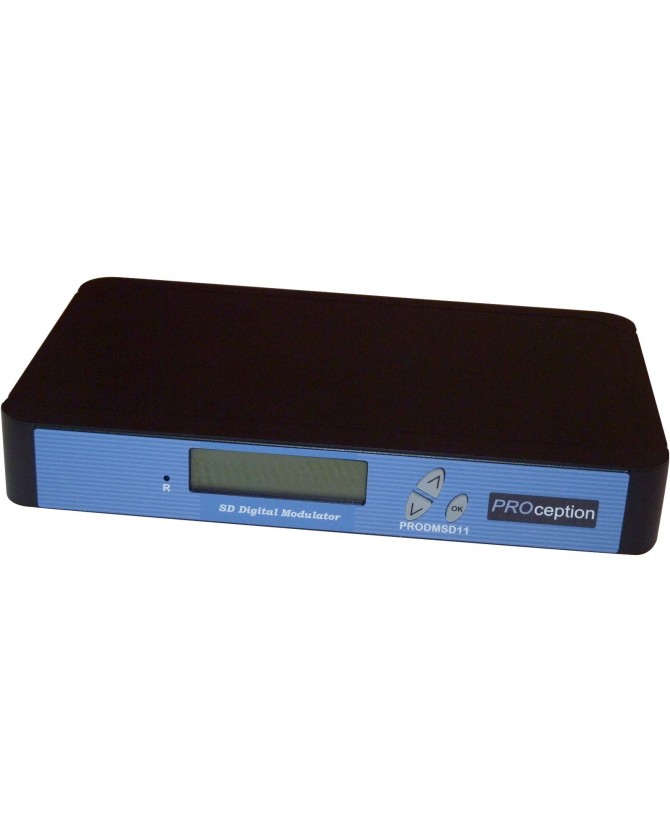

Proception™   Digital Modulator

Proception - PRODMSD11

Item Code: PRODMSD11

Brand: Proception

ProCeption - PRODMSD11

Products description

The PROception Digital Modulator is perfect for multi-video distribution solutions in both home entertainment system and commercial/institutional markets. Use for converting any composite A/V analogue signals into a DVB-T multiplex for viewing on a digital TV system.

Installations and applications include hotels, motels, sports bars, restaurants, hospitals, casinos, business and university campuses, etc.

Typical applications would include CCTV single / quad output, locally produced video, distribution of Freesat, Sky, Virgin, BT, DVD, PC, CCTV etc.

The channel produced appears in the DTT channel listing along with the other TV channels.

Features:

  • Converts a composite A/V signal into a flexible DVB-T Multiplex.
  • S-Video, Component and Composite inputs.
  • Fully programmable via LCD control (on front panel) or via GUI interface.
  • All interfaces designed to be clear, simple and user-friendly. Easy to install with factory pre-set for a typical installation
  • Output Level 105 dBuV.
  • Includes both manual gain control (+/- 20 dB) and software gain adjustment of (+/- 20 dB) giving total range capability of (+/- 40 dB) to eliminate problems due to high signal strength.
  • LCN Function, fully agile setting.
  • Easy integration into an existing network.
  • RJ45 port for easy setup from remote location.
  • Cool & silent operation.
  • 2K & 8K Carrier Modes.
  • Firmware up-gradeable.

Specifications

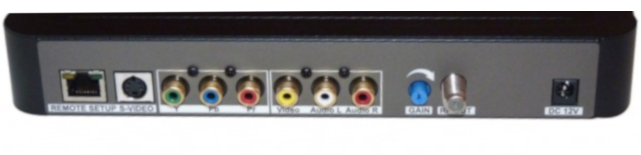

Rear View of Modulator Model PRODMSD11
INPUT
Video Input S-Video, Component, Composite
Video Input Level 0.7 - 1.4 V (peak-peak)
Video ModePAL / NTSC
Audio InputStereo
Audio Input Level0.4 - 0.8 V (peak-peak)
Input ConnectorsS-Video
YPbPr component input (Video)
Composite input (Video)
L/R channel Audio input (Audio)
Input Impedance75 ohm
OUTPUT
Frequency Range470 MHz - 862 MHz
Output Level105 dBuV
Output Impedance75 ohm
Channel Bandwidth7/8 MHz
Channel Level Adjustment20 dB typical (Manual Control)
20 db (Software)
MER 33 dB min
Connector TypeF-type female
Modulation
Video ResolutionPAL 720 x 576 @25 fps
NTSC 720 X 480 @30 fps
Video Compression MPEG-2
Audio Compression MPEG1 Layer II
LCN Yes
Guard Intervals 1/4, 1/8, 1/16, 1/32
Code Rate (FEC) 2/3, 3/4, 5/6, 7/8
Constellations 16 QAM / 64 QAM
General
Power Supply 12 VDC 1.5 A
Consumption 500 mA
Languages English
Operating Temperature +32F to +113F (0C to +45C)
Storage Temperature

+14F to +140F (-10C to +60C)

Dimensions 236 mm x 155 mm x 35 mm
Weight 880 g

Specifications are subject to change without prior notice.
