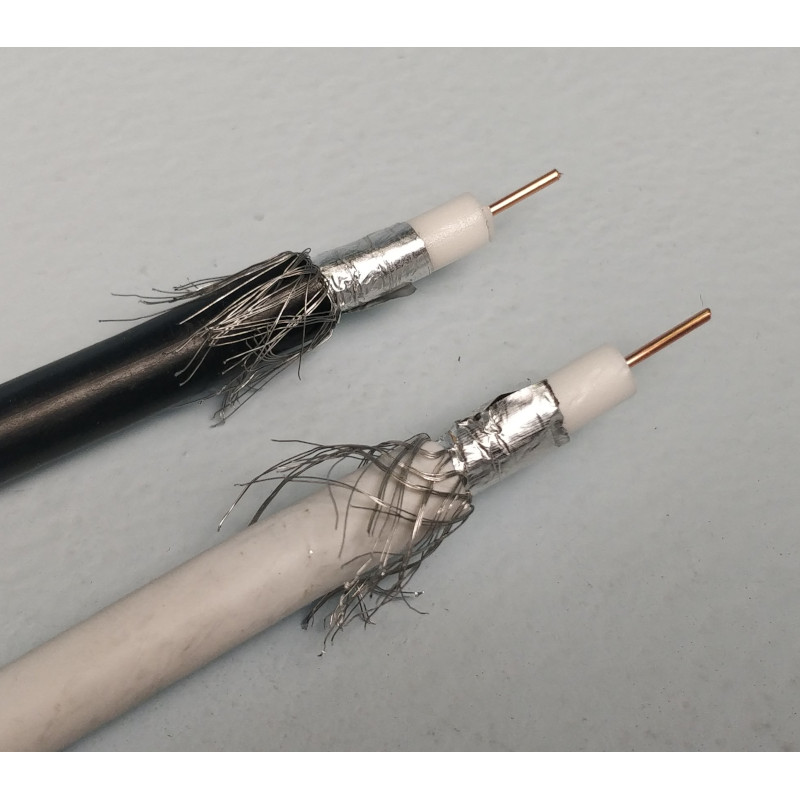

RG6 Coaxial Cable
Item Code : RG6-BLK-100M
Colour
Cable Length
Special Notice: Price £0.42p per meter, Generous Discounts for Quantity.
Special Notice: Price £0.42p per meter, Generous Discounts for Quantity.
Product Details
JW Hardy Coaxial Cables, TV
JW Hardy - RG6 Coaxial Cable
Item Code: RG6
Brand: JW Hardy
Manufacturer: .
Description
Budget Coax Cable, used for domestic TV, Satellite and Cable TV systems.
This cable is supplied in convenient lengths of:- 5, 10, 20, 30 or 45 Meters; when cut from the Reel, where Longer lengths of cable are required; we supply by the reel where generous discounts are given.
This cable, is supplied in cut lengths or by 100 Meter or 250 Meter reels.
Features
- 75 ohm
- Low Loss
- Double Screened
- PVC Sheath
- Sheath Colour Black or White
Specification
| Mechanical Specification | ||
|---|---|---|
| Inner Conductor: | 1.00mm diameter; Copper Clad Steel | |
| Dielectric: | 4.8mm diameter; Foamed Polyethylene Insulation | |
| Screen 1: | Aluminium Foil Tape | |
| Screen 2: | Aluminium Wire | |
| Screen 2 Coverage: | >38% | |
| Sheath: | 6.55mm diameter; PVC | |
| Sheath colour: | Black or White | |
| Electrical Specification | ||
| DC Resistance Inner Conductor: |
<106 ohm per Kilo Meter at 20deg. C | |
| DC Resistance Screen Conductor: |
< 79 ohm per Kilo Meter at 20deg. C | |
| Characteristic Impedance: |
75 ohm | |
| Capacitance: | 53pF per Meter | |
| Velocity Ratio: | 0.80 (80%) | |
| Attenuation dB per 100Meter at 20deg. C: |
10MHz < 2.0 50MHz <5.9 100MHz <7.0 200 MHz <9.5 460MHz <16.0 860MHz < 21.0 1000MHz<22.5 |
|
| Return Loss: | 5-470MHz >22.5 470-862MHz >19.5 862-2150MHz >17.5 |
|
