SpeakON - Chassis Plug 8 pole, cable solder fix - NL8MPR
Item Code : SpeakON - Chassis Plug 8 pole, cable solder fix - NL8MPR
Product Details
Loud Speaker Connection Patch Panels
Neutrik - SpeakON - Chassis Plug 8 pole, cable solder fix - NL8MPR
Item Code: SpeakON - Chassis Plug 8 pole, cable solder fix - NL8MPR
Brand: Neutrik
Manufacturer: Penn Elcom
SpeakON - Chassis Plug 8 pole, cable solder fix - NL8MPR
Description

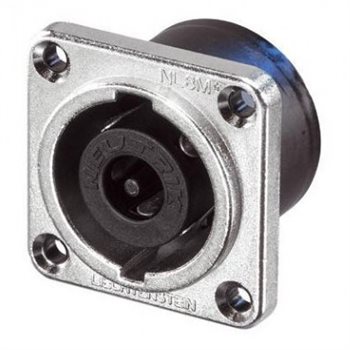

NL8MPR 8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16" flat tabs The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.Features
- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal flange
- Airtight design - optimized for speaker applications

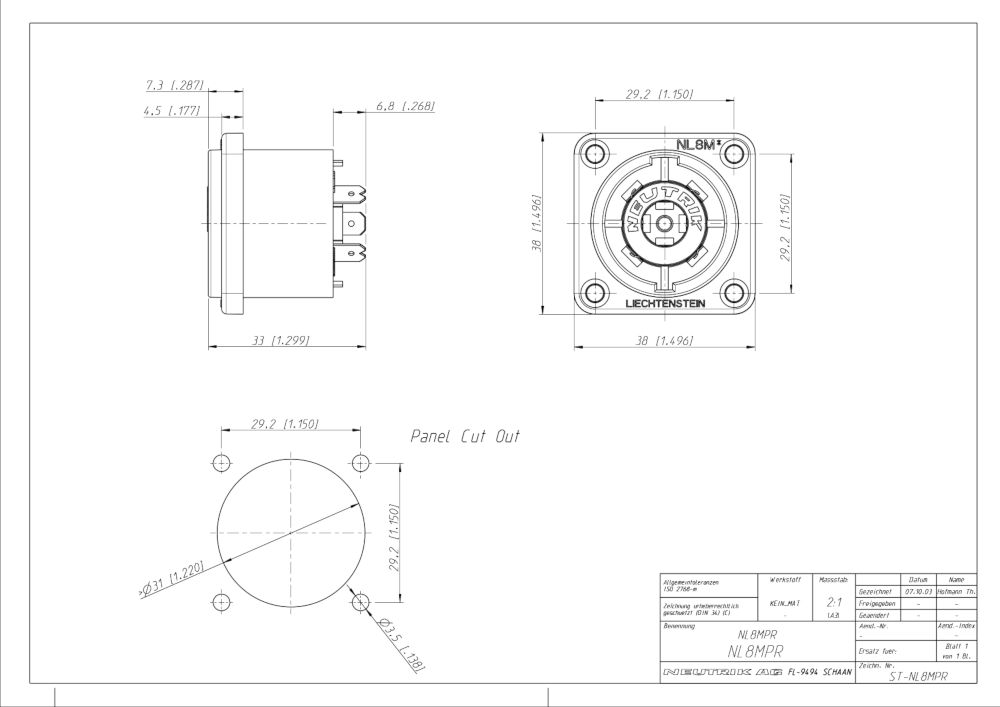

Technical drawing of SpeakON - Chassis Plug 8 pole, cable solder fix - NL8MPR
|

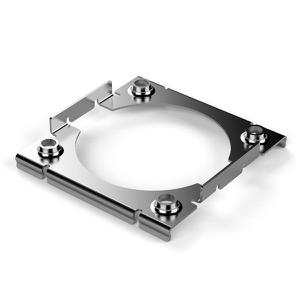

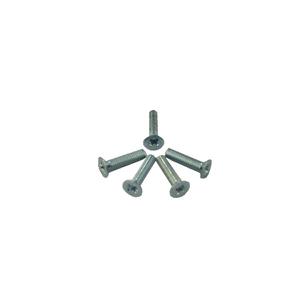

Related Items
Specification
| Product | |
| Title | NL8MPR |
| Connection Type | speakON |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 1 GΩ (after dampheat) |
| Rated current per contact | 30 A rms continuous |
| Rated current per contact | 40 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Wiresize | |
| Locking device | Quick Lock |
| Chassis shape | square G-size flange |
| Layout | four thru holes |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Bronze (CuSn6) |
| Shell | Polyamide (PA 6 30 % GR) Ni |
| Environmental | |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
