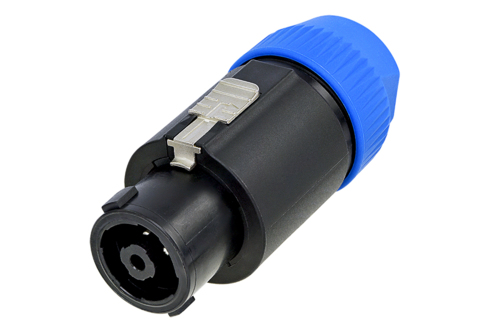

SpeakON - Inline Socket 8 pole, cable screw fix - NL8FC
Item Code : SpeakON - Inline Socket 8 pole, cable screw or solder fix - NL8FC
Product Details
Loud Speaker Connection Patch Panels
Neutrik - SpeakON - Inline Socket 8 pole, cable screw fix - NL8FC
Item Code: SpeakON - Inline Socket 8 pole, cable screw or solder fix - NL8FC
Brand: Neutrik
Manufacturer: Penn Elcom
SpeakON - Inline Socket 8 pole, cable screw or solder fix - NL8FC
Description
NL8FC 8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.Features
- Current rating 30 A rms continuous
- Reliable and robust, easy and fast to assemble
- Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
- Accurate and dependable twist lock latching system "Quick Lock"
- High impact material for insert and housing, long-lasting and dependable
- Chuck type strain relief system for secure clamping of cable

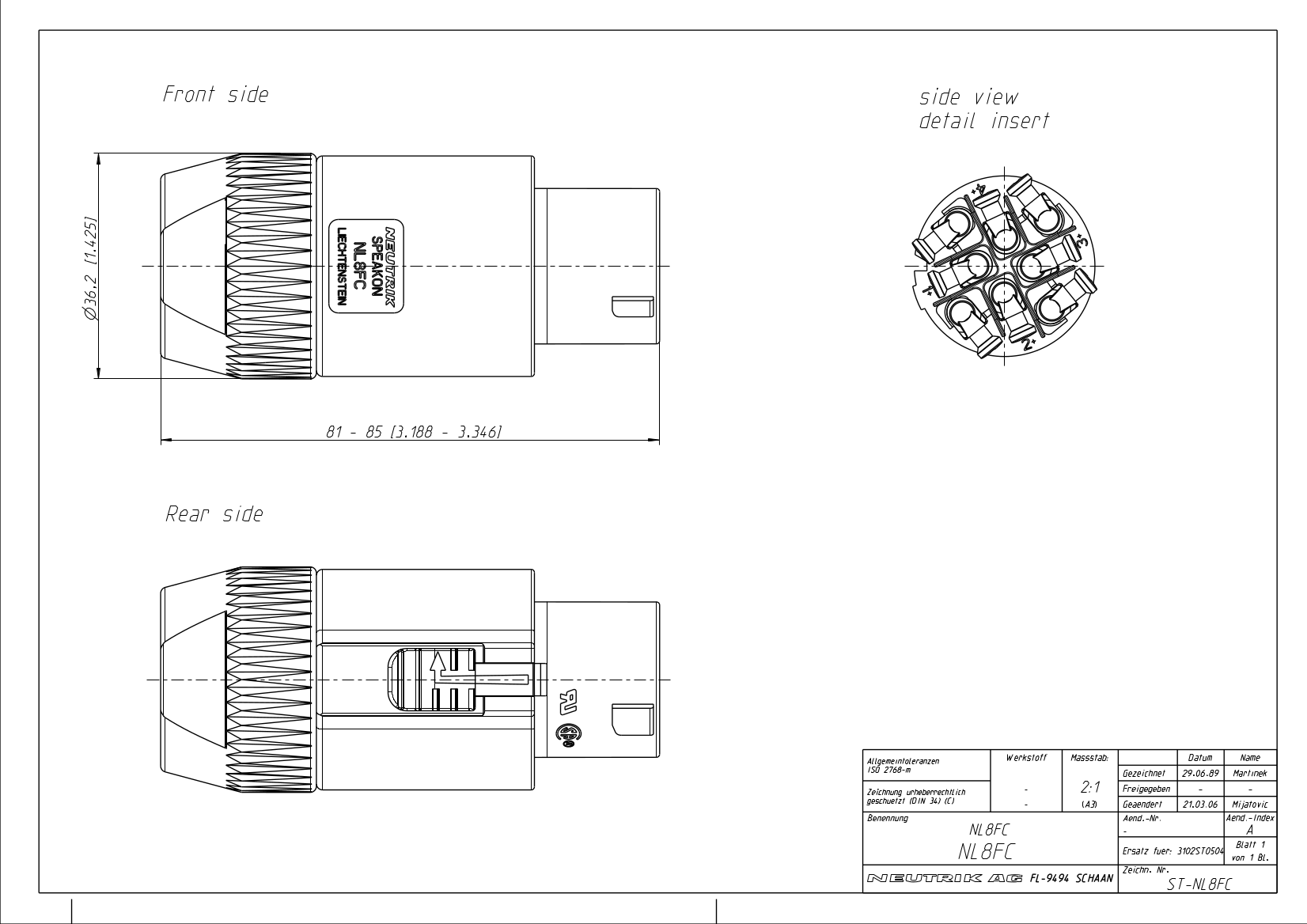

Technical drawing of SpeakON - Inline Socket 8 pole, cable screw or solder fix - NL8FC
|
Specification
| Product | |
| Title | NL8FC |
| Connection Type | speakON |
| Gender | female |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 1 GΩ (after dampheat) |
| Rated current per contact | 30 A rms continuous |
| Rated current per contact | 40 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V (Insulation) |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Cable O.D. | 8 - 20 mm |
| Cable retention | ≥ 220 N (subject to cable O.D. and material) |
| Lifetime | > 5000 mating cycles |
| Wiresize | 4 mm² |
| Wiresize | 12 AWG |
| Wiring | screw type terminals or soldering |
| Locking device | Quick Lock (latch) |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | PBTP 20 % GR |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Polyamide (PA 6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
