Audio Data Pair Cable - EcoFlex LSZH

Item Code : AudioDataPair-EcoFlex-Purple



Product Details

Van Damme™   Single Pair - Audio/Data Cable

Van Damme - Audio Data Pair Cable - EcoFlex LSZH

Item Code: AudioDataPair-EcoFlex-Purple

Brand: Van Damme

Manufacturer: Van Damme

AudioDataPair-EcoFlex-Purple

Description

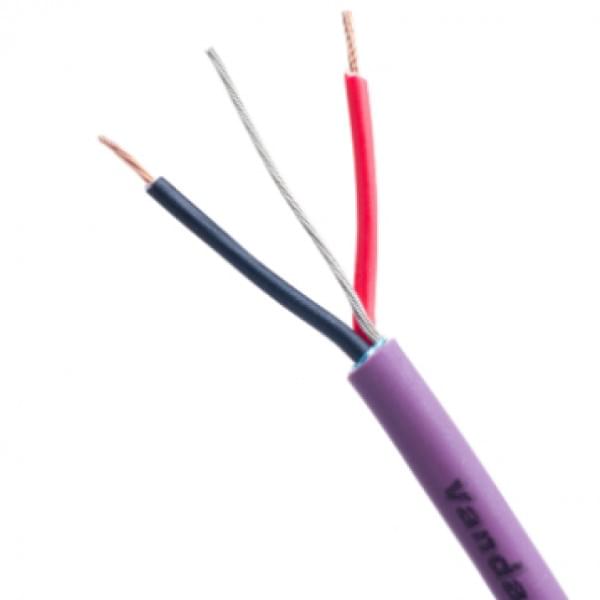

Van Damme Purple Series Digilog Ecoflex is a Low Smoke Zero Halogen (LSZH) jacketed audio data single pair specifically for installation use.

The use of LSZH cables is a specified essential in public buildings and new build construction projects.

Based electrically and mechanically on the Van Damme Green Series range this cable will carry AES/EBU and/or analogue balanced audio as well as paired data signals such as RS485, RS422 and DMX512.

Applications include Any 100 to 110 Ohm balanced data application such as RS422, RS485, DMX512 and timecode

Installation in marine vessels, schools and colleges, government premises and public buildings

Equipment rack wiring where LSZH materials have been specified

For the transmission of analogue and digital audio, paired data and midi signals in an installation environment.

Jacket material specified as the thermoplastic polymer SHF-1; compliant with IEC 60092-360:2014

Electrical Installations in ships - Sheathing materials for shipboard power and communication cables

Fully tested and compliant with the following IEC standards: IEC 60332.1 Fire retardancy of a single cable; IEC 60754.1 Amount of Halogen Gas Emissions; IEC 60754.2 Degree of acidity of released gases; IEC 61034.2 Measurement of smoke density

Ultra-pure oxygen free copper for outstanding Analogue Sound Signal integrity.

Specification

Mechanical Specification Conductor 7 x 0.20 mm bare ultra-pure oxygen-free copper
Conductor size 7 x 0.20 mm,
0.22 mm2,
AWG 24/7.
Insulation Foam skin polyethylene,
Red/Blue
Insulation diameter 1.4 ± 0.10 mm
Drain wire 7 x 0.20 mm tinned ultra-pure oxygen-free copper
Drain wire size 7 x 0.20 mm,
0.22 mm2,
AWG 24/7
Screen 24 µm Aluminium/Polyester
Foil > 150% coverage
Jacket material SHF-1 LSZH Polymer
Overall diameter 3.9 ± 0.15 mm
Colour Red Lilac,
RAL 4001
Bend radius 15 x overall diameter
Operating temperature -35 to +70 ⁰C
Electrical Specification Resistance Conductor < 90 Ohm/km
Insulation > 5000 MOhm/km
Capacitance 40 pF/m Core to core
80 pF/m Core to screen
Impedance 1 -4 MHz 110 ± 20% Ohms
