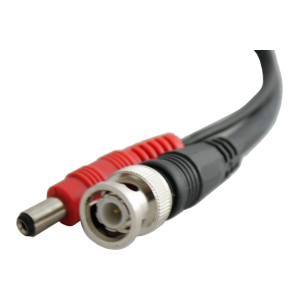

RG59 Lead fitted with BNC & DC Connectors
Item Code : RG59-CCTV-Lead-BLK-10M
Lead length
JW Hardy BNC Type Equipment Lead.
JW Hardy - RG59 Lead fitted with BNC & DC Connectors
Item Code: RG59-CCTV-Lead
Brand: JW Hardy
Manufacturer: .
Description
CCTV Lead of BNC plug to BNC plug plus DC socket to DC plug, this combination lead comprises of an RG59 coax cable for Video Signal and Twin Copper Cable for Camera Power needs.
The coaxial cable has a solid copper inner conductor.
The Leads are supplied in convenient lengths of:- 10, 20, 30, 40 and 50 Meters.
The foam dielectric of the coax cable is injected with inert nitrogen gas, this helps in preventing moisture from entering the cable. The foam dielectric also makes the cable more robust and less susceptible to kinking during installation, ensuring the signals path is not disrupted by cable distortion enabling a consistent impedance path of 75 ohms.
Features
- 75 ohm
- Low Loss
- Double Screened coax cable
- PVC Sheath
- Sheath Colour Black
- Signal Connectors of BNC plug to BNC plug
- DC Connectors of DC plug to DC Socket
- Combined Coax and Power Cable
Specification
| Mechanical Specification | ||
|---|---|---|
| Inner Conductor: | Copper | |
| Dielectric: | Foamed Polyethylene Insulation | |
| Screen 1: | Aluminium Foil Tape | |
| Screen 2: | Copper Wire | |
| Sheath: | PVC | |
| Sheath colour: | Black | |
| Electrical Specification | ||
| Characteristic Impedance: |
75 ohm | |
