Product Details
Triax Euro Module Black
Triax - Triax - Black TV / Radio / Sat
Item Code: 304 263
Brand: Triax
Manufacturer: Triax
Triax -Multimedia Euro Module System

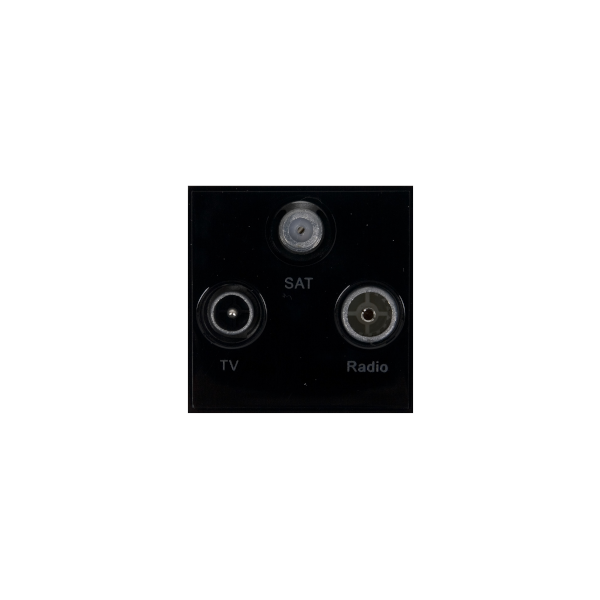

This euro module has 3 ports TV, Sat 1, Radio, and requires one coaxial feed cable. This module has the size name of `Full module` with a size of 50 x 50mm.
Product description:
Triplexed (TV/Radio/Sat) Module Black (50 x 50mm)
Specifications
ORDER INFORMATION | |
---|---|
EAN Number | 5702663042636
|
FREQUENCY | |
Frequency Range FM | 87.5...230 MHz |
Frequency Range TV | 47...68/470...862 MHz |
Frequency Range SAT | 950...2300 MHz |
LOSS | |
Through Loss IN-FM | 3.0 dB |
Through Loss IN-TV | 2.0 dB |
Through Loss IN-SAT | 3.0 dB |
OPERATIONAL | |
DC Pass through SAT | Yes |
CONNECTORS | |
Connector FM | IEC-female |
Connector TV | IEC-male |
Connector SAT | F-female |
MECHANICAL | |
Design | UK Grid style, 50x50mm |
Product Height | 50 mm |
Product Width | 50 mm |
Colour | Black |
Net Weight | 0,090 kg |
Tara Weight | 0,019 kg |
Total Weight | 0,109 kg |
Remarks | Screened Single Terminal and Clamp cable entry Fits 15mm Patress DC through power On SAT |
