Triax - Black TV / Sat

Item Code : 304 261



Product Details

Triax™   Triax Euro Module Black

Triax - Triax - Black TV / Sat

Item Code: 304 261

Brand: Triax

Manufacturer: Triax

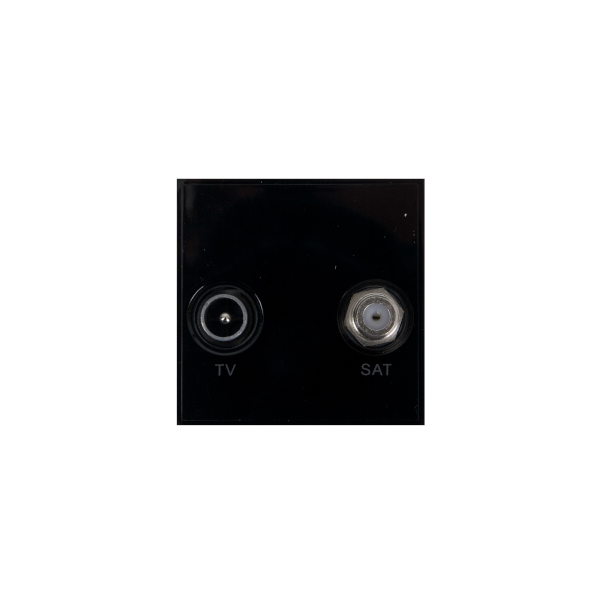

Triax -Multimedia Euro Module System

This euro module has 2 ports, one port of TV combined Radio and one port of Satellite - requires one coaxial feed cable. This module has the size name of `Full module` with a size of 50 x 50mm.

Product description:

Diplexed (TV/SAT) Module Black (50 x 50mm)

Specifications

ORDER INFORMATION
EAN Number 5702663042612
FREQUENCY
Frequency Range TV 47...862 MHz
Frequency Range SAT 950...2150 (2400MHz) MHz
LOSS
Through Loss IN-TV 2.0 dB
Through Loss IN-SAT 2.5 (3.0@2400MHz) dB
OPERATIONAL
DC Passthrough SAT Yes
CONNECTORS
Connector TV IEC-male
Connector SAT F-female
MECHANICAL
Design UK Grid style, 50x50mm
Product Height 50 mm
Product Width 50 mm
Colour Black
Net Weight 0,090 kg
Tara Weight 0,019 kg
Total Weight 0,109 kg
Remarks Screened Single Terminal and Clamp cable entry Fits 15mm Patress DC througpower On SAT
