Triax - Black TV / Radio / Sat / SatII
Item Code : 304 265
Product Details
Triax Euro Module Black
Triax - Triax - Black TV / Radio / Sat / SatII
Item Code: 304 265
Brand: Triax
Manufacturer: Triax
Triax -Multimedia Euro Module System

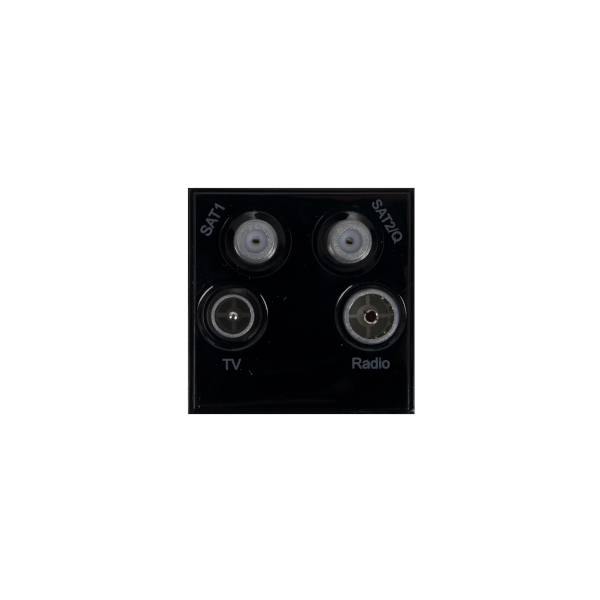

This euro module has 4 ports TV, Sat 1, Sat2/Q, Radio, and requires two coaxial feed cables. This module has the size name of `Full Module` with a size of 50 x 50mm.
Product description:
Quad (TV/Radio/Sat I/Sat II) Module Black (50 x 50mm)
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663042650
|
| CHARACTERISTICS | |
| Return Path | 5...2400 MHz |
| FREQUENCY | |
| Frequency Range FM | 87.5...230 MHz |
| Frequency Range TV | 470...862 MHz |
| Frequency Range SAT | 950...2300 MHz |
| Frequency Range SAT 2 | 5...2400 MHz |
| LOSS | |
| Through Loss IN-FM | 3.0 dB |
| Through Loss IN-TV | 2.5 dB |
| Through Loss IN-SAT | 3.0 (1.5 @SAT2) dB |
| OPERATIONAL | |
| DC Passthrough SAT | Yes |
| CONNECTORS | |
| Connector FM | IEC-female |
| Connector TV | IEC-male |
| Connector SAT | F-female |
| MECHANICAL | |
| Design | UK Grid style, 50x50mm |
| Product Height | 50 mm |
| Product Width | 50 mm |
| Colour | Black |
| Net Weight | 0,095 kg |
| Tara Weight | 0,019 kg |
| Total Weight | 0,114 kg |
| Remarks | Screened,Two Terminal and Clamp cable entries Fits 15mm Patress Return normally used as SAT 2DC through power On SAT Return |
