Triax - White Twin F Socket

Item Code: 304 246

Brand: Triax

Manufacturer: Triax

Quick Reference links for Triax Euro module System.

Description:

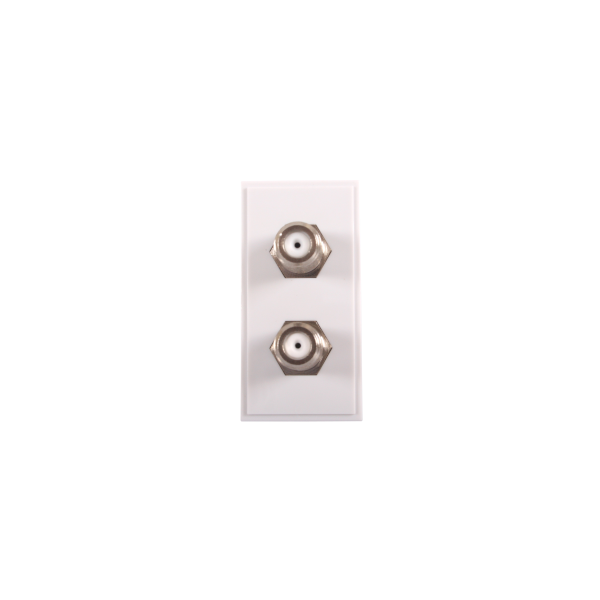

This euro module has 2 ports both of F Type Connector, requires two coaxial feed cables. This module has the size name of `Half module` with a size of 25 x 50mm.

Twin F Module - White - 25 x 50 - Back to Back Barrel

Specifications

ORDER INFORMATION
EAN Number	5702663042476
FREQUENCY
Frequency Range SAT	DC...2150 MHz
LOSS
Through Loss IN-SAT	0.2 dB
RETURN LOSS
Return Loss SAT	26.0 dB
OPERATIONAL
DC Passthrough	Yes
CONNECTORS
Connector IN-OUT	F-female / F-female
MECHANICAL
Design	UK Grid Outlet style
Product Height	50 mm
Product Width	25 mm
Colour	White
Packaging Height	0,055 m
Packaging Width	0,025 m
Packaging Depth	0,035 m
Net Weight	0,020 kg
Tara Weight	0,005 kg
Total Weight	0,025 kg
Remarks	2 x 'F' Female to 'F' Female Connector
