600x400mm TV Wall Bracket

Item Code : ST601



Product Details

av:link - 600x400mm TV Wall Bracket

Item Code: ST601

Brand: av:link

Manufacturer: av:link

Description

The ST601 TV Screen wall bracket is easy to install of low profile with tilt mechanism. The wall bracket is suitable for TVs of  32 to 65 inch screen size of weight 35 kilo gram or less. The fixing centers for Bracket to TV screen are universal and suitable for VESA fixing system of 600 x 400mm or less.

TV to bracket fixing screws provided are, 4 x M4 25mm, 4 x M5 25mm, 4 x M6 25mm, 4 x M8 25mm ( caution: select screws as required by your TV Screen; other sizes may be required that are not supplied ? )

Features

  • Low profile design
  • Compatible with VESA mounting patterns
  • Installation hardware included ( suitable for most install situations)

Specifications for TV Wall Bracket ST601

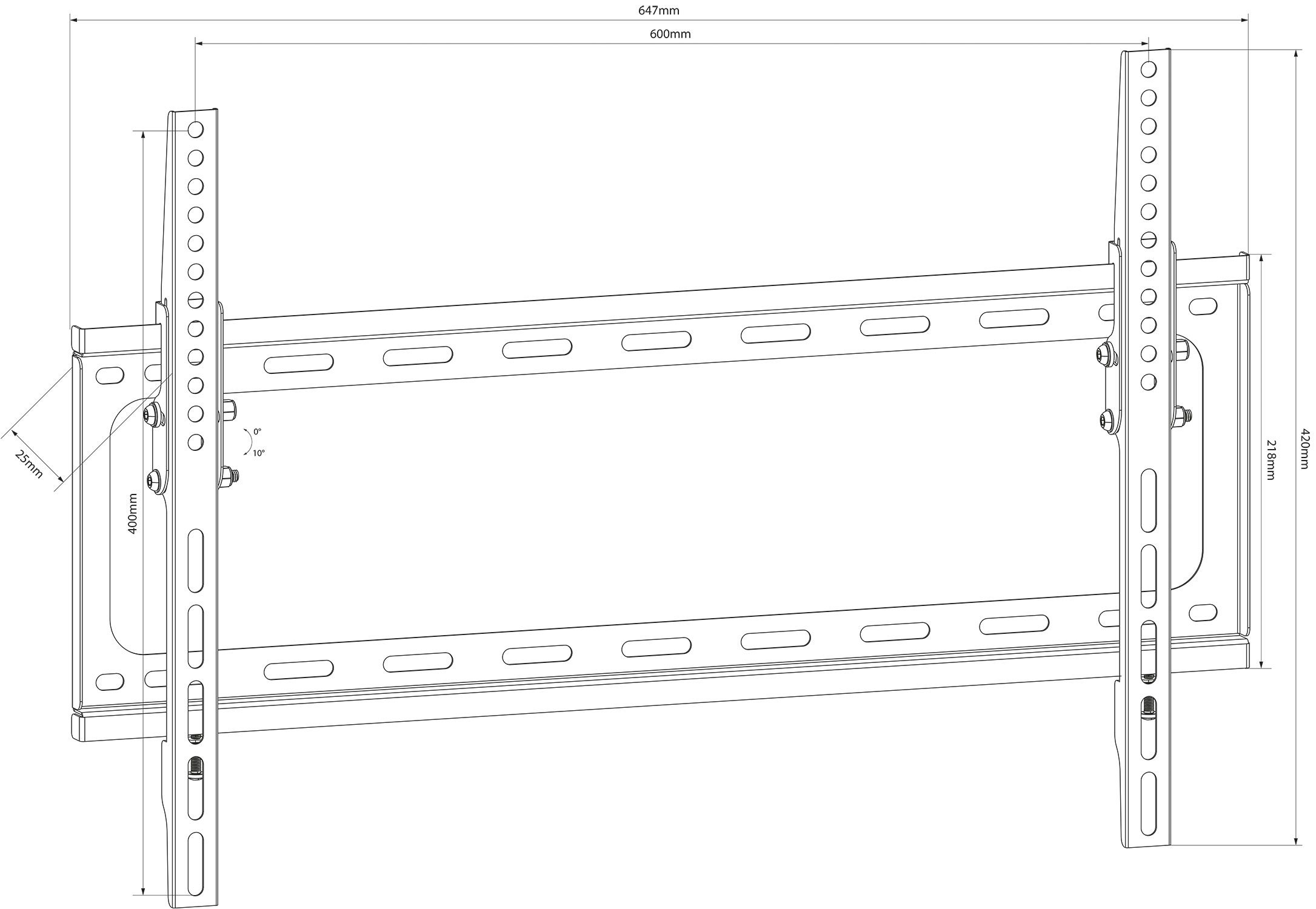

Technical Drawing for TV Wall Bracket Model ST601
Screen size
32 - 65 inch
Maximum screw fixing centers for TV Screen
600 x 400mm
Maximum VESA fixing system.
600 x 400
Tilt range
0 to 10 deg.
Maximum weight load
35Kg
Distance from wall
25mm
Wall plate dimensions
647 x 218mm
TV bracket dimensions
647 x 420mm
Weight
1.34Kg

Images of TV Bracket ST601

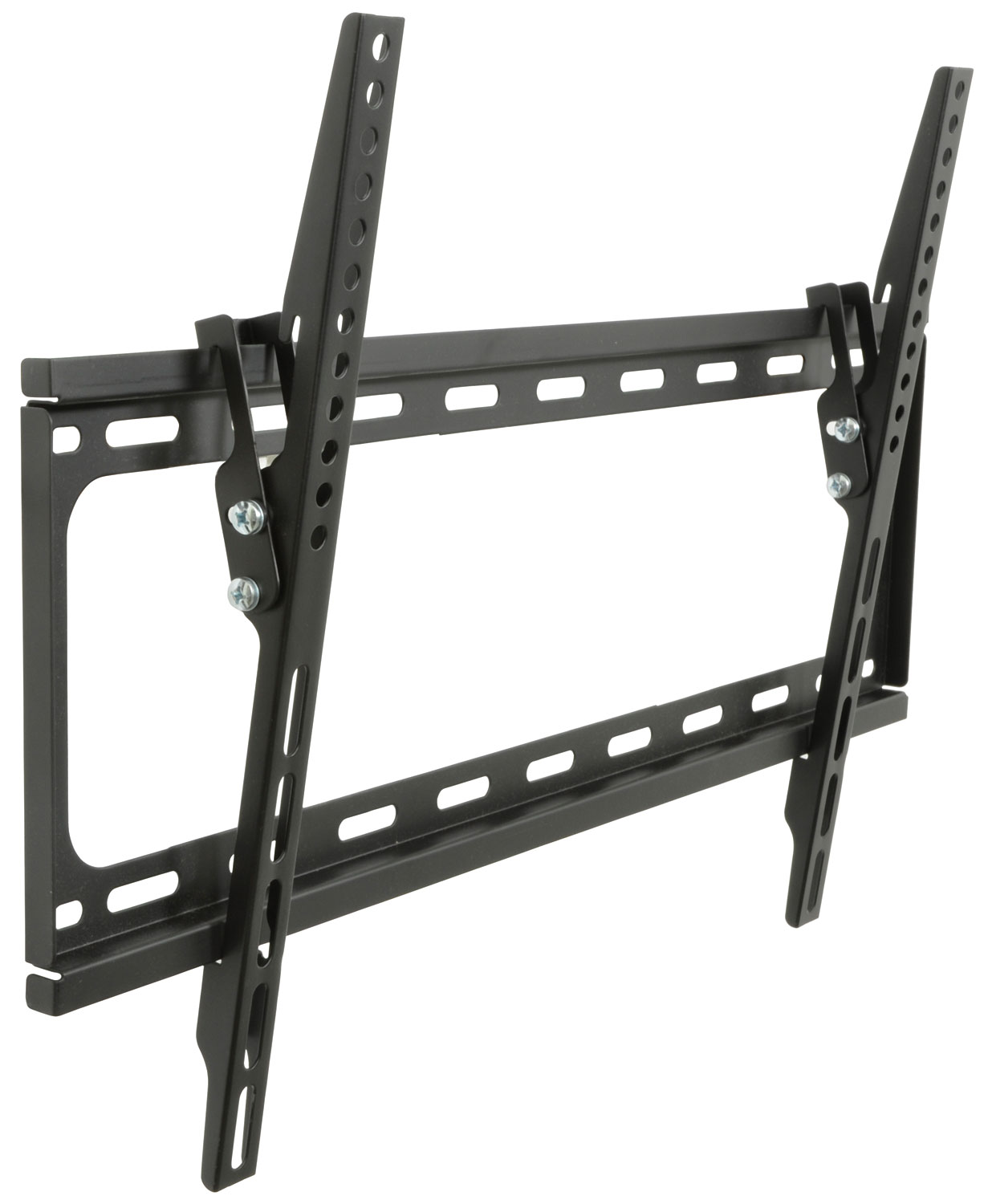

Wall Bracket Model ST601 showing maximum tilt downward of 10 degrees

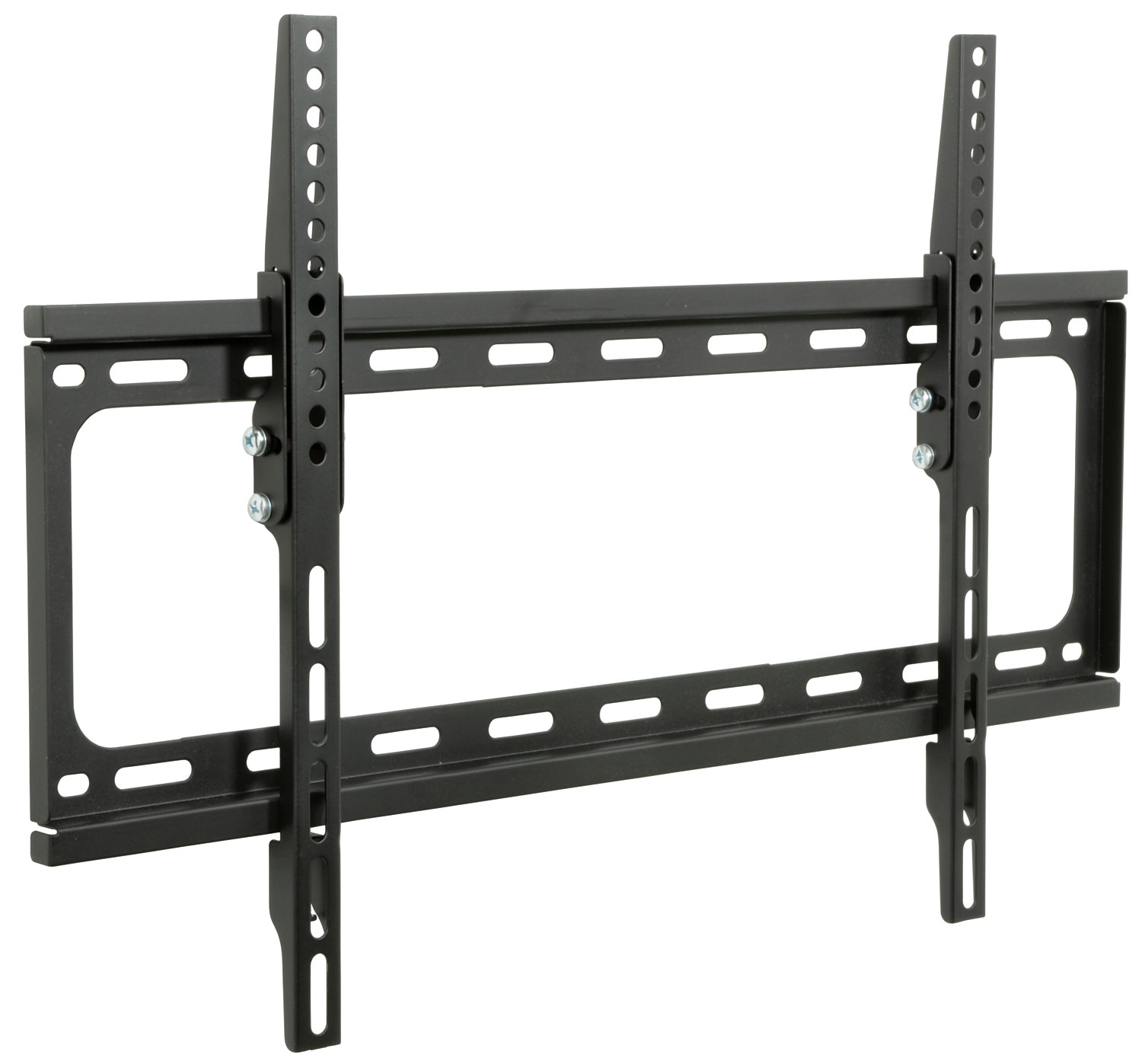

Wall Bracket Model ST601 in vertical (no tilt) position
