av:link - av:link 400x400mm TV Wall Bracket

Item Code: ST401

Brand: av:link

Manufacturer: av:link

Description

The ST401 TV Screen wall bracket is easy to install of low profile with tilt mechanism. The wall bracket is suitable for TVs of  26 to 50 inch screen size of weight 30 kilo gram or less. The fixing centers for Bracket to TV screen are universal and suitable for VESA fixing system of 400 x 400mm or less.

TV to bracket fixing screws provided are, 4 x M4 25mm, 4 x M5 25mm, 4 x M6 25mm, 4 x M8 25mm ( caution: select screws as required by your TV Screen; other sizes may be required that are not supplied ? )

Features

• Low profile design
• Compatible with VESA mounting patterns
• Installation hardware included ( suitable for most install situations)

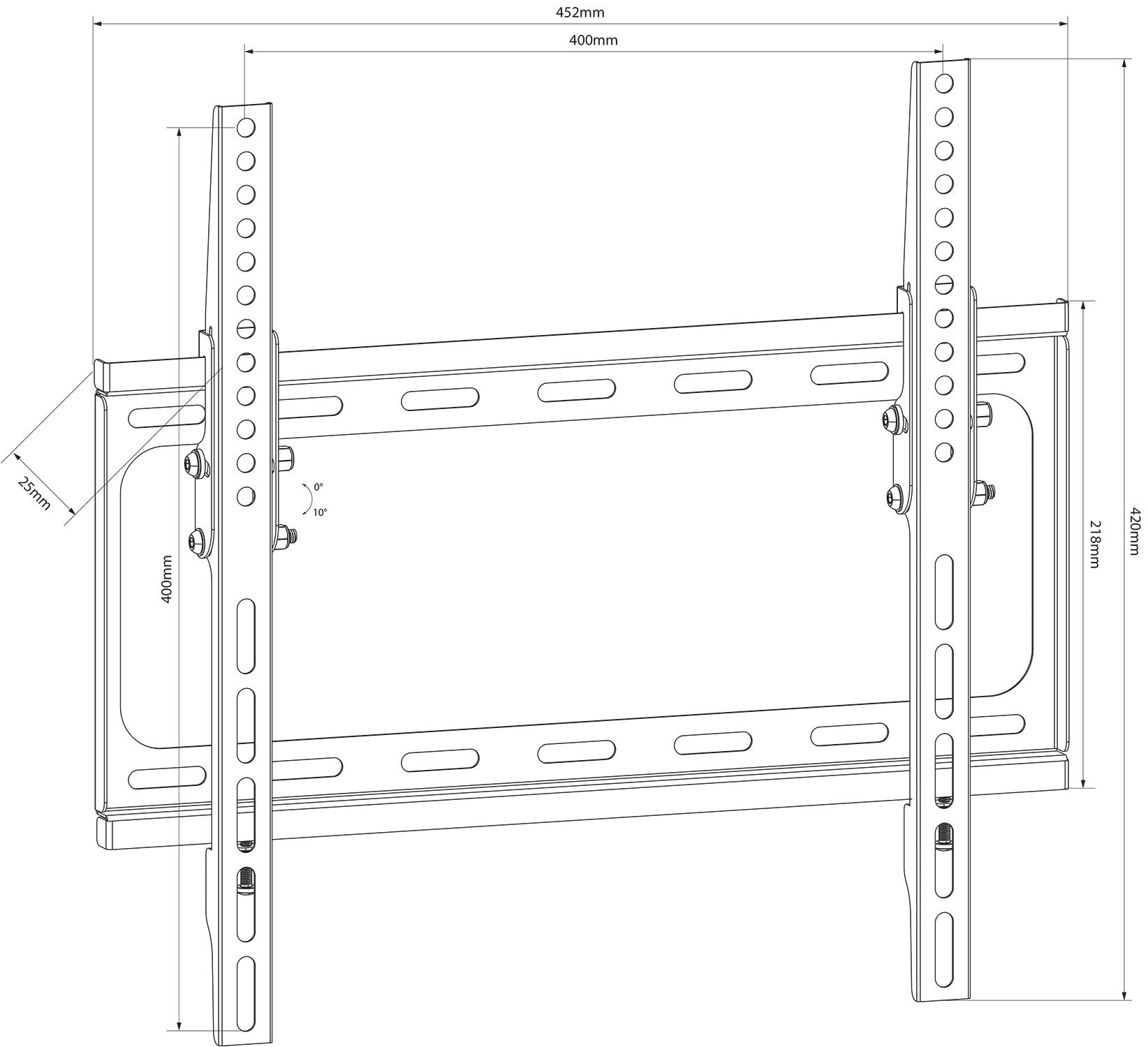

Specifications for TV Wall Bracket ST401

Screen size	26 - 50 inch
Maximum screw fixing centers for TV Screen	400 x 400mm
Maximum VESA fixing system.	400 x 400
Tilt range	0 to 10 deg.
Maximum weight load	30Kg
Distance from wall	25mm
Wall plate dimensions	452 x 218mm
TV bracket dimensions	452 x 420mm
Weight	1.16Kg

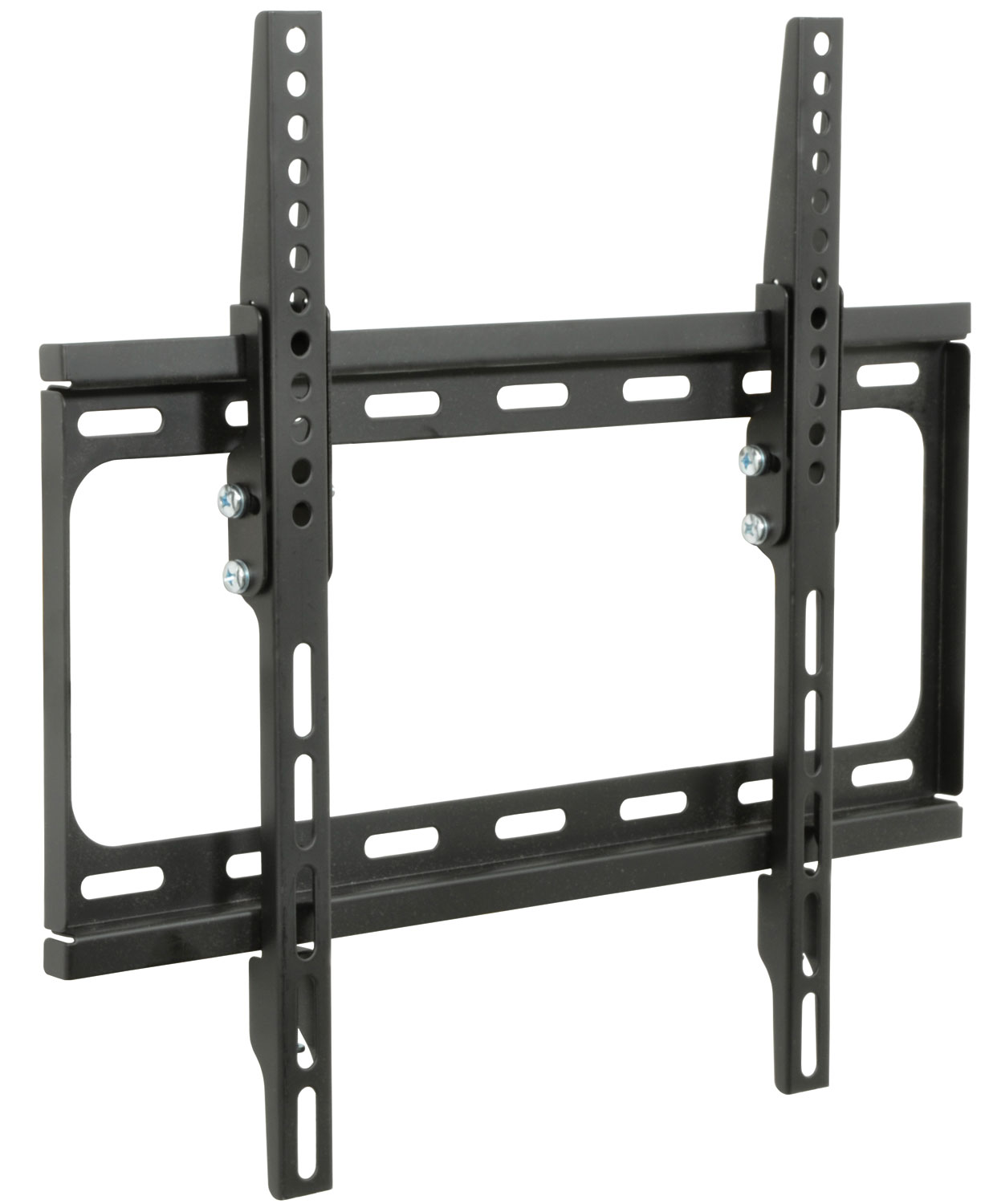

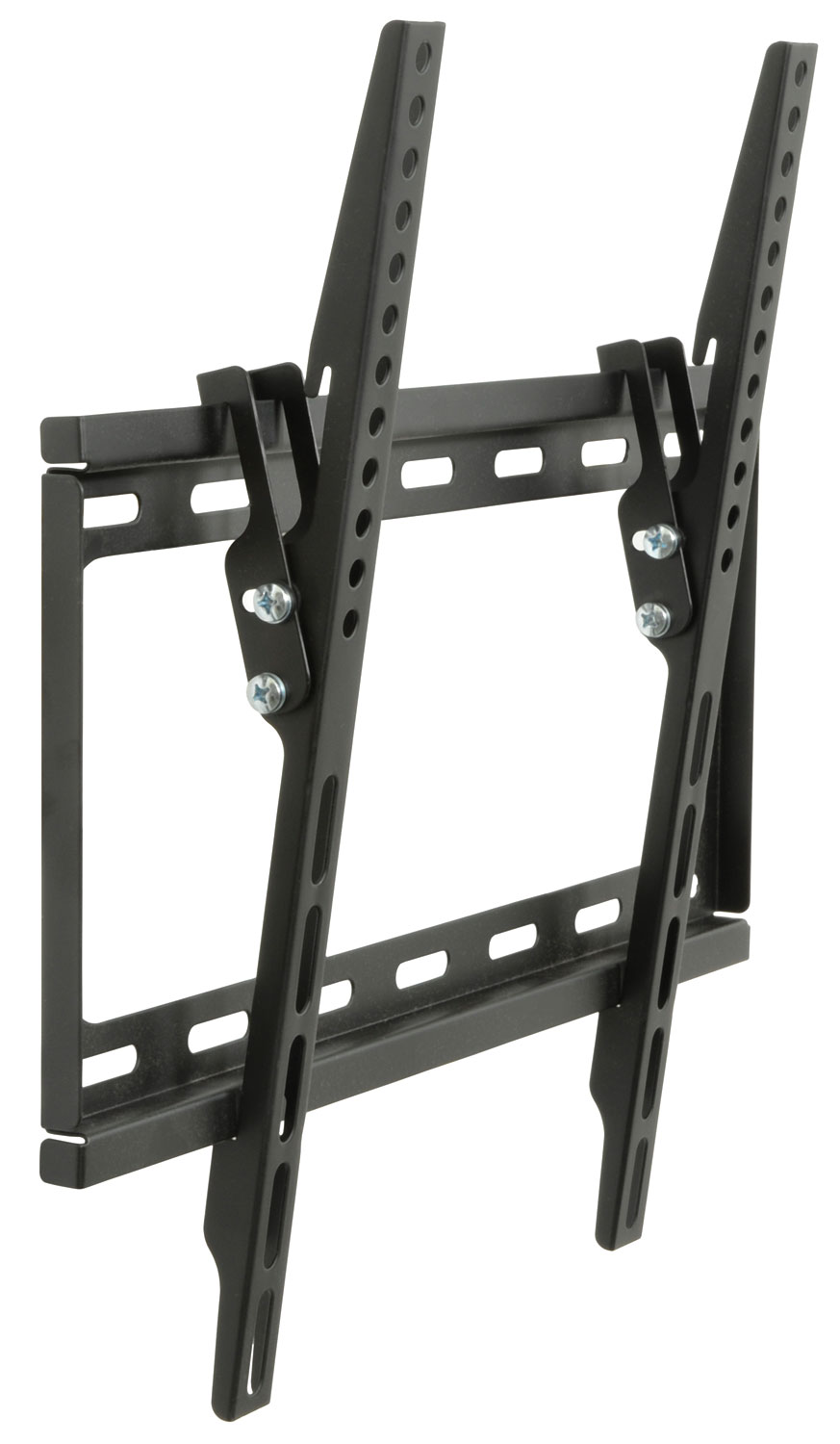

Images of TV Bracket ST401
