10 Element Yargi Aerial, TX10 T
Item Code : TX10 T
Product Details
Terrestrial TV Aerial

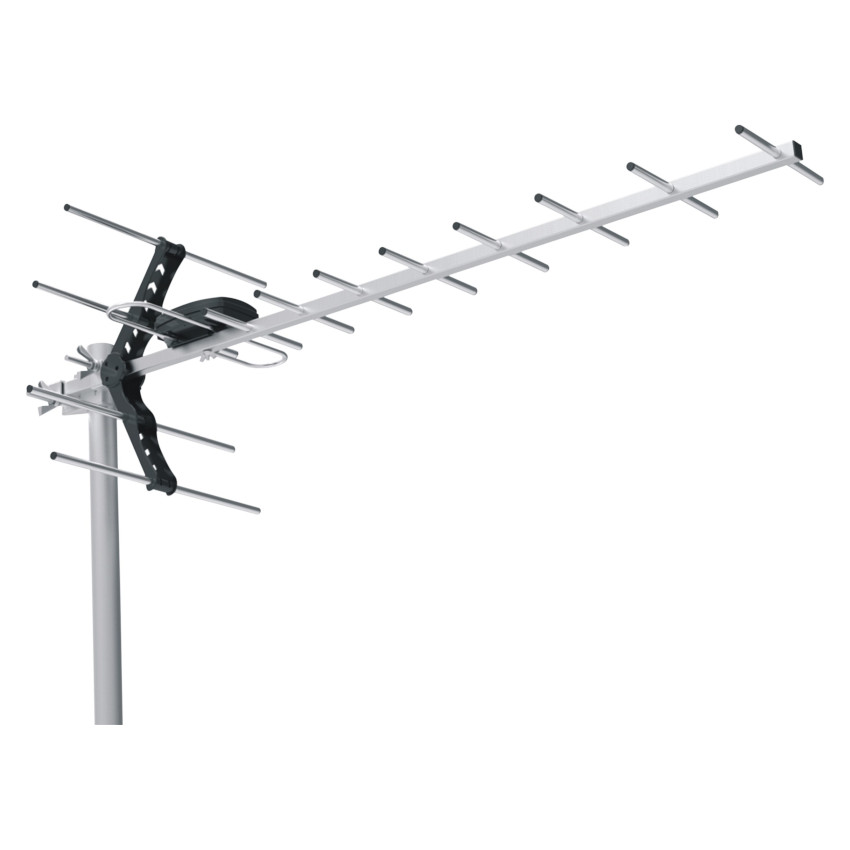

Triax - 10 Element Yargi Aerial, TX10 T
Item Code: TX10 T
Brand: Triax
TX10 T
Description
Low cost high quality aerial suitable for contract work. Rugged reflectors and rear deflectors, with 'F' balun. Protected against LTE/4G
Features
- Strong, rugged construction
- 10 Element, Group T, UHF Antenna, 470-790 MHz
- 13dBi Gain (max)
- Excellent F/B ratio >15dB
- Designed to mitigate 4G/LTE interference
- Pre-assembled, quick install reflector
Specification
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661081866 |
| CHARACTERISTICS | |
| Type | TX10T |
| FREQUENCY | |
| Band | B IV/V UHF |
| Channels | 21...60 |
| Frequency range UHF | 470...790 MHz |
| LTE protection | @ 800Mhz |
| GAIN | |
| Gain | 7...13 dBi |
| Gain @ 474 MHz (Ch. 21) | 8 Typ dBi |
| Gain @ 602 MHz (Ch. 37) | 10.5 Typ dBi |
| Gain @ 786 MHz (Ch. 60) | 11 Typ dBi |
| ELECTRICAL | |
| Front to back ratio - horisontal | >15 dB |
| Impedance | 75 Ω |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Elements | 10 |
| Main material | Aluminium |
| Product Length | 850 mm |
| Product Width | 500 mm |
| Packaging Height | 0,050 m |
| Packaging Width | 0,295 m |
| Packaging Depth | 0,885 m |
| Packaging Volume | 0,013 m3 |
| Net Weight | 0,405 kg |
| Tara Weight | 0,100 kg |
| Total Weight | 0,505 kg |
| Remarks | VSWR <2 |
