MOD 103 T

Item Code : MOD 103 T

Product Details

Digital Modulator

Item Code: MOD 103 T

Brand: Triax

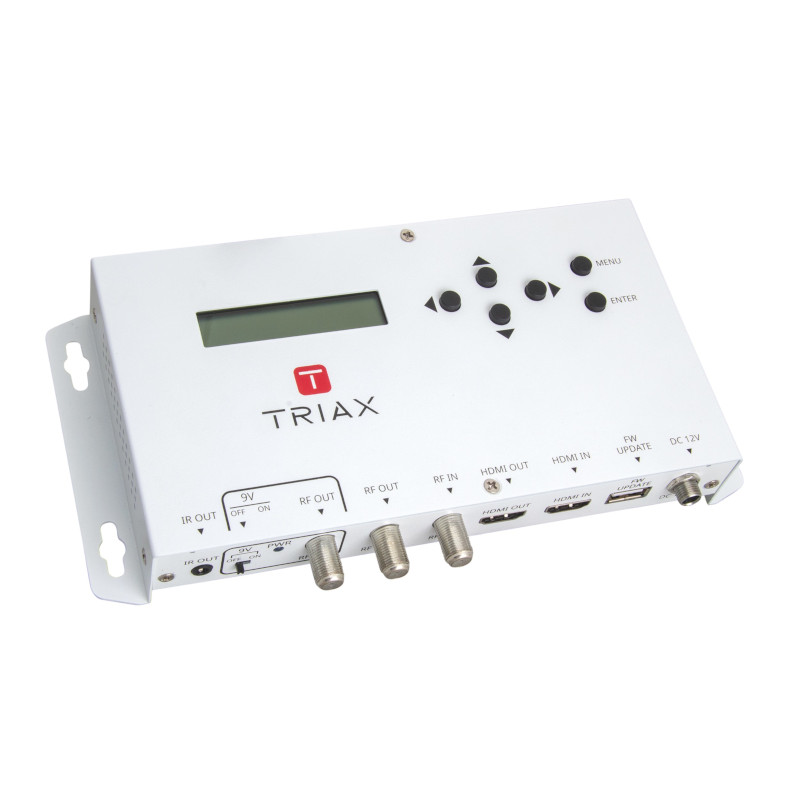

MOD103T HDMI to COFDM Modulator

Watch + control HD content at each TV location using existing coax cable infrastructure

New compact design
All inputs and outputs on one side for ease of installation
Full HD Video and HDMI Loop through
IR Control when used with Digital Links and IR Pass Amplifiers
Enhanced viewing experience
Combine multiple modulators together for more HD channels on your network – watch different sources on different TV’s
Output combined with existing RF signals
RF Output level control
Fully agile output

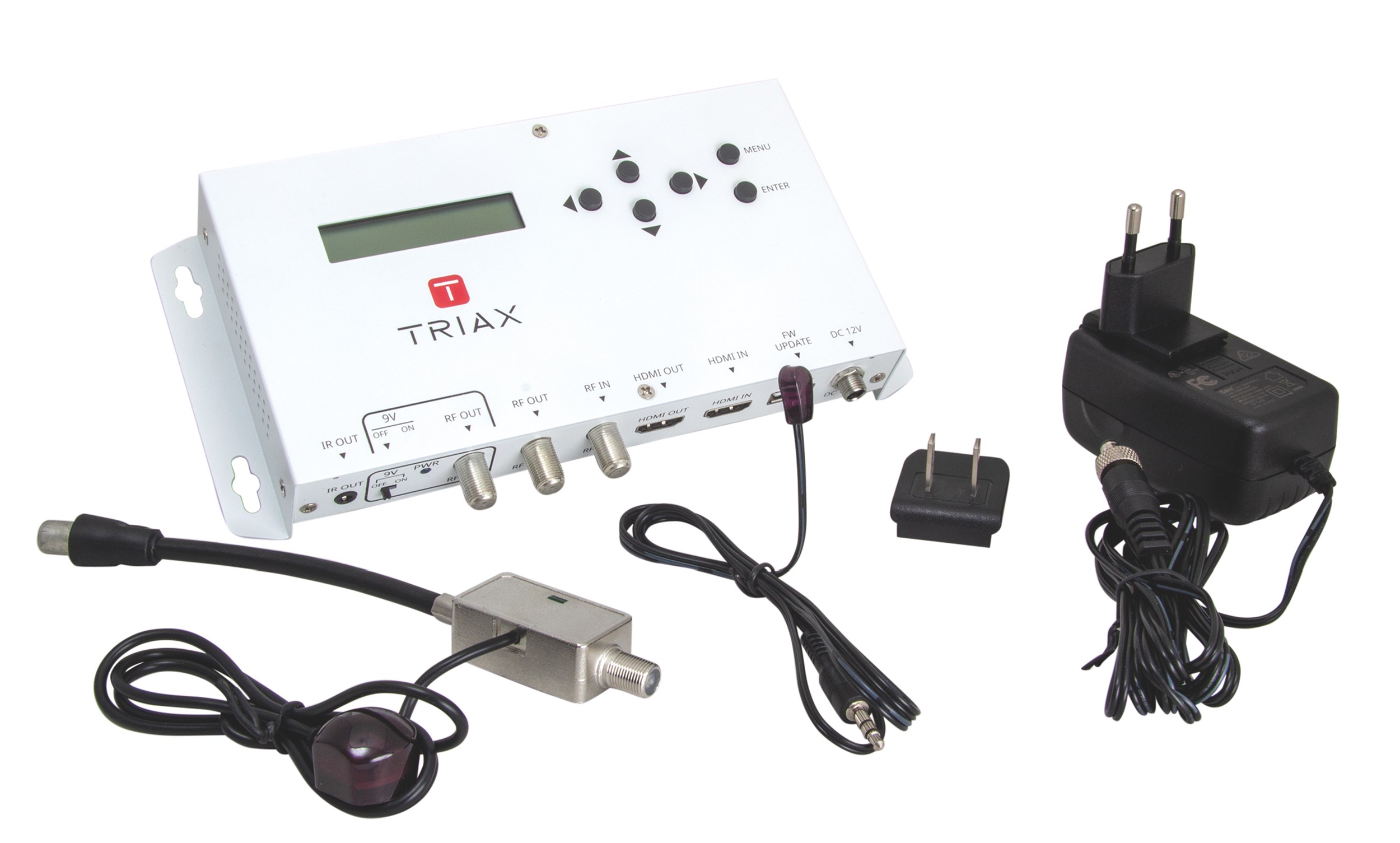

IR Emitter required at HDMI source (supplied)
Compatible with HDMI sources
Ideal solution for domestic and commercial installations

ORDER INFORMATION
EAN Number	5702663001282
CHARACTERISTICS
Video Input	HDMI
Audio Input	Stereo, HDMI
Video resolution	Up to 1080p@30Hz Pixel
Video Compression	H.264 4.0
Audio Compression	MPEG-2, AAC
Number of carriers	2K / 8K
Guard Interval	1/4, 1/8, 1/16, 1/32
Constellation	QPSK/16QAM/64QAM
Code rate	1/2, 2/3, 3/4, 5/6, 7/8
Output level	< 95 dBµV
MER	<30 dB
FREQUENCY
Frequency range	177...858 MHz
Bandwidth	6/7/8 MHz
RETURN LOSS
LCN	1...999
ELECTRICAL
Impedance	75 Ω
OPERATIONAL
DC Operating voltage	12 VDC
External PSU	Included
Service Settings	Serv. Name: Edit service name Serv. ID: 1-65535
Stream Settings	Orig Netw ID: 1-65535 Netw ID: 1-65535 TS ID: 1-65535 Netw Name: Edit Network Name
Parameter Settings	Const: QPSK/16QAM/64QAM Code Rate: 5/6, 7/8 Guard Interval: 1/4, 1/8, 1/16, 1/32 Trans Mode: 2K, 8K Bandwidth: 6,7,8 MHz

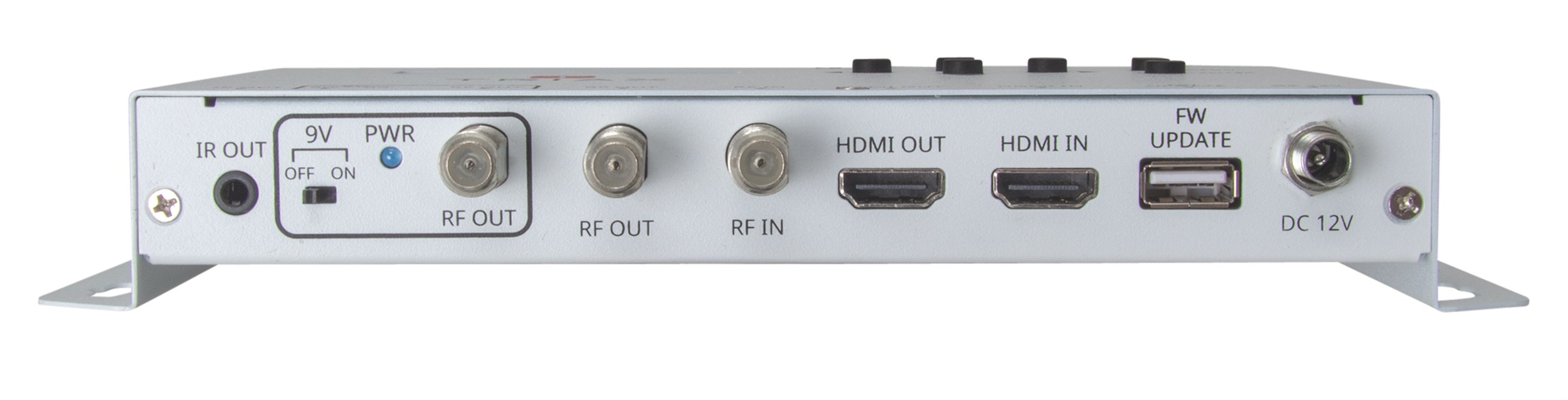

CONNECTORS
Input connector	HDMI, F-terrestrial loop through
Connector IN	HDMI female (Type A)
Connector OUT	F-female
MECHANICAL
Display	LCD panel and buttons
Product Height	106 mm
Product Depth	32 mm
Product Width	220 mm
Colour	White
Packaging Height	0,057 m
Packaging Width	0,248 m
Packaging Depth	0,190 m
Packaging Volume	0,003 m3
Net Weight	0,760 kg
Tara Weight	0,180 kg
Total Weight	0,940 kg
