Triplexer FM, DAB & UHF - LMT310

Item Code : Triplexer FM, DAB & UHF - LMT310



Product Details

Labgear™   Passive RF Components

Labgear - Triplexer FM, DAB & UHF - LMT310

Item Code: Triplexer FM, DAB & UHF - LMT310

Bar Code: 5050171062777

Brand: Labgear

Manufacturer: Labgear

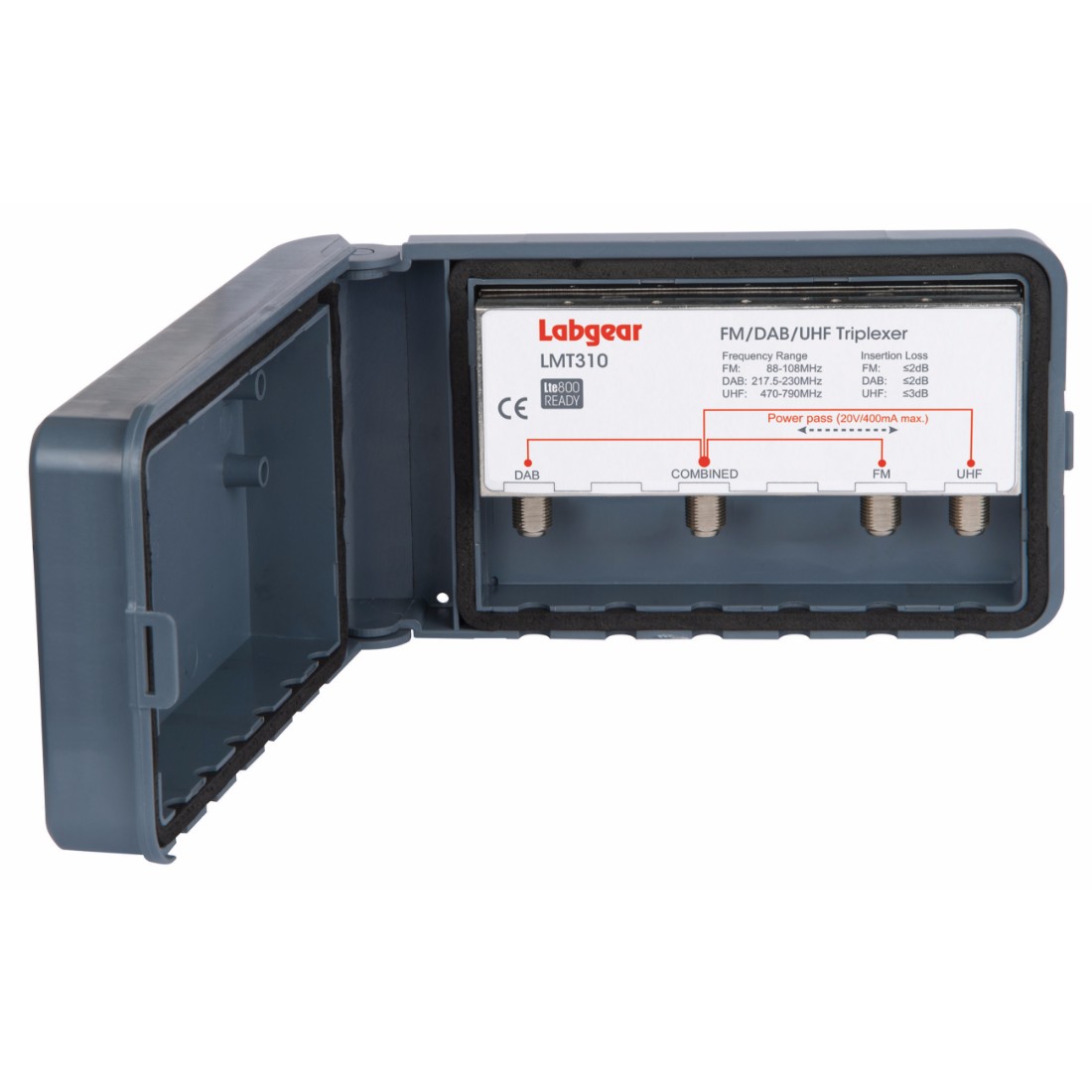

Triplexer FM, DAB & UHF - LMT310

Description

The LMT310 is a Triplexer Filter used to combine the source signals of FM Radio, DAB Radio and UHF TV.

The LMT310 has 3/4G filter on the UHF TV input.

Features

  • Fully screened housing
  • F-type connections
  • Weather Proof housing
  • Sturdy metal mast clamp
  • The triplexer has filters for each input to prevent interference
  • The triplexer will enable the combineing of indipendent signal source of FM Radio, DAB Radio and UHF TV
  • LTE800 filtering on UHF input

Specification

FM input Filtered to receive: 88-108 MHz
DAB input Filtered to receive: 217.5-230 MHz
UHF TV input Filtered to receive: 470-790 MHz
Inband insertion loss VHF/UHF: < 2dB
Return loss VHF: 12dB
Return loss UHF: 10dB
Isolation between bands VHF/UHF: > 25dB
Maximum DC line power Pass: 20V 400mA
