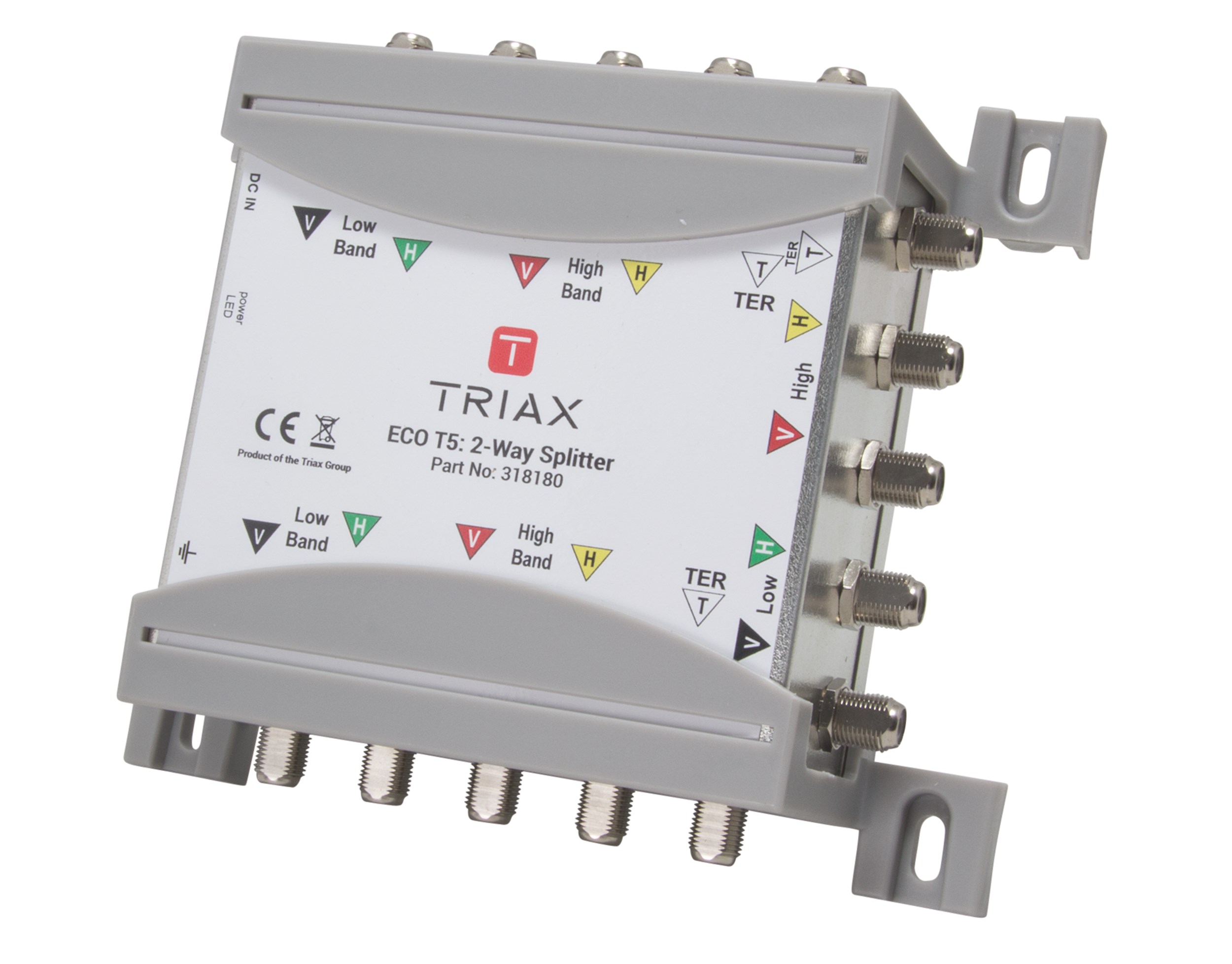

Triax - Eco T5 2-Way Splitter
Item Code : 318180
Product Details
Triax - Eco T5 Multiswitch System
Triax - Triax - Eco T5 2-Way Splitter
Item Code: 318180
Brand: Triax
Manufacturer: Triax
Triax Eco T5 Adjustable Tap
Simplify your IRS Installations with the new adjustable tapThe T5 Adjustable Tap for Satellite 30 to 12dB attenuation and terrestrial 30 to 12dB attenuation via a selector pots designed with the latest chipset technology for excellent linearity across all polarities.
This Tap is used to balance system power levels.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663181809 |
| CHARACTERISTICS | |
| Type. | T5 2W SPLIT |
| FREQUENCY | |
| Frequency range TER | 40...790 MHz |
| Frequency range SAT | 950...2400 MHz |
| LOSS | |
| Tap loss TER | TER1/2: 3...4 +/-1 dB |
| Tap loss SAT | SAT1/2: 4...5 +/-1 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| LINE power DC voltage (max.) | 15 VDC |
| LINE power current (max.) | 12 mA |
| DC Operating voltage | 15 VDC |
| DC Current consumption | < 12 mA |
| External PSU item ID | 318151 |
| Temperature range | -20...70 °C |
| CONNECTORS | |
| Connector Type | F-female |
| Connector DC | F-female |
| Number of inputs | 5 |
| MECHANICAL | |
| Product Depth | 62 mm |
| Product Width | 140 mm |
| Product Length | 160 mm |
| Net Weight | 0,460 kg |
| Tara Weight | 0,120 kg |
| Total Weight | 0,580 kg |
