Triax - Eco T5 Multiswitch T512
Item Code : 318119
Product Details
Triax - Eco T5 Multiswitch System
Triax - Triax - Eco T5 Multiswitch T512
Item Code: 318119
Brand: Triax
Manufacturer: Triax

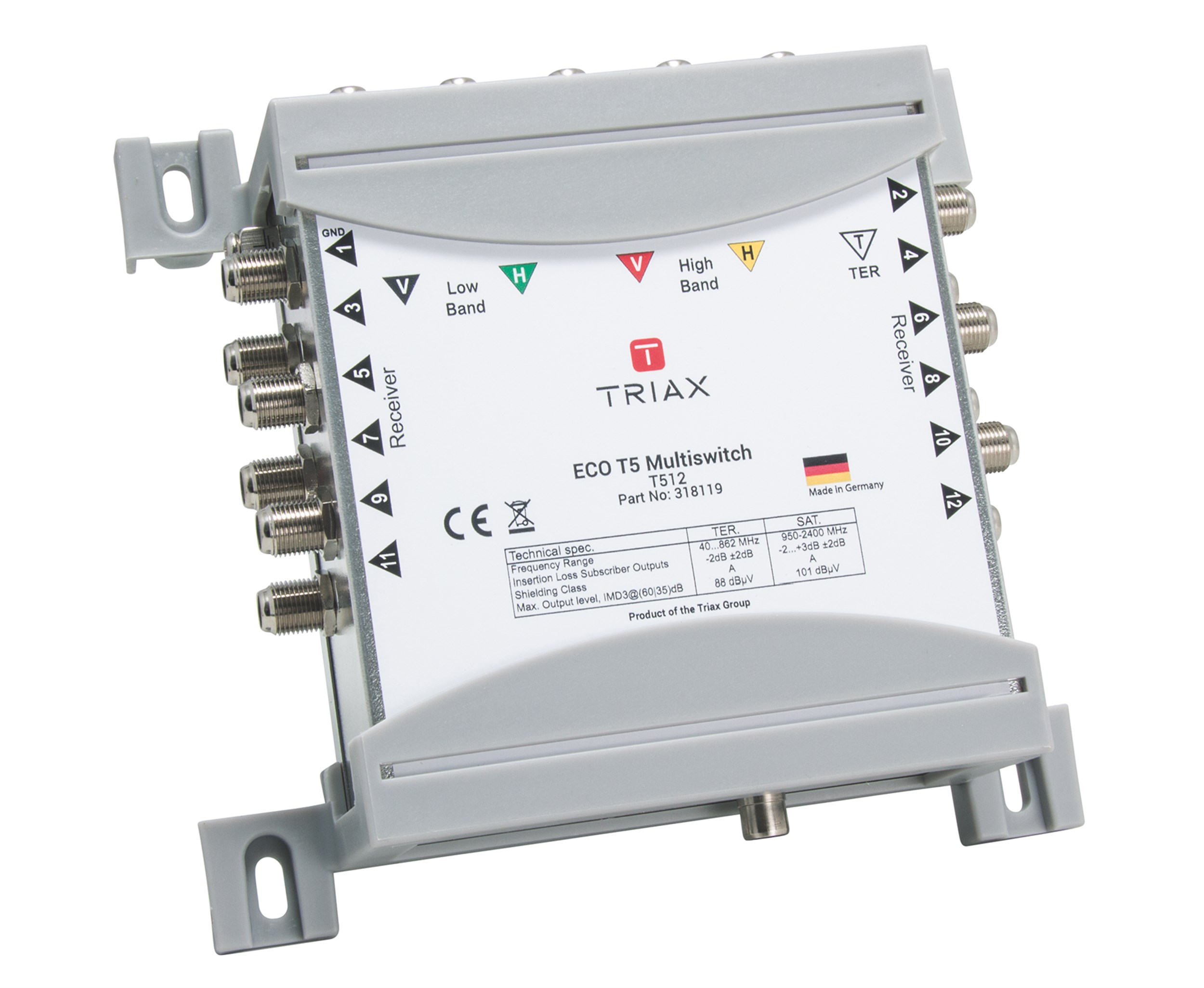

Triax Eco T5 Multiswitch T512
Active, unity gain 5 input 12 output cascade multiswitch
- Compact design
- Multiswitch powered from Satellite Trunk Lines
- Tap and switch pitches matched to enable quick connectors to be used
- Switches can be used as standalone when used with local Power Supply Unit (PSU)
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663181199 |
| CHARACTERISTICS | |
| Type. | 5 in / 12 out |
| Max. output level SAT @ -35 dB IMD3 | 101 dBµV |
| Max. output level TER @ -60dB IMD3 | 88 dBµV |
| FREQUENCY | |
| Frequency range TER | 40...790 MHz |
| Frequency range SAT | 950...2400 MHz |
| LOSS | |
| Insertion loss - SAT | 0...+2dB +/-2 dB |
| Insertion loss - TER | -2dB +/-2 dB |
| ISOLATION | |
| Isolation TER to SAT | typ. 30 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| LINE power DC voltage (max.) | 15 VDC |
| LINE power current (max.) | 120 mA |
| DC Operating voltage | 15 VDC |
| DC Current consumption | 120 mA |
| External PSU item ID | 318151 |
| Max. current to each output (supplied by set top box) | typ. 35 mA |
| Temperature range | -20...70 °C |
| CONNECTORS | |
| Connector Type | F-female |
| Connector DC | F-female |
| Number of inputs | 5 |
| Subscriber outputs | 12 |
| Colour coding of IF and TER inputs | Yes |
| MECHANICAL | |
| Product Depth | 63 mm |
| Product Width | 145 mm |
| Product Length | 160 mm |
| Net Weight | 0,575 kg |
| Tara Weight | 0,090 kg |
| Total Weight | 0,665 kg |
