Triax - Eco T5 Multiswitch T524

Item Code: 318133



Product Details

Triax ™ Triax - Eco T5 Multiswitch System

Triax - Triax - Eco T5 Multiswitch T524

Item Code: 318133

Brand: Triax

Manufacturer: Triax

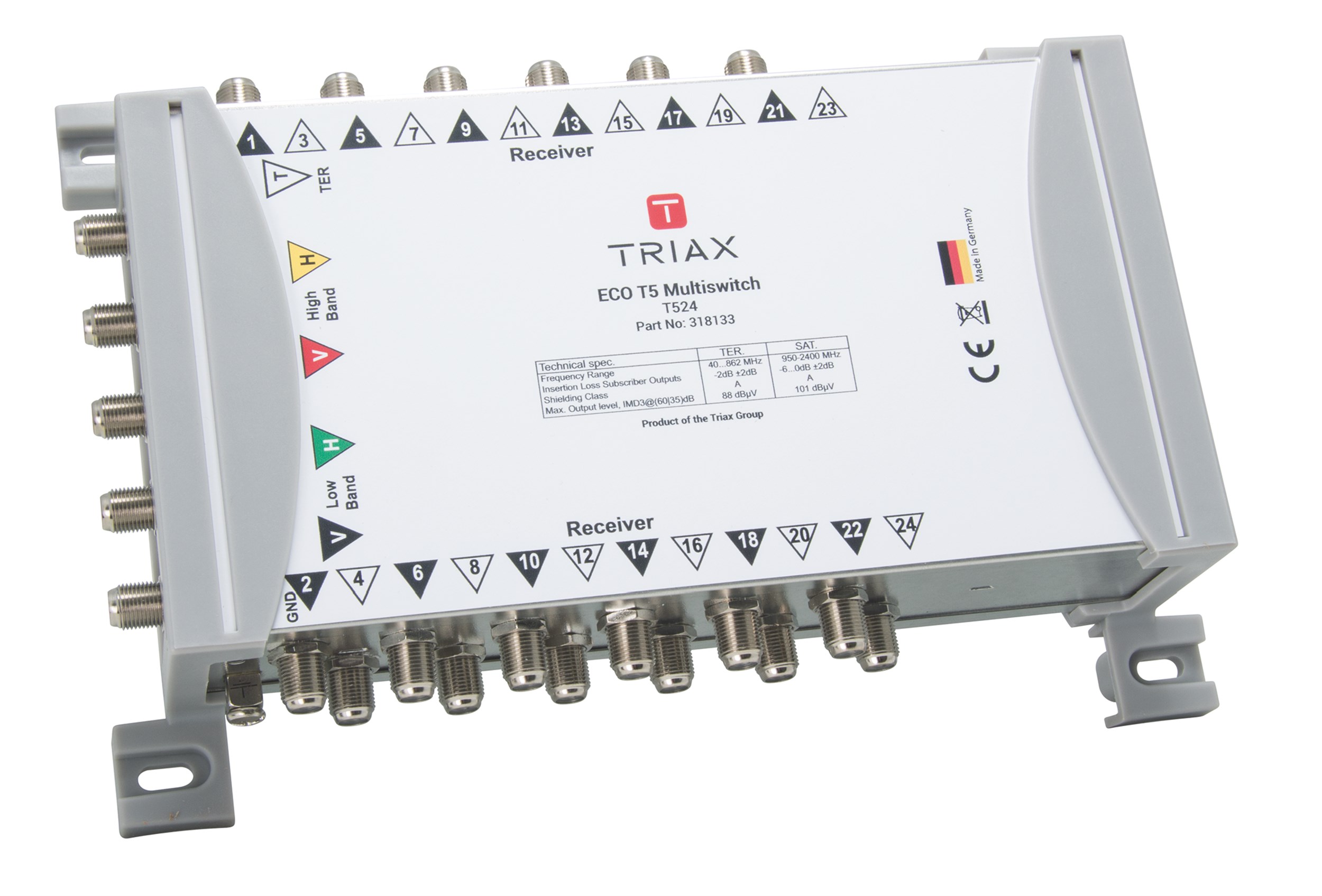

Triax Eco T5 Multiswitch T524

Active, unity gain 5 input 24 output cascade multiswitch

  • Compact design
  • Multiswitch powered from Satellite Trunk Lines
  • Tap and switch pitches matched to enable quick connectors to be used
  • Switches can be used as standalone when used with local Power Supply Unit (PSU)

Specifications

ORDER INFORMATION
EAN Number 5702663181335
CHARACTERISTICS
Type. 5 in / 24 out
Max. output level SAT @ -35 dB IMD3 101 dBµV
Max. output level TER @ -60dB IMD3 91 dBµV
FREQUENCY
Frequency range TER 40...790 MHz
Frequency range SAT 950...2400 MHz
LOSS
Insertion loss - SAT 0...+1dB +/-2 dB
Insertion loss - TER -2dB +/-2 dB
ISOLATION
Isolation TER to SAT typ. 30 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
LINE power DC voltage (max.) 15 VDC
LINE power current (max.) 240 mA
DC Operating voltage 15 VDC
DC Current consumption 240 mA
External PSU item ID 318151
Max. current to each output (supplied by set top box) typ. 35 mA
Temperature range -20...70 °C
CONNECTORS
Connector Type F-female
Connector DC F-female
Number of inputs 5
Subscriber outputs 24
Colour coding of IF and TER inputs Yes
MECHANICAL
Product Depth 63 mm
Product Width 240 mm
Product Length 160 mm
Packaging Height 0,240 m
Packaging Width 0,140 m
Packaging Depth 0,630 m
Packaging Volume 0,021 m3
Net Weight 0,650 kg
Total Weight 0,650 kg
