32 Element Full Wave Stacked Dipoles - TV Aerial, JBB/4

Item Code : JBB/4



Product Details

Blake-UK™   Terrestrial TV Aerial

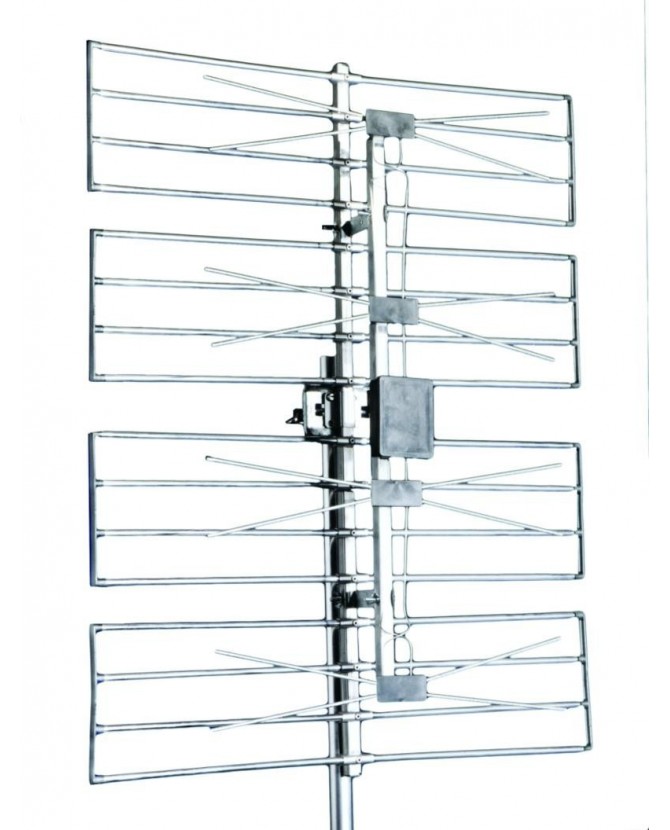

Blake-UK - 32 Element Full Wave Stacked Dipoles - TV Aerial, JBB/4

Item Code: JBB/4

Brand: Blake-UK

Manufacturer: Triax

JBB/4

Description

This TV Aerial has the design feature of 4 Full Wave Dipoles stacked Vertically and Phased together to give forward gain of 15dBi, the very large rear reflector both contributing to the forward gain of 15dBi and the rejection of rear unwanted reflected signals. The aerial is ideal for good to medium signal strength areas. This aerial historically has been used in difficult signal reception areas where mult-path signal reception caused by tall city type buildings is a problem, an other situation where this aerial is of benefit, is when the TV signal needs to pass through trees fully laiden with leaves. This TV aerial has a forward acceptance angle of 45 degrees is of rugged construction enabling a long service life.

Features

  • Frequency: 470...790 MHz
  • Channel: 21-60 (wideband)
  • Impedance: 75ohm
  • Number of Elements: 32
  • Gain: 15 dBi
  • Height: 700mm
