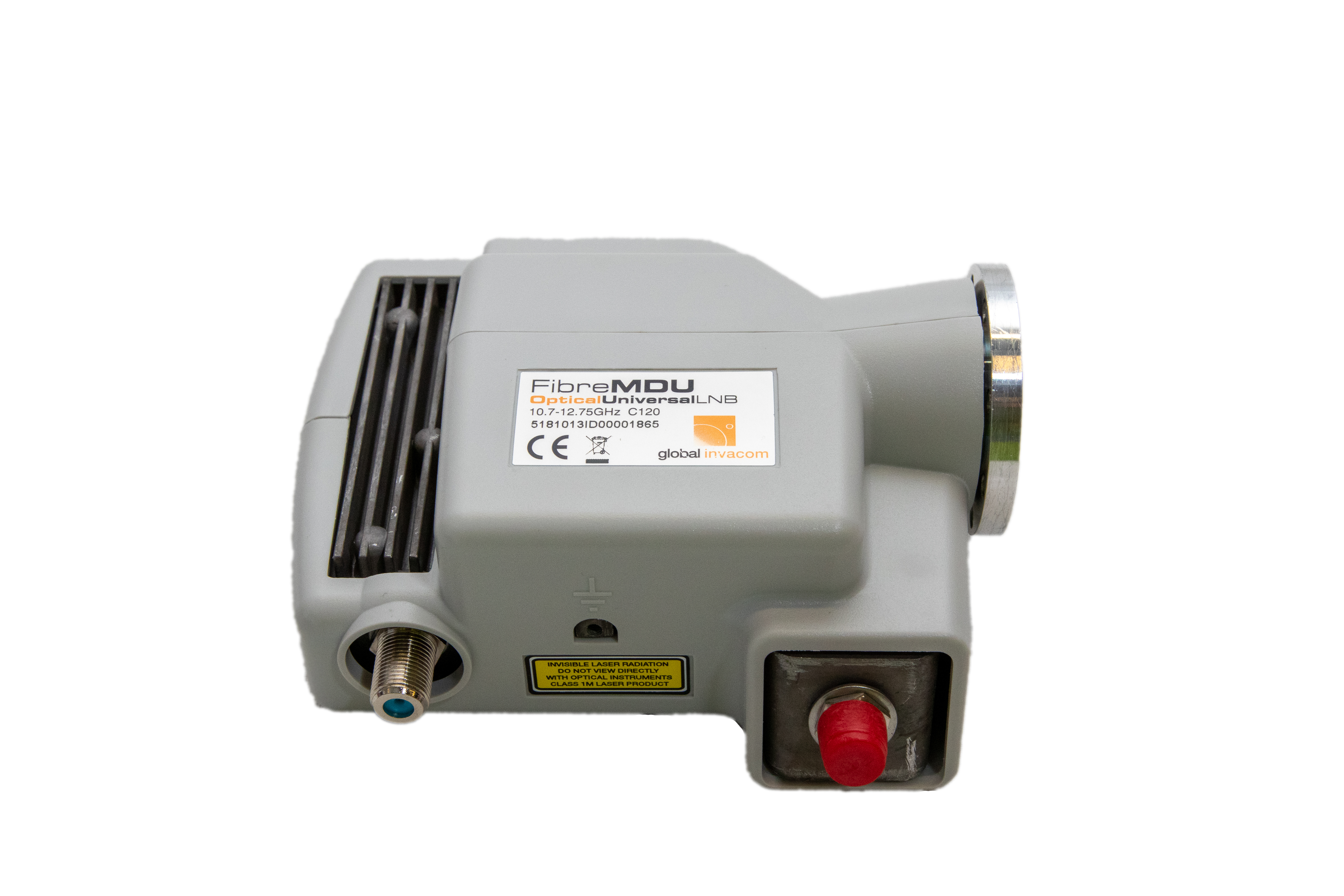

Optical TV - LNB with C120 feed to include Optical Transmitter, Global F925012
Item Code : F925012
Optical Fibre TV, LNB - Optical Transmitter Component
Global Invacom - Optical TV - LNB with C120 feed to include Optical Transmitter, Global F925012
Item Code: F925012
Brand: Global Invacom
Manufacturer: Global Invacom
Description
This innovative new design uses patented technology to frequency stack both horizontal and vertical polarities, creating a single IF frequency range of 950MHz - 5.45GHz. The newly created single band is then frequency modulated optically and output using a 1310nm laser.
The FibreMDU Optical Output LNB radically changes how satellite IF signals are dealt with compared with conventional Universal LNBs.
This innovative new design uses patented technology to frequency stack both horizontal and vertical polarities, creating a single IF frequency range of 950MHz - 5.45GHz. The newly created single band is then frequency modulated optically and output using a 1310nm laser internal to the Optical Output LNB.
Powered separately the Optical LNB takes the required <450mA from a standard 12v supply utilising a standard female F type connector.
Fibre connection is made via a standard FC/PC connector feeding the passive distribution network on single mode fibre optic cable.
With an optical output of +/- 6.5 dBm the GI FibreMDU Optical Output LNB is easily capable of driving up to 32 GI FibreMDU converters (see GI FibreMDU specification sheet) located within a 10km radius.
Features
- Converts all 4 Universal IF bands to a single optical output (H/H - H/L - V/H - V/L = Single Optical Output)
- Capable of supplying all converted signals to 32 distributed points spread over a 10 kilometer radius
- C120 Feed to enable Satellite Dish/Antenna Manufacture to provide a matched feed horn to the design of their Dish/Antenna.
Specification
| INPUT FREQUENCY | linearly polarised horizontal | 10.7-12.75GHz | ||
| linearly polarised vertical | 10.7-12.75GHz | |||
| OUTPUT FREQUENCY | Modulated laser at 1310nm. with frequency band of | 950 MHz - 5.45 GHz. | ||
| OPTICAL OUTPUT POWER | over full temperature range where nominal is 25°C | 7dBm ± 2dBm | ||
| NOISE FIGURE | Typical at 25°C | 0.5dB | ||
| Max at 25°C | 1.1dB | |||
| Typ Over Temperature | 0.7dB | |||
| Max Over Temperature | 1.3dB | |||
| GAIN | Max gain: at room temperature. | 72 dB | ||
| Min Gain: at room temperature. | 62 dB | |||
| Gain variation over temperature (-30° to + 60°C): | +/- 2dB | |||
| Gain flatness (0.95 to 5.45 GHz): | 5 dB per band | |||
| GAIN RIPPLE | The gain ripple per 26MHz bandwidth must be less than ±0.5dB. | |||
| PHASE NOISE | 1KHz | -55dBc/Hz | ||
| 10KHz | -80dBc/Hz | |||
| 100KHz | -100dBc/Hz | |||
| 1MHz | -110dBc/Hz | |||
| LOCAL OSCILLATOR STABILITY | -40° to +60°C | ±2 MHz | ||
| 10 Year Life | ±4 MHz | |||
| CURRENT CONSUMPTION | Current consumption | < 450 mA. | ||
| IMAGE REJECTION | minimum | 40dB | ||
| CROSS POLAR ISOLATION | Typically | 30dB | ||
| Minimum | 25dB | |||
| OUTPUT CONNECTORS | Optical Connector | FC/PC | ||
| SUPPLY VOLTAGE | Nominal Supply Voltage | 12Volts | ||
| TEMPERATURE RANGES | -30°C to +60°C | |||
| LNB MECHANICAL INTERFACE | ADF-120 Adjustable Feed Horn may be used or | |||
| use The Feed horn supplied and matched to the Satellite Dish/Antenna of choise |
