Optical Fibre TV - Optical Transmitter
Global Invacom - ODU32
Item Code: F101938
Brand: Global Invacom
Manufacturer: Global Invacom
ODU32
Description

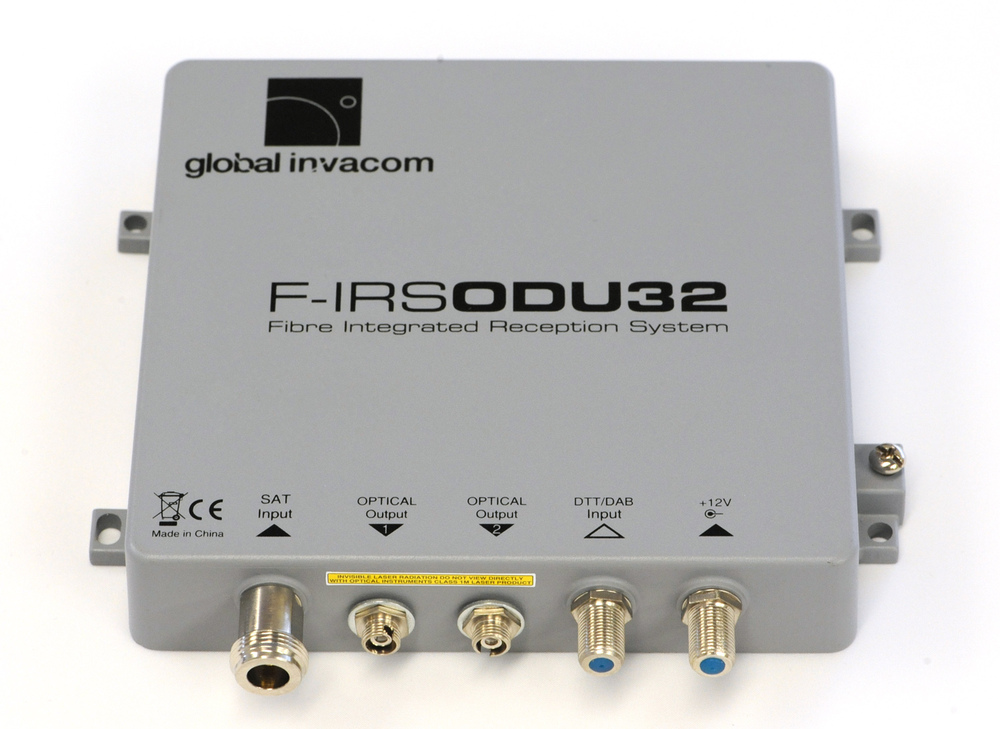

Fully weatherproof (IP65), the ODU32 MKII is designed for mounting with the antenna. It accepts and combines signals from the Wholeband LNB and digital terrestrial antennae (DTT/DAB). The combined signal is then split to 2 optical outputs (FC/PC). Each output can feed a PON of 32 points at which any Optical GTU can be connected.
Features
- Combines Wholeband LNB & DTT/DAB/FM signals
- Distributes signals to 64 outlets via two 32 way PONs
- Fully weatherproof (IP65)
- PSU, mast strap & mounting bracket included
- 10Km reach, subject to PON losses.
Specification
| Product Names | ODU32 | F101938 | ||
| ODU32 Kit | F101720 | |||
| Satellite RF frequency | Vertical polarisation (V pol) | 0.95-3.0GHz | ||
| Horizontal polarisation (H pol) | 3.4-5.45GHz | |||
| Nominal impedance | 50ohm | |||
| Return loss | 9dB | |||
| Gain variation across : V pol | 4dB | |||
| Gain variation across : H pol H pol has a 3dB upward slope | 7dB | |||
| Terrestrial RF frequency | DTT | 470-862MHz | ||
| DAB | 174-240MHz | |||
| FM | 88-108MHz | |||
| Nominal impedance | 75ohm | |||
| Return loss | 10dB | |||
| Input Power DAB power levels need to be set 12dB below DTT, FM power level needs to be same as DTT | 67dBµV - 97dBµV | |||
| DTT Input recommended for 6 multiplexes | 70dBµV | |||
| Gain variation across band | 4dB | |||
| Noise figure @ max gain | 10dB | |||
| 950-2150MHz rejection | 15dB | |||
| Laser Specification | FM.DAB,DTT and Satellite (Optical) | |||
| Laser optical wavelength | 1310nm±20 | |||
| Laser optical power | 6.5dBm - 7.5dBm | |||
| DC Specification | Input voltage | 12V to 20v | ||
| LNB supply voltage Fed through satellite input | 6.2V +-0.2V | |||
| Terrestrial supply voltage Output from terrestrial port | 11.5V +-0.5V | |||
| Max. terrestrial supply current | <80mA | |||
| Current consumption including Wholeband LNB | <500mA | |||
| Connectors | Satellite input | N | ||
| DTT/DAB/FM input | F | |||
| Power supply | F | |||
| Environmental | Operating temperature | -10 to 50°C | ||
| Optical cable | Single Mode | |||
| Standared | GI - approved G657a | |||
| Dimensions | Size | 140 x 145 x 30mm | ||
| Weight | 300g |
