Optical TV, 3 Way Passive Splitter, TOS 03D, 3-way FC/PC
Item Code : TOS 03D
Product Details
Optical Fibre TV - Passive Optical Splitter
Triax - Optical TV, 3 Way Passive Splitter, TOS 03D, 3-way FC/PC
Item Code: TOS 03D
Brand: Triax
Manufacturer: Triax
Description

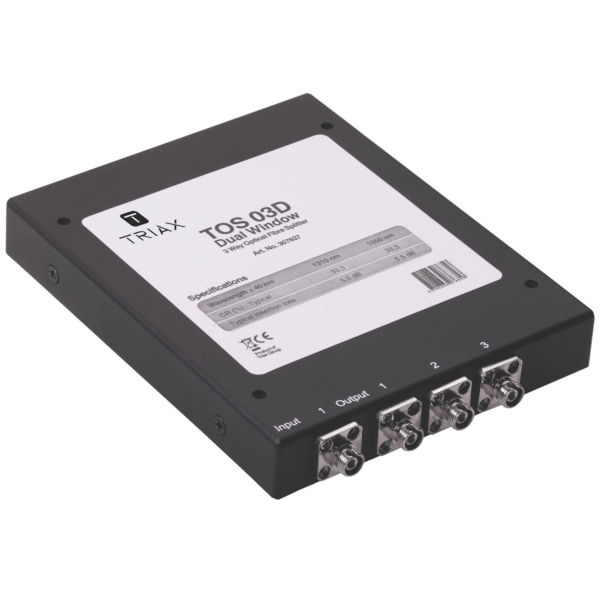

TOS 03D - Dual Optical Window Coupler
The TRIAX fibre optical TOS passive splitter/coupler units. Build passive optical networks (PON) in virtually any size and split ratio.
TOS 03 D are 3 way balanced FBT couplers with FC/PC connectors in a valid metal sheet housing.
Specification
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663076372 |
| CHARACTERISTICS | |
| Type | OPTO Coupler balanced |
| Coupling Ratio (OPTO) | 3x 33.3 % |
| Wavelength | 1310/1550 nm |
| Wavelength bandwidth | ± 40 MHz |
| LOSS | |
| Insertion loss (typ.) | 5.6 dB |
| CONNECTORS | |
| Connector Type | Optical - FC/PC |
| Number of inputs | 1 |
| Number of outputs | 3 |
| MECHANICAL | |
| Dimensions product (H x D x W) | 150x20x114 mm |
| Packing QTY | 1 |
| Packaging Height | 0,043 m |
| Packaging Width | 0,155 m |
| Packaging Depth | 0,210 m |
| Packaging Volume | 0,001 m3 |
| Net Weight | 0,228 kg |
| Tara Weight | 0,072 kg |
| Total Weight | 0,300 kg |
