Optical TV, 1 Way 10.9dB Passive Tap, F813000, 1090 FC/PC
Item Code : F813000
Product Details
Optical Fibre TV - Passive Optical Tap
Global Invacom - Optical TV, 1 Way 10.9dB Passive Tap, F813000, 1090 FC/PC
Item Code: F813000
Brand: Global Invacom
Manufacturer: Global Invacom
Description
F813000
The Global Invacom fibre optical passive Tap/Coupler unit. Will enable a passive optical networks (PON) in virtually any size and split ratio. Using taps in association with splitters in a combination design to create a passive optical network to meet and satisfy almost any requirement.

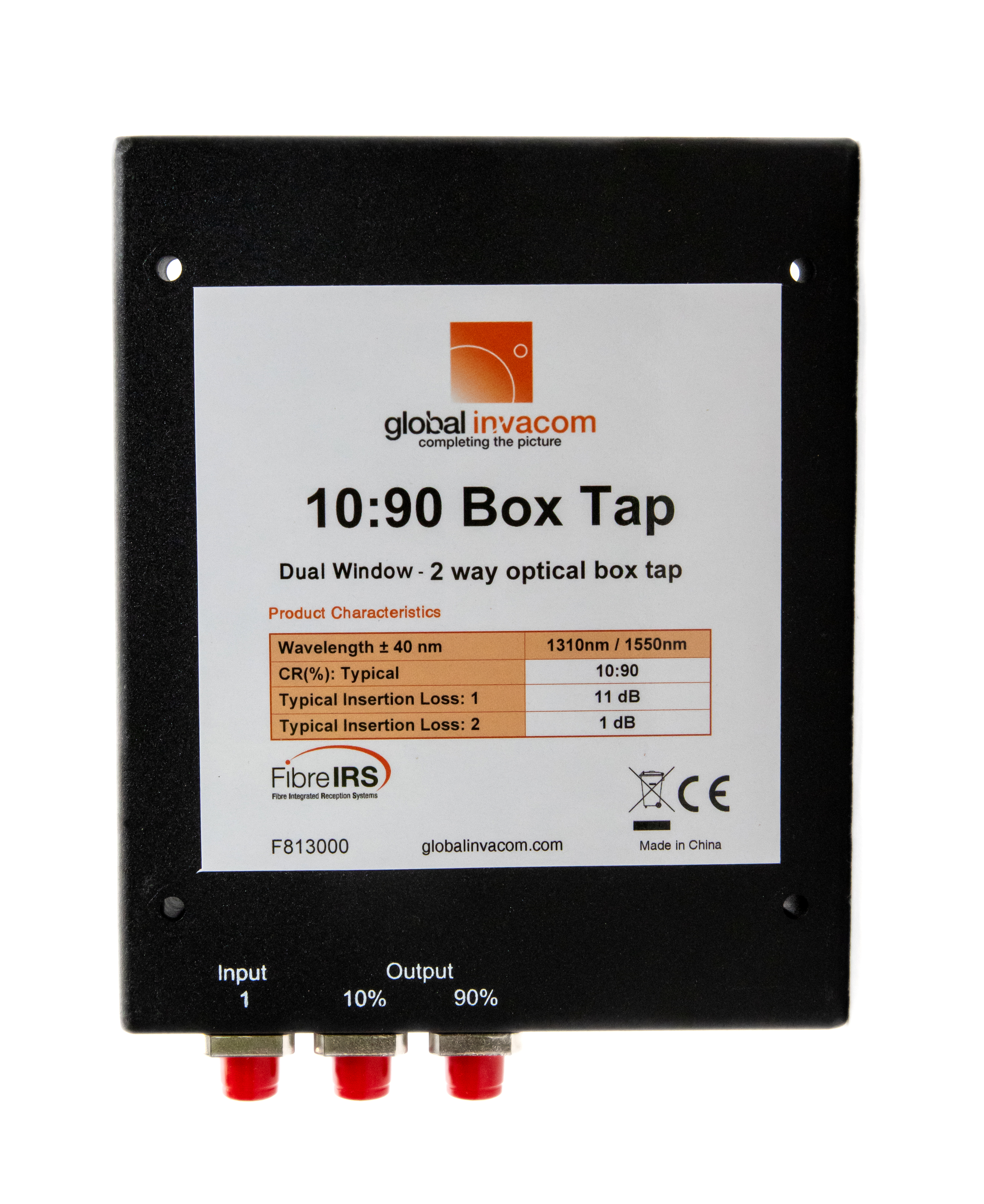

F813000 is an unbalanced 10.9/0.9dB coupler with FC/PC connectors in a valid metal sheet housing.
Specification
| Technical Specifications | ||||
|---|---|---|---|---|
| Product Part No. | 10:90 box tap | F813000 | ||
| Common specification | Operating Wavelength | 1310-1550nm +-40 | ||
| Thermal Stability | <= 0.1dB | |||
| Directivity | >= 55dB | |||
| Insertion loss Port 1 | 10.0 - 11.2dB | |||
| Insertion loss Port 2 | 1.0 - 1.2dB | |||
| Environmental specification | Operating temperature | -40 to 80 °C | ||
| Connectors | Input / Output | FC/PC | ||
| Dimensions | Size | 148 x 115 x 21 mm | ||
