Optical TV, 8 Way Passive Splitter, TOS 08F, 8-way FC/PC

Item Code : TOS 08F, 8-way FC/PC



Product Details

Triax™   Optical Fibre TV - Passive Optical Splitter

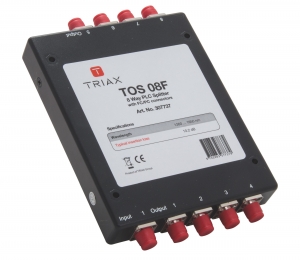

Triax - Optical TV, 8 Way Passive Splitter, TOS 08F, 8-way FC/PC

Item Code: TOS 08F, 8-way FC/PC

Brand: Triax

Manufacturer: Triax


Description

TOS 08F, 8-way PLC Splitter FC/PC

The balanced coupler is implemented in a valid metal housing

Features

  • pre-assembled with FC/PC connectors
  • PLC (Planar Lightwave Circuit) couplers with a wide window of wave lengths
  • Low and flat insertion loss

Specification

ORDER INFORMATION
EAN Number 5702663077379
CHARACTERISTICS
Type OPTO Coupler balanced
Coupling Ratio (OPTO) 8x 12.5 %
Wavelength 1260...1650 nm
LOSS
Insertion loss (typ.) 10.2 dB
CONNECTORS
Connector Type Optical - FC/PC
Number of inputs 1
Number of outputs 8
MECHANICAL
Dimensions product (H x D x W) 150x20x114 mm
Packing QTY 1
Packaging Height 0,045 m
Packaging Width 0,153 m
Packaging Depth 0,213 m
Packaging Volume 0,001 m3
Net Weight 0,286 kg
Tara Weight 0,064 kg
Total Weight 0,350 kg
