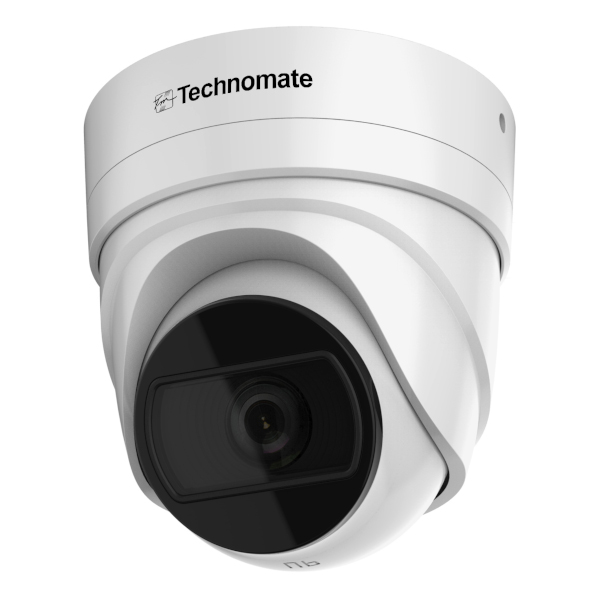

IP Camera 8MP 2.8-12mm Motor Lens , TM-803 MOT IP

Item Code : TM-803 E MOT IP



Product Details

Technomate™   8 Mega Pixel - IP Camera

Technomate - IP Camera 8MP 2.8-12mm Motor Lens , TM-803 MOT IP

Item Code: TM-803 E MOT IP

Brand: Technomate

Manufacturer: JW Hardy Selected Item

.

Description

The TM-803 E MOT IP is a groundbreaking, flagship 8MP UHD Ultra High Definition camera that provides incredible super UHD image quality to give amazing crystal clear images that accurately capture every aspect and detail of any scene at a resolution that is four times more than 1080p Full HD.

With a 2.8-12mm motorised lens, you can remotely adjust the zoom up to 4X. Once you zoom to a point, the lens will automatically adjust the focus to see the image perfectly. Compared to a manual varifocal lens where you have to manually adjust the zoom and focus on the camera itself, this advanced motorised lens makes installations much quicker and easier as well as having the opportunity to readjust the zoom from your phone, PC or NVR, giving you true flexibility of the camera's viewing angle.

With advanced best-in-class 120dB WDR (Wide Dynamic Range) this camera is ideal for challenging light environments such as store entrances and windowed areas where, for example, it may be difficult to see a person's face on a standard camera.

Using the latest SMT (Surface Mounted Technology) Infra-Red LED which give up to 30% more illumination than previous generation LED technologies, night vision is now much clearer, allowing you to see every detail. Furthermore, by having two LEDs to allow you to see up to 50m in darkness compared to 48 IR LEDs of previous generation models, the camera will be visibly less intrusive at night, produce less heat and save on running electricity costs.

Maintaining the perfect 16:9 ratio, images are displayed in the perfect HD widescreen resolution.

Developing upon H.265, Technomate's H.265+ technology reduces the file size of the camera's video stream up to 80%, consequently saving up to 80% network bandwidth and up to 80% video storage space, compared to H.264 and by up to 50% compared to H.265.

By using a Technomate H.265+ compatible NVR (Network Video Recorder), the 8MP camera can effectively take up to the same bandwidth and storage space as a 1MP camera, therefore saving on bandwidth and storage costs. Therefore for 1 month's recording at 24/7, you would only need around 0.6TB per camera compared to 1TB with H.265 and 2TB with H.264 (depending on scene). And what's more, the picture quality will be exactly the same as H.264 and H.265 with no loss.

The superior anti-noise technology gives you a clearer, noise-free image in low-light conditions whilst also drastically reduces storage space and transmission size. Coupled with 3D-DNR (3D Digital Noise Reduction), noise is further suppressed. These powerful technologies perform a pixel-by-pixel audit of the pictures which check for any anomalies, thereby rectifying them giving a fantastic Signal-to-Noise Ratio (S/N Ratio). An example below shows the affect that noise can have on an image.

A disadvantage for a camera which is used indoors/outdoors is that it may lose the natural day colour as it will pick up the IR emitted from the Sun or from different light temperatures. As a result, we've developed a mechanical IR-Cut Filter (ICR) which filters out the infra-red daylight to give you a natural daylight colour. When the illumination lowers, the ICR will automatically open allowing more light to enter so that you have a clearer image at night.

The high quality infra-red IR LEDs eliminate IR saturation which most cameras suffer from. To enhance this further, we have developed an advanced Smart IR technology to further reduce saturation as seen above. The IR LEDs allow the camera to be used in total darkness up to a range of 30m.

Enclosed in the highest rated IK10 Vandal Resistant and weatherproof IP67 housing, the camera can be used indoors or outdoors. Being IK10 rated makes the camera highly resistant to impact, such as from a hammer.

The 3-Axis gimbal allows the camera to be moved in any direction, making installations simple and easy. The camera can also be wall or ceiling mounted.

The 3-Axis gimbal allows the camera to be moved in any direction, making installations simple and easy. The camera can also be wall or ceiling mounted.

Features

  • 1/2.5" 8MP CMOS
  • 3840 × 2160 20fps, 25fps: (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • 120dB WDR (Wide Dynamic Range)
  • 2.8-12mm Motorised DC Auto-Iris Lens
  • Auto-IR Cut
  • Minimum Illumination: 0 Lux with IR, Colour: 0.01 lux @(F1.2, AGC ON)
  • Up to 30m Night Vision Range
  • Storage supported: microSD/SDHC/SDXC card (128GB) local storage, NAS (NFS,SMB/CIFS), ANR
  • Smart IR
  • Audio: 1 input (line in, 3.5 mm), 1 output (3.5 mm), single track
  • Triple Stream
  • 9:16 Corridor Format
  • ROI (Region Of Interest)
  • H.265+, H.265, H.264 & MJPEG Video Compression
  • 3D-Digital Noise Reduction (3D-DNR)
  • Privacy Mask
  • ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
  • Protocols supported: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
  • IP67, IK10
  • 12 VDC ± 25%, 11 W or PoE(802.3af, 42.5 – 57V, class 3), 12.5 W
  • Dimensions: 135.8 × 145.5 mm
