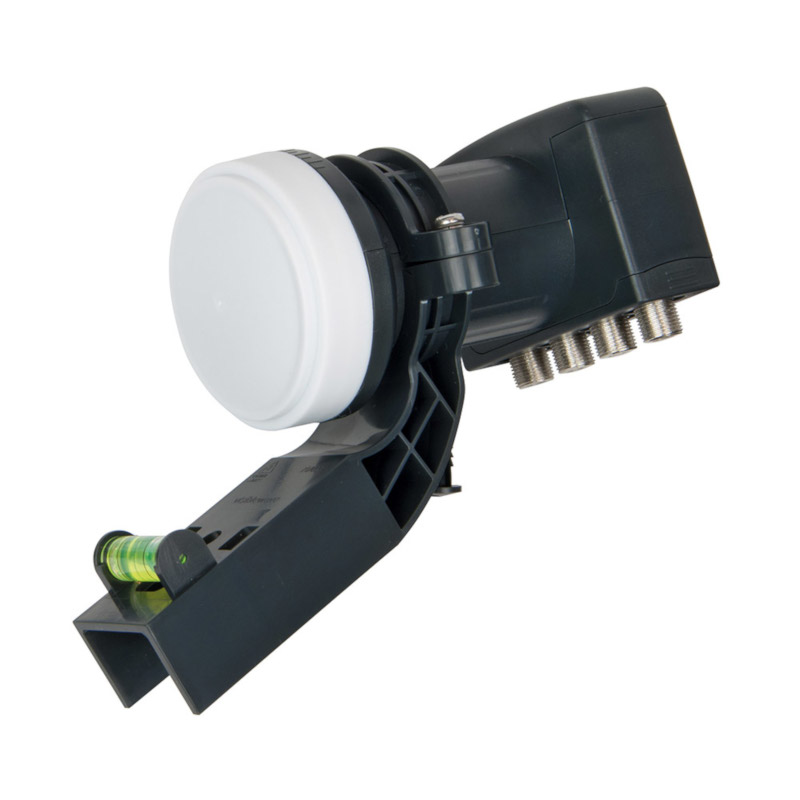

SKY +® FREESAT® - Universal Quad LNB
Item Code : VK4L
Specification
| VK4L | |
|
Input frequency |
Low band: 10.7~11.7GHz |
|
High band: 11.7~12.75GHz |
|
|
Output frequency |
Low band: 950~1950MHz |
|
High band: 1100~2150MHz |
|
|
L.O. frequencies |
9.75/10.6GHz |
|
Noise gure |
0.5dB (Typ) |
|
Conversion gain |
55dB (min)/65dB (max) |
|
Gain atness |
0.75dB (min)/26MHz (max) |
|
Cross polar isolation |
25dB (Typ) |
|
Image rejection |
40dB (min) |
|
Operating temperature |
-30°C~ +60°C |
|
L.O. stability |
+/- 1.0MHz @ 25°C |
|
+/- 3.0MHz @ -30°C~ +60°C |
|
|
Phase noise |
-50dBc/hz @ 1kHz |
|
-75dBc/hz @ 10kHz |
|
|
95dBc/hz @ 100kHz |
|
|
Power consumption |
200mA (max) |
|
RED compliance |
EN 303 372-1 |
