SKY Q® - Wideband LNB

Item Code : VW2L



Product Details

visiblewave™   LNB

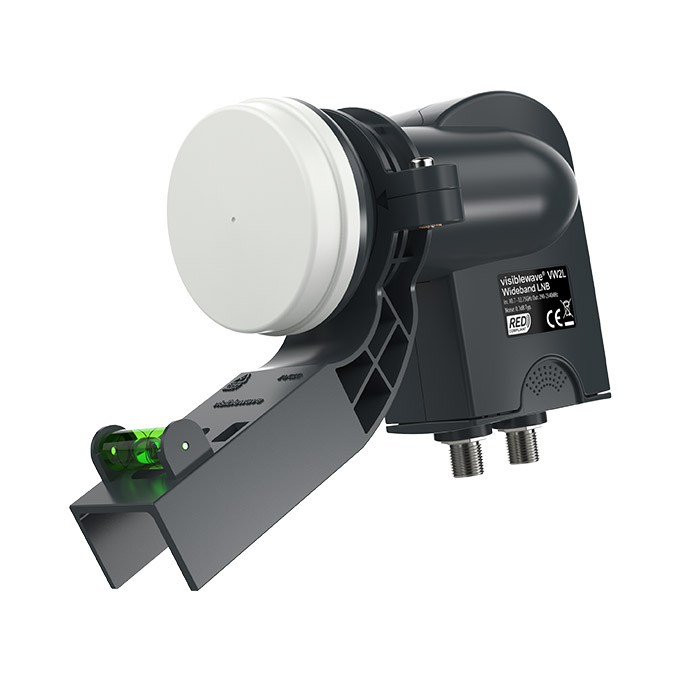

visiblewave - SKY Q® - Wideband LNB

Item Code: VW2L

Brand: visiblewave

VW2L

Features

  • Wideband LNB
  • 2 Output
  • Finished in grey
  • Supplied with a Sky&trad; compatible bracket
  • Built-in spirit level

Specification

Technical Specification

Input Frequency

10.7 ~ 12.75 GHz

Output frequency

Vertical: 290 ~ 2340 MHz

Horizontal: 290 ~ 2340 MHz

L.O. frequencies

10.41 GHz

L.O. Stability

+/-0.5 MHz (max) @ Room Temp.

+/-1 MHz (max) @ -40°C ~ +60°C

L.O. Phase Noise

-50dBc/Hz @ 1kHz (max.)

-75dBc/Hz @ 10kHz (max.)

-100dBc/Hz @ 100kHz (max.)

Noise Figure

0.1 dB (typ.)

Conversion Gain

50 dB (min) / 60 dB (max)

Gain Flatness @ 26MHz

+/-0.5dB (typ.)

Gain Variation

7dB (max.) @ full band

Cross Polar Isolation

25 dB (typ.)

Image Rejection

40 dB (min)

Current Consumption

0.85W (max.) (70mA @ +12V DC)

Power Voltage

9 – 19V DC

Connector Type

75 female F-connector

Output Spurious

<-60dBm

Operating Temp.

-40’C ~ +60’C

RED Compliance

EN 303 372-1
